University project | 5 weeks | Sem 5
Human Machine interaction
Immersion
Ideation
Solution
Design Brief:
Design a solution that facilitates an easier human machine interaction between people of 40+ age group and a smart television.

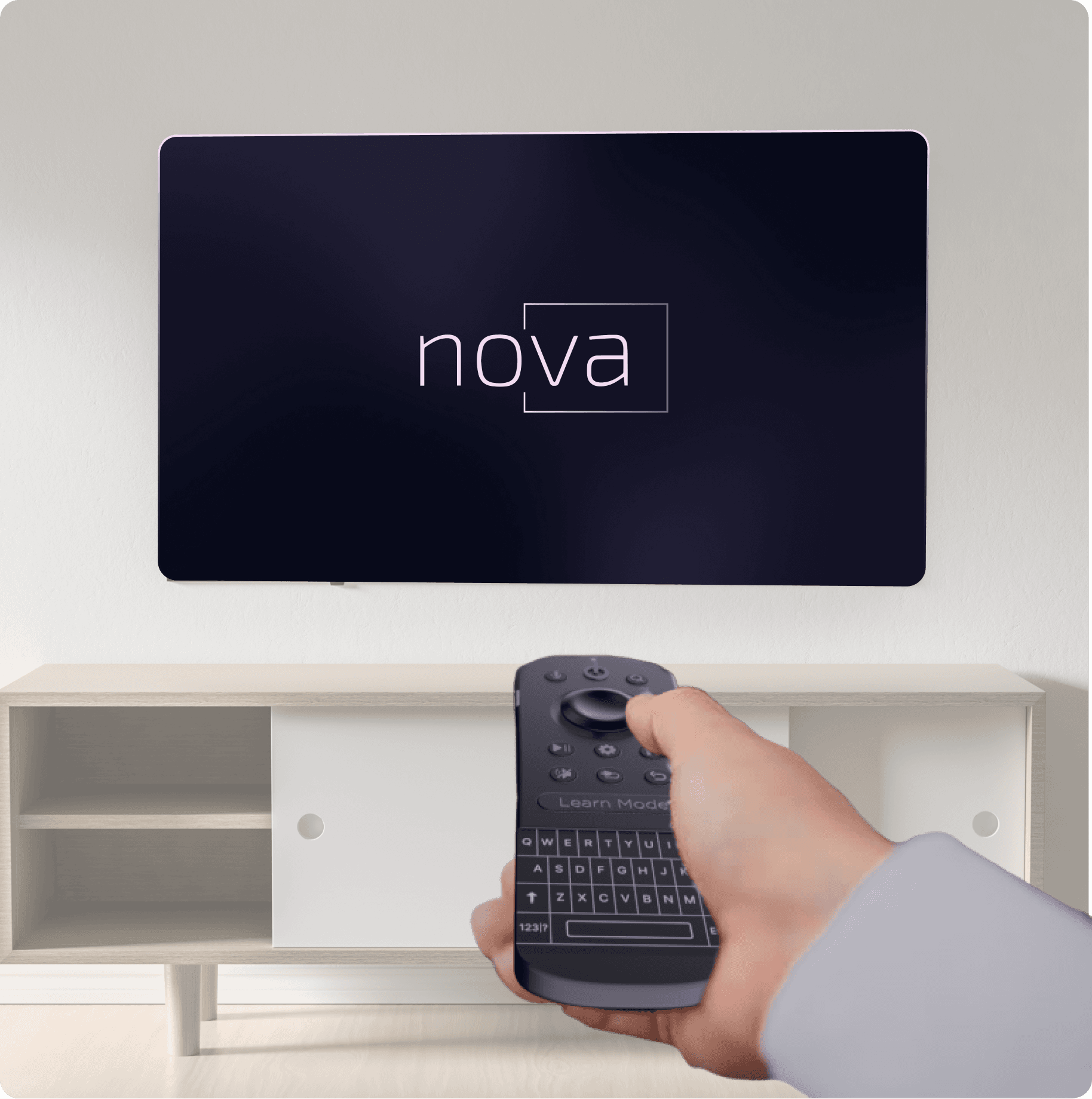

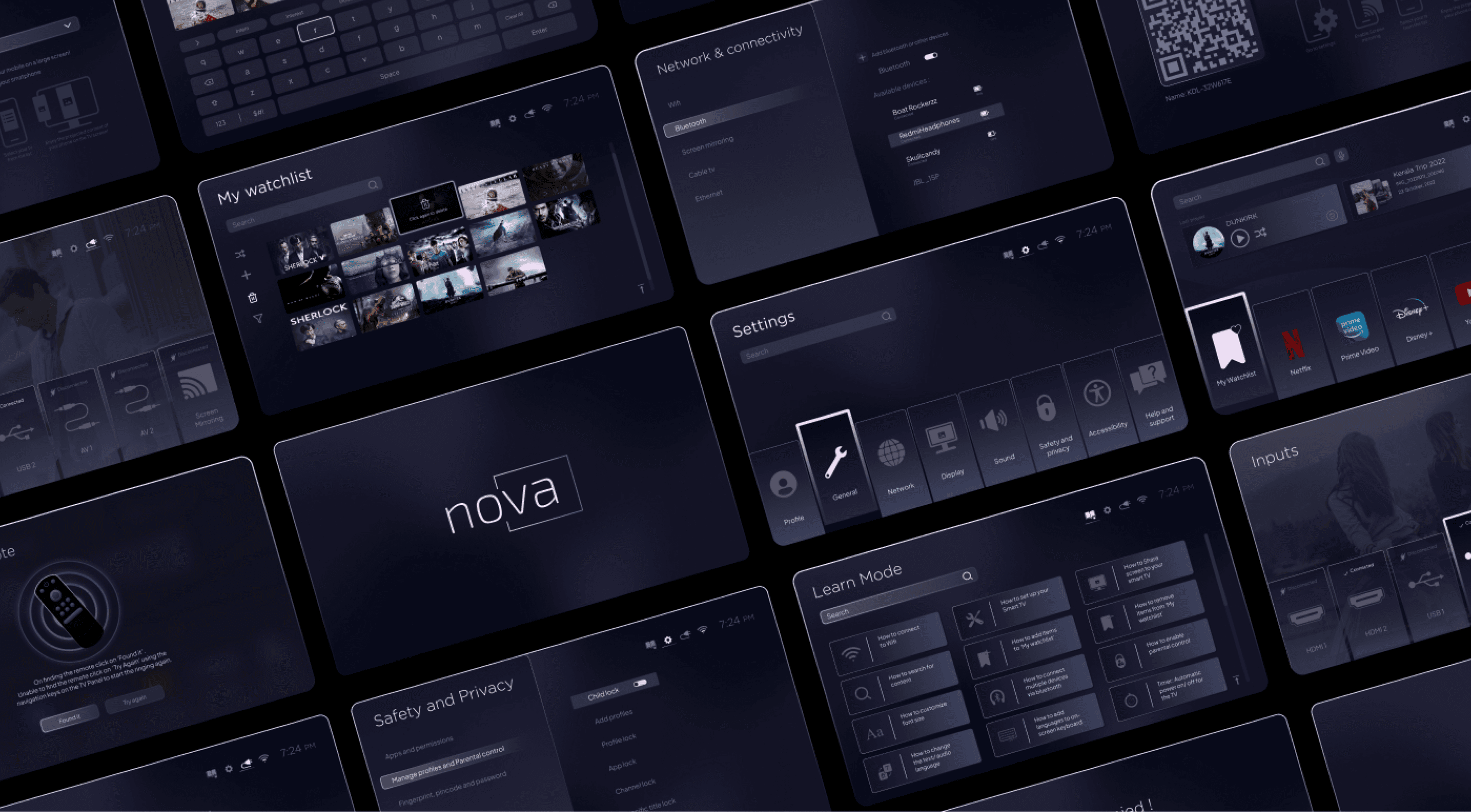

The easiest smart television! - Nova

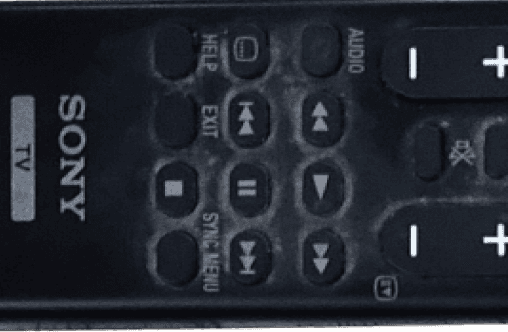

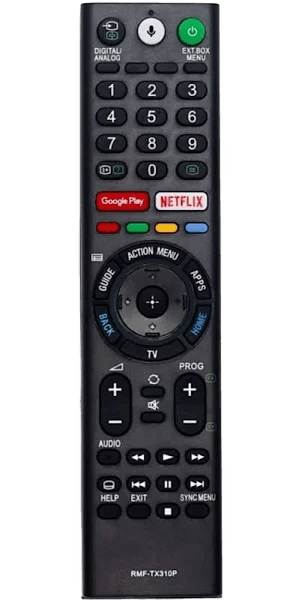

Most used
Moderately used
Least used

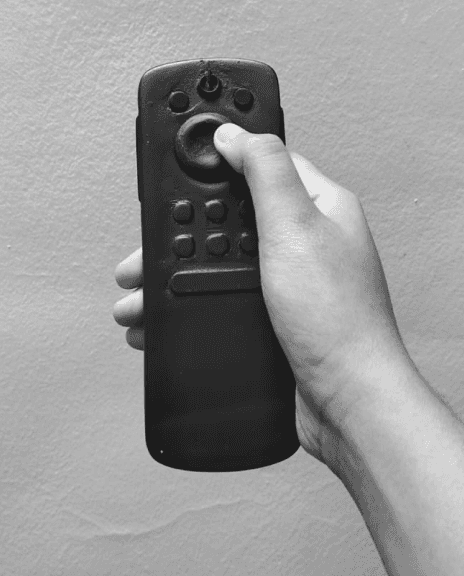

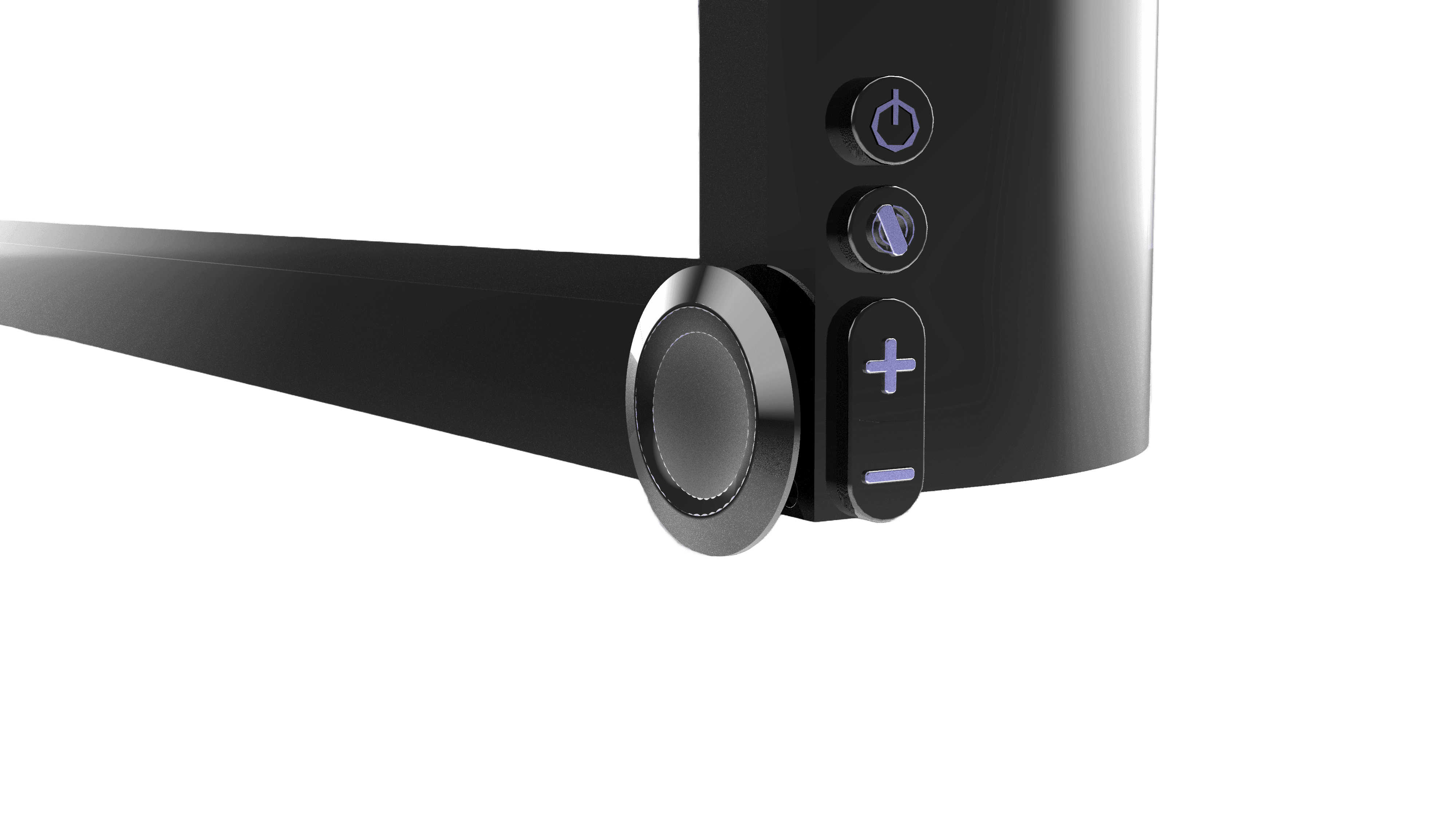

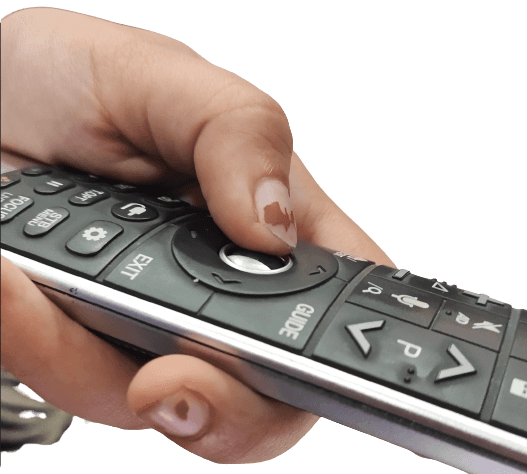

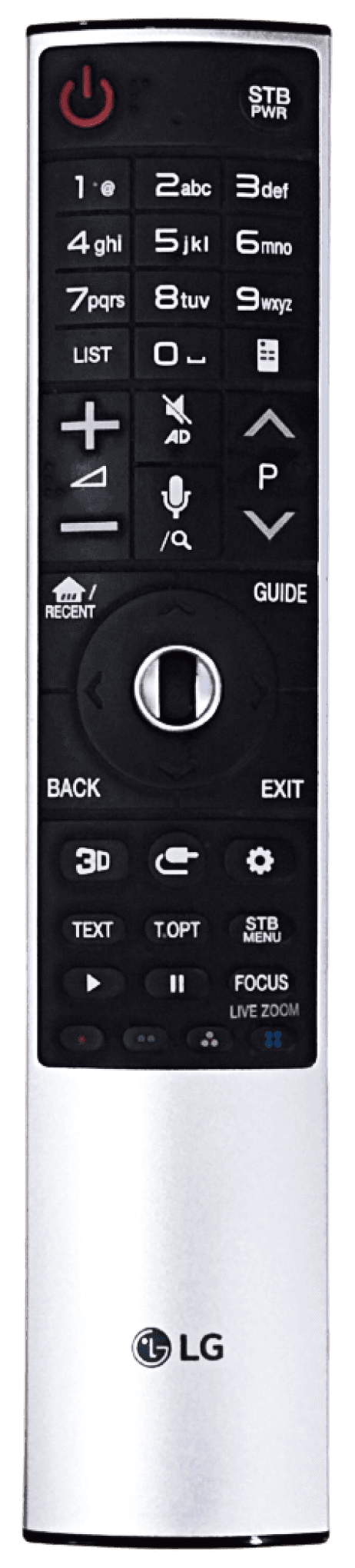

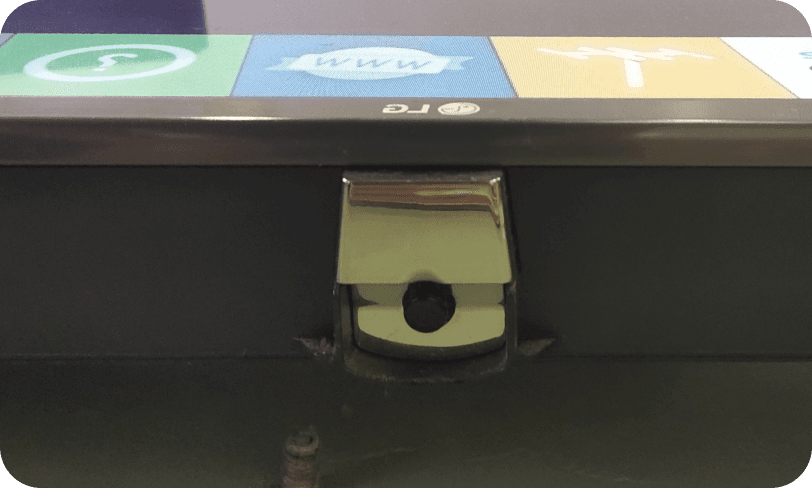

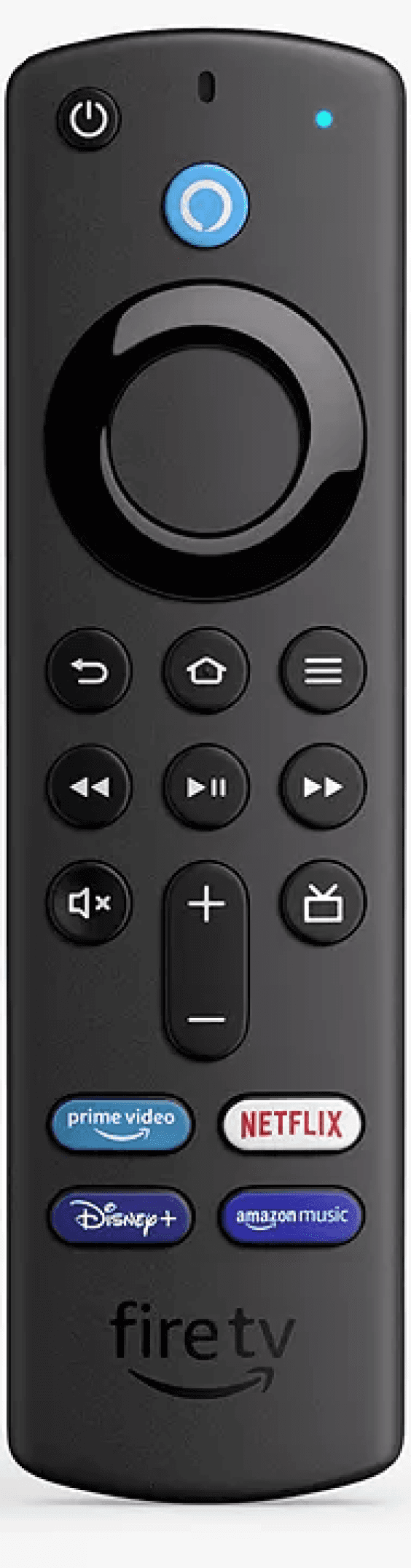

Joy stick remote under the TV
Extruded
buttons
Engraved
icons
Scroll/ press
button

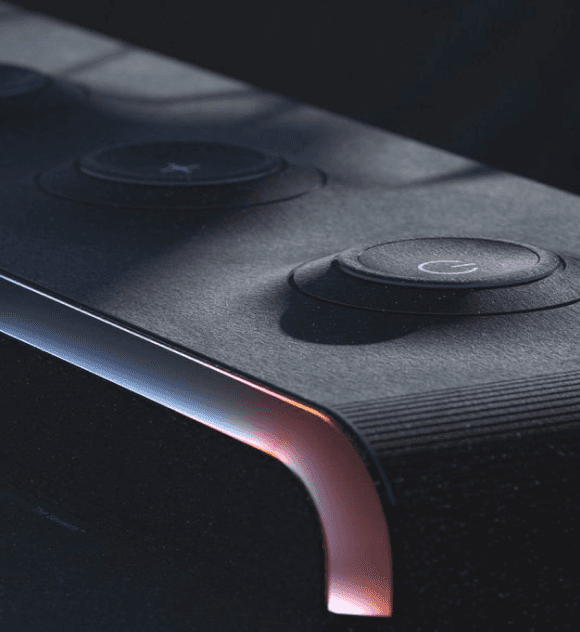

On-surface
buttons
Scroll/ press
Visual feedback
Compact form
for convinience

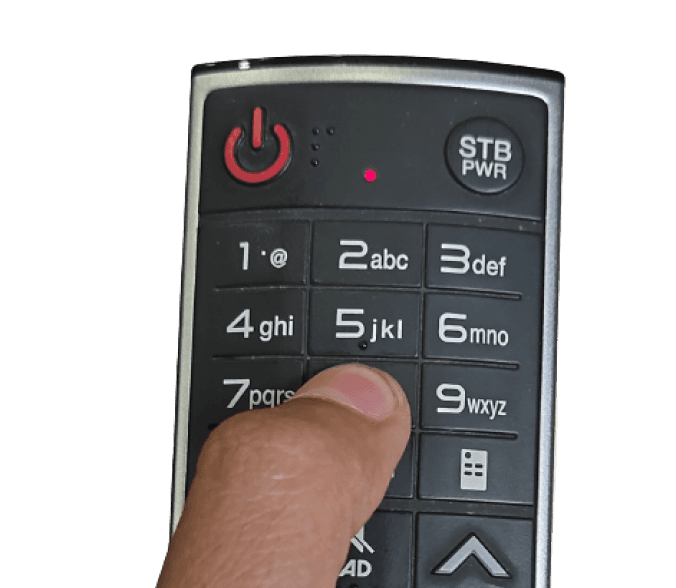

Tangible Interaction Insights
Moderately used

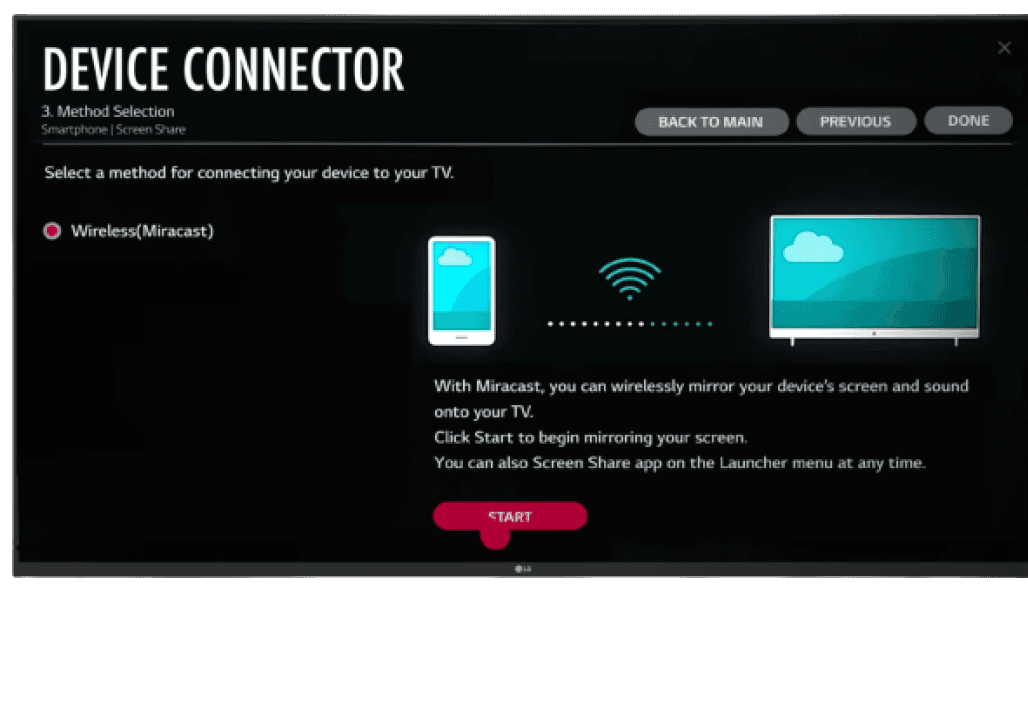

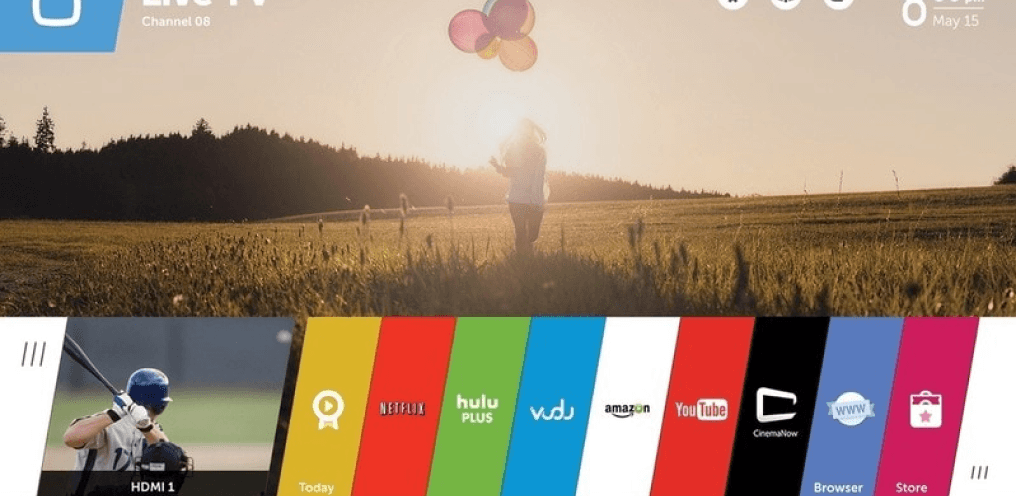

Interface Interaction Insights

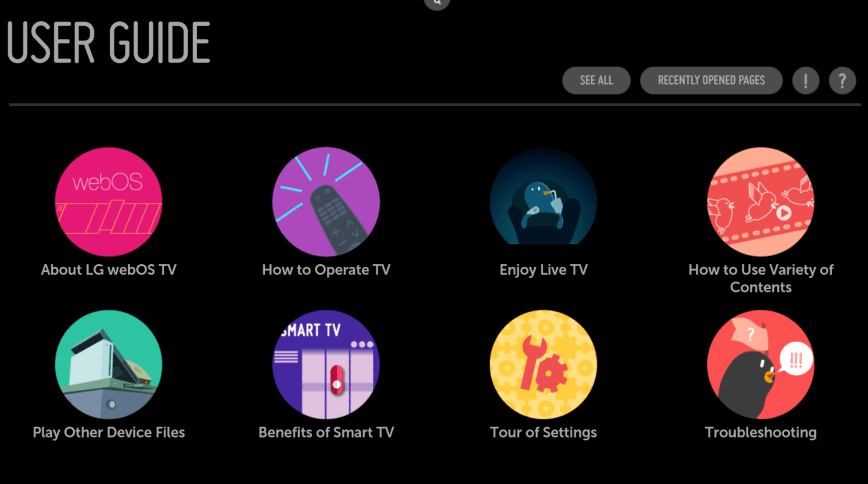

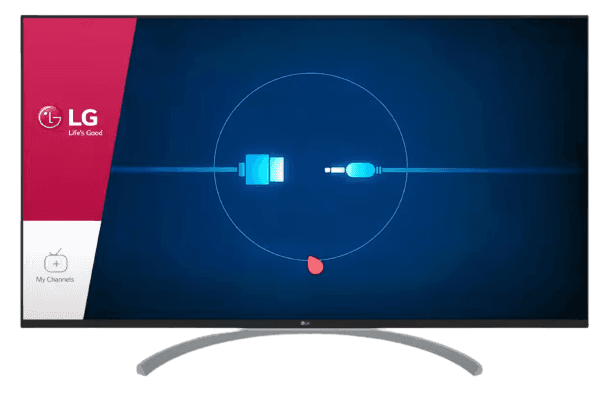

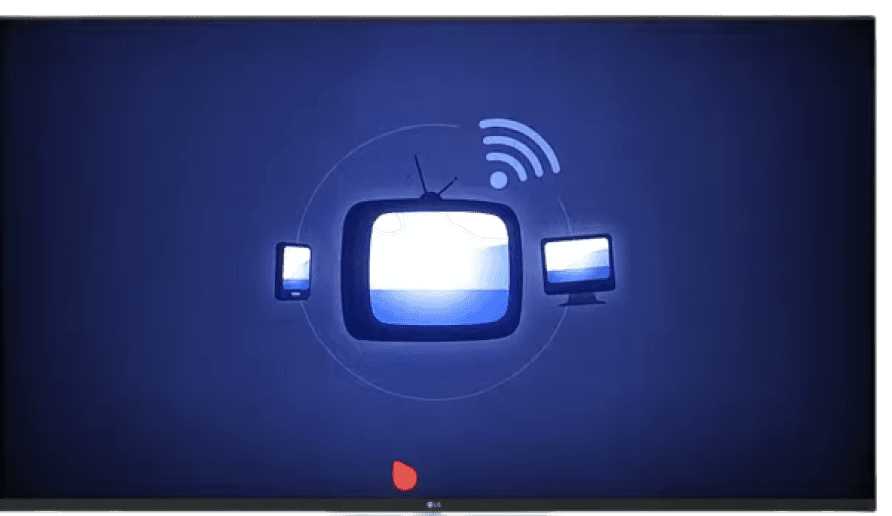

Misleading illustration. Makes the user feel like they are expected to perform an action, when they do not.
Inconsistency in the styles of Illustrations on various screens.
Childish Appearance.
There is no fixed color palette for the interface.
Differences can be observed in the palette used for different screens.
The illustrations are not relevant to the task expected to be performed and are hard to understand.

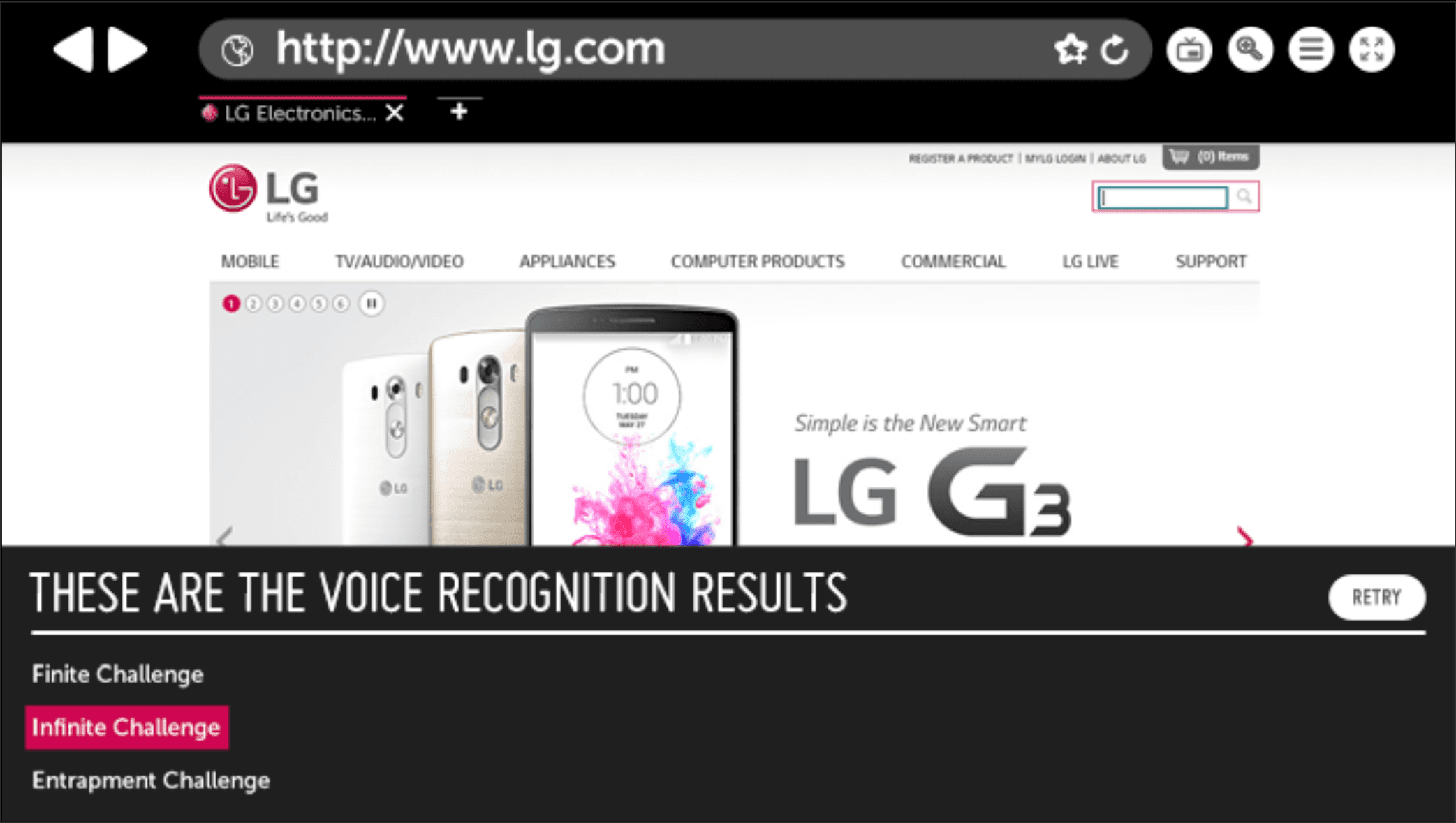

Lack of hierarchy in the web browser. The user does not know where to focus.
Certain custom icons are difficult to understand since the user cannot relate to them visually, and there is no supporting text either.
Digression from the standard terminologies and use of custom terms makes it difficult for the user to understand.

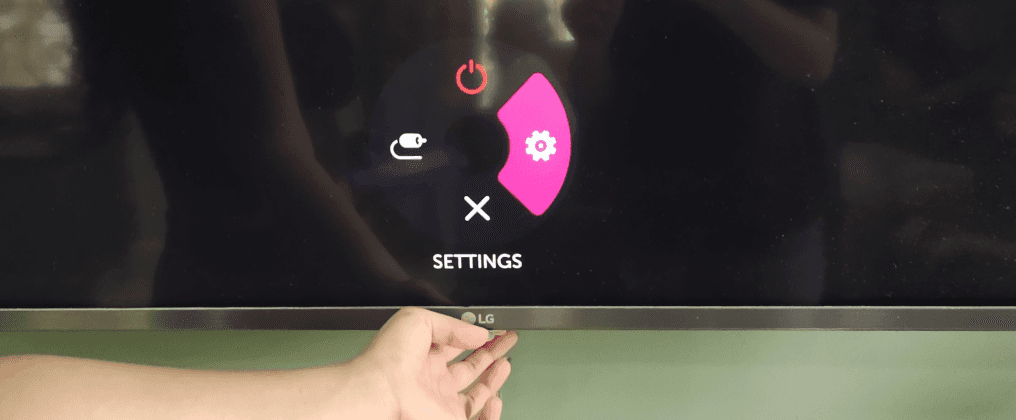

The joystick remote is hidden and hard to find.
16 users

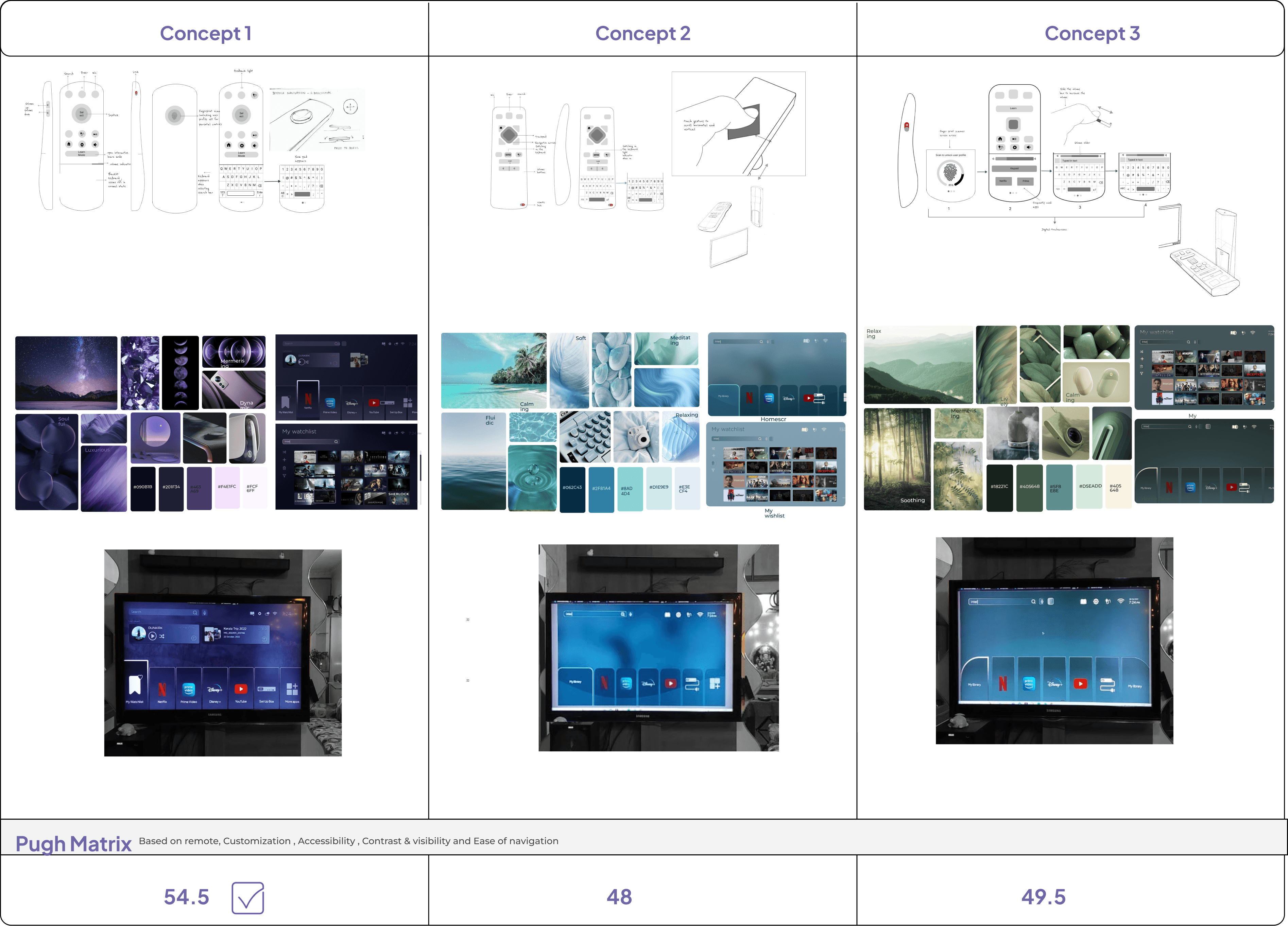

13 Product prototypes
6 UI prototypes
User testing for refinement!
#FCF6FF
#F4E1FC
#463A69
#201F34
#090B1B
Dynamic
Soulful
Energising
Luxurious
Mermerising
Gotham
Light
Bold
Style guide
( Titles - 70 px
|
Subtitles - 30 px)
Plus Jakarta Sans
Regular
Body - 18 px)
|
( Subtitles - 30 px
Icons

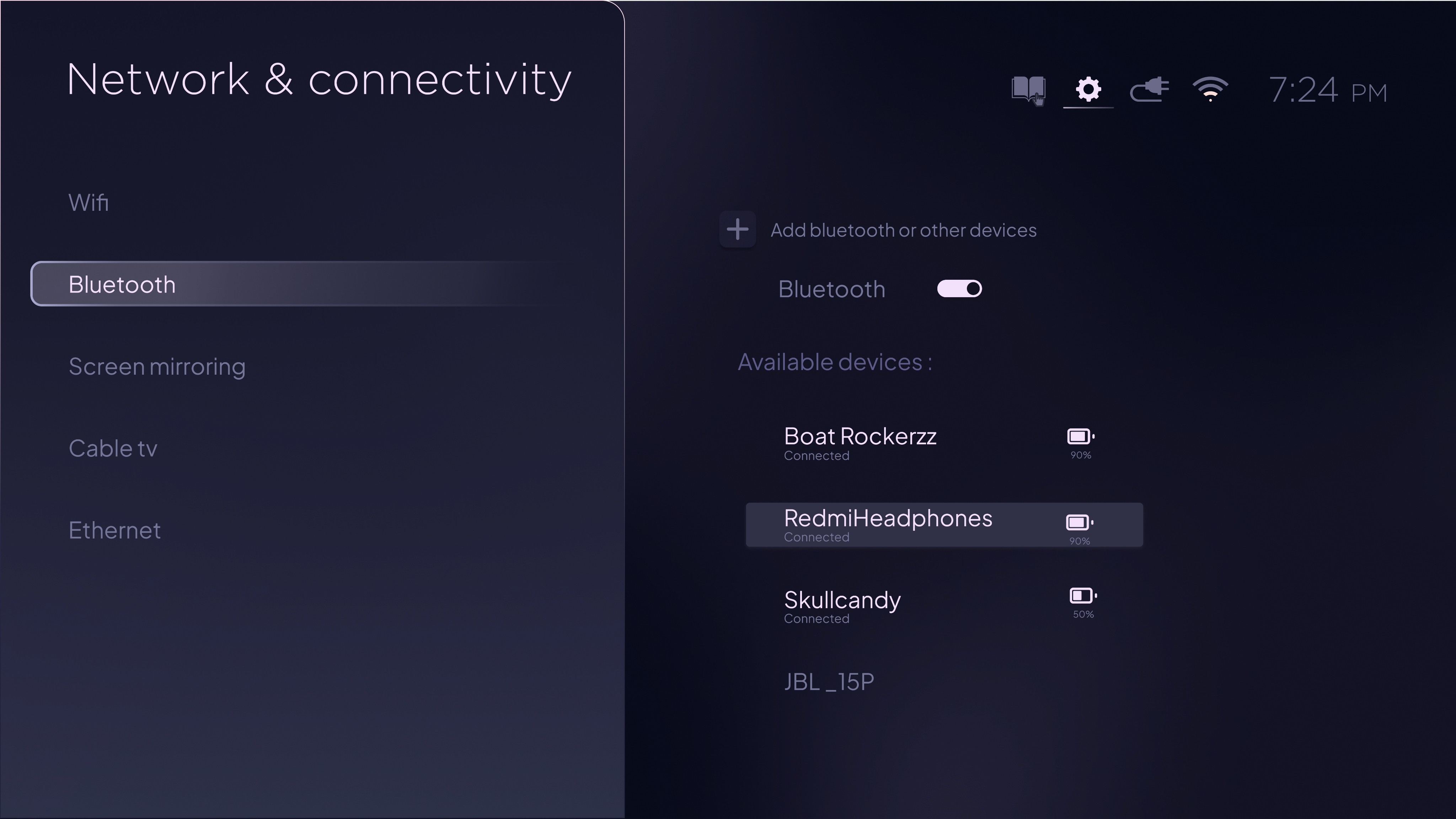

Multiple Bluetooth devices
The user can connect bluetooth devices upto 4 at once to avoid causing disturbance in the environment at night or otherwise.

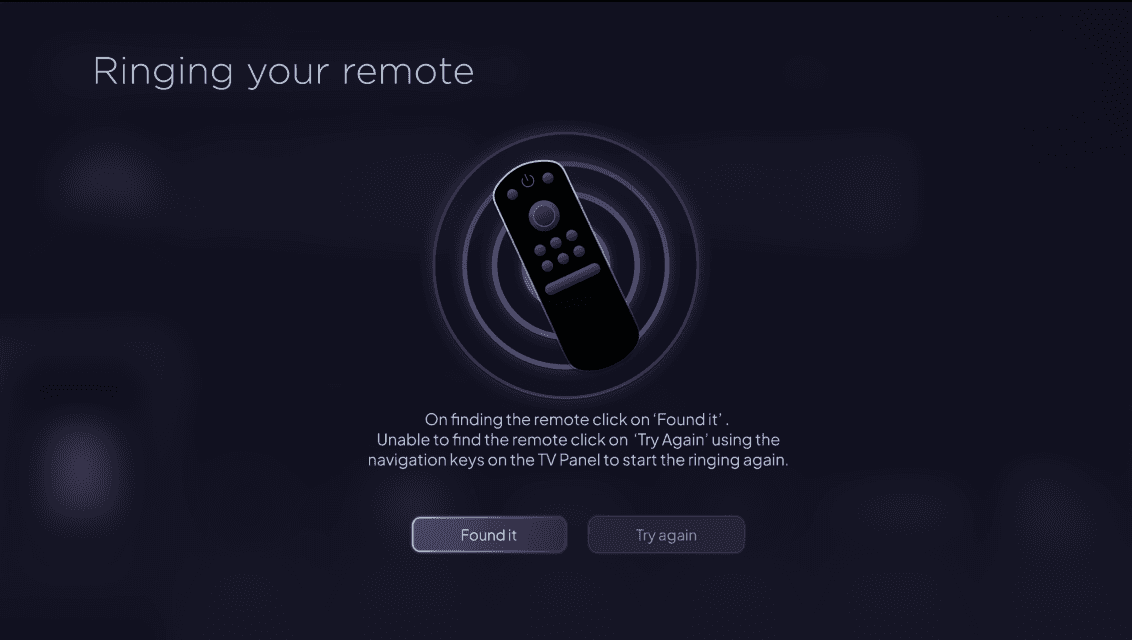

The tv has a button, which when pressed, initiates the process of locating the remote. The remote rings for 20 seconds.
Locating the remote
Features

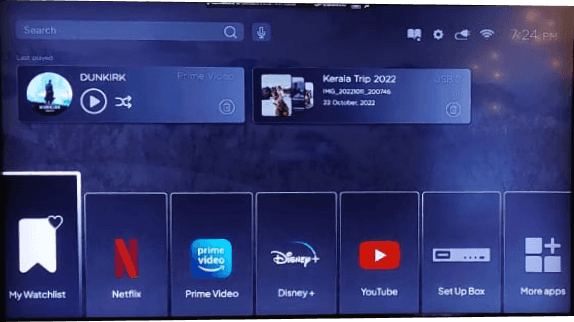

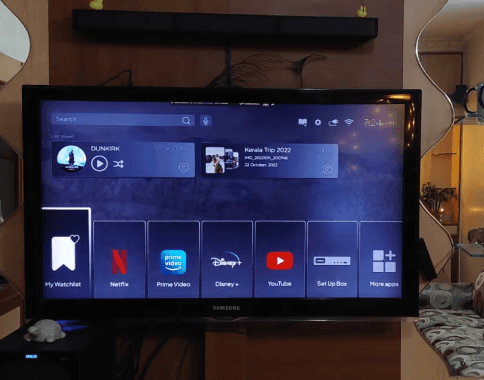

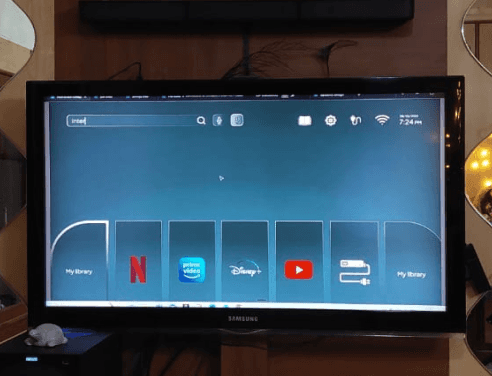

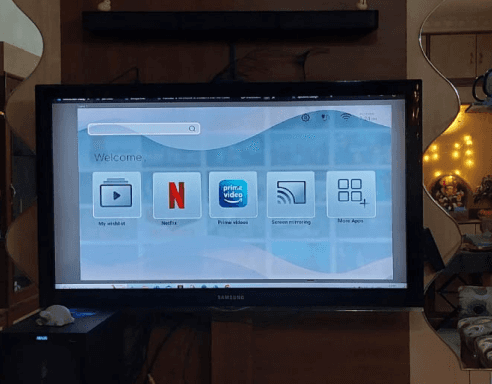

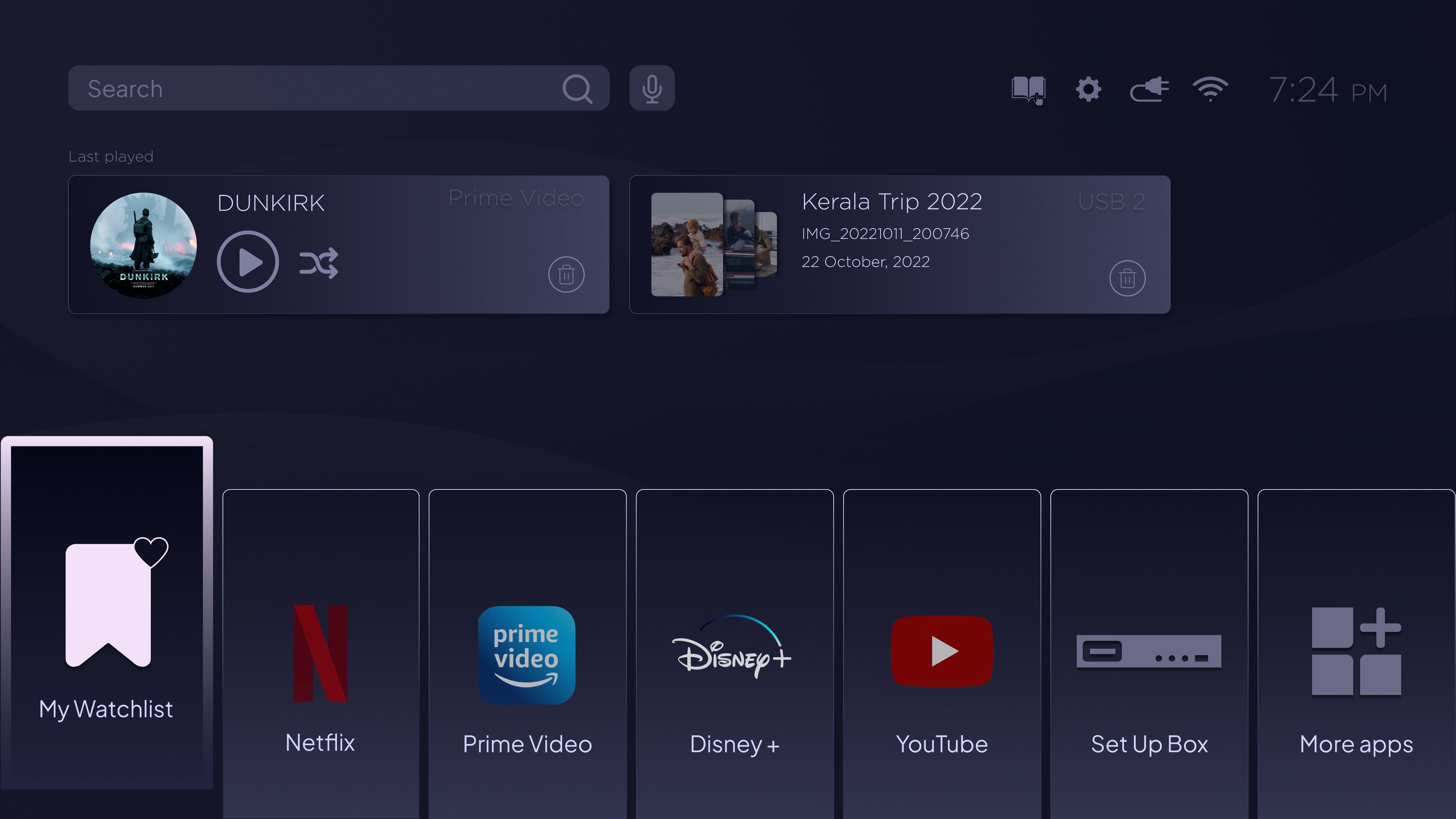

Home screen
Widgets on home screen
Skip the intermediary steps
Access the last viewed content

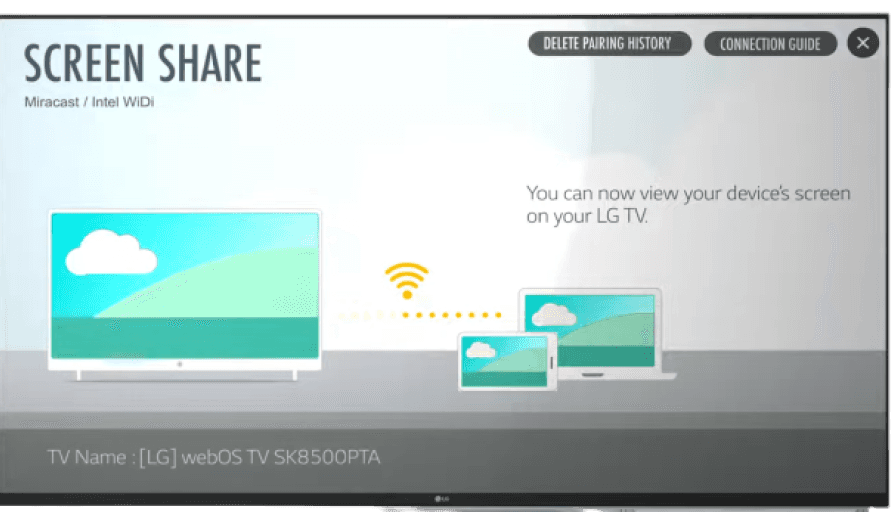

Screen mirroring
QR code on TV
When scanned, mirrors the screen

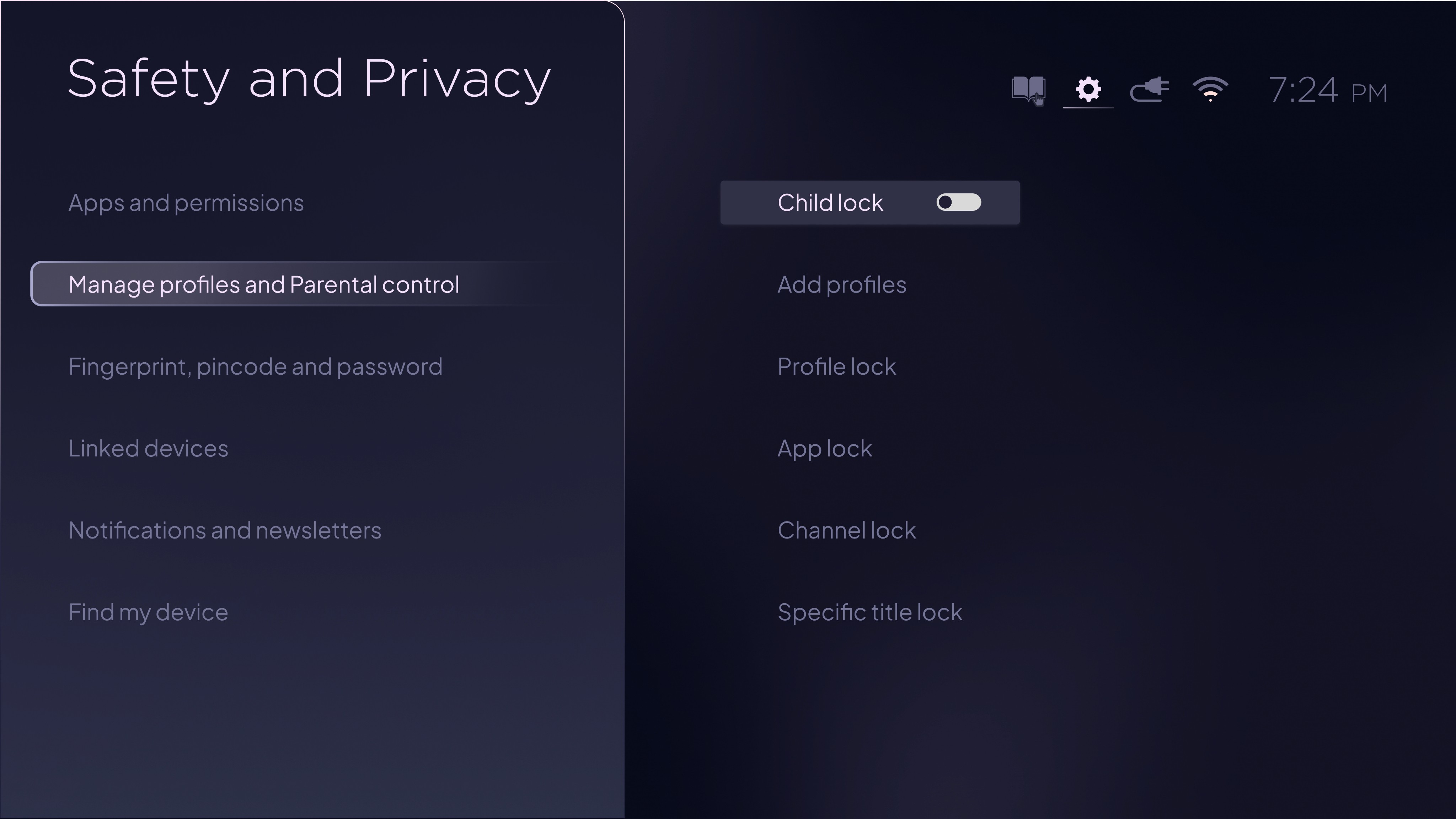

Parental Control
Parents can reduce the risk of children encountering inappropriate content.

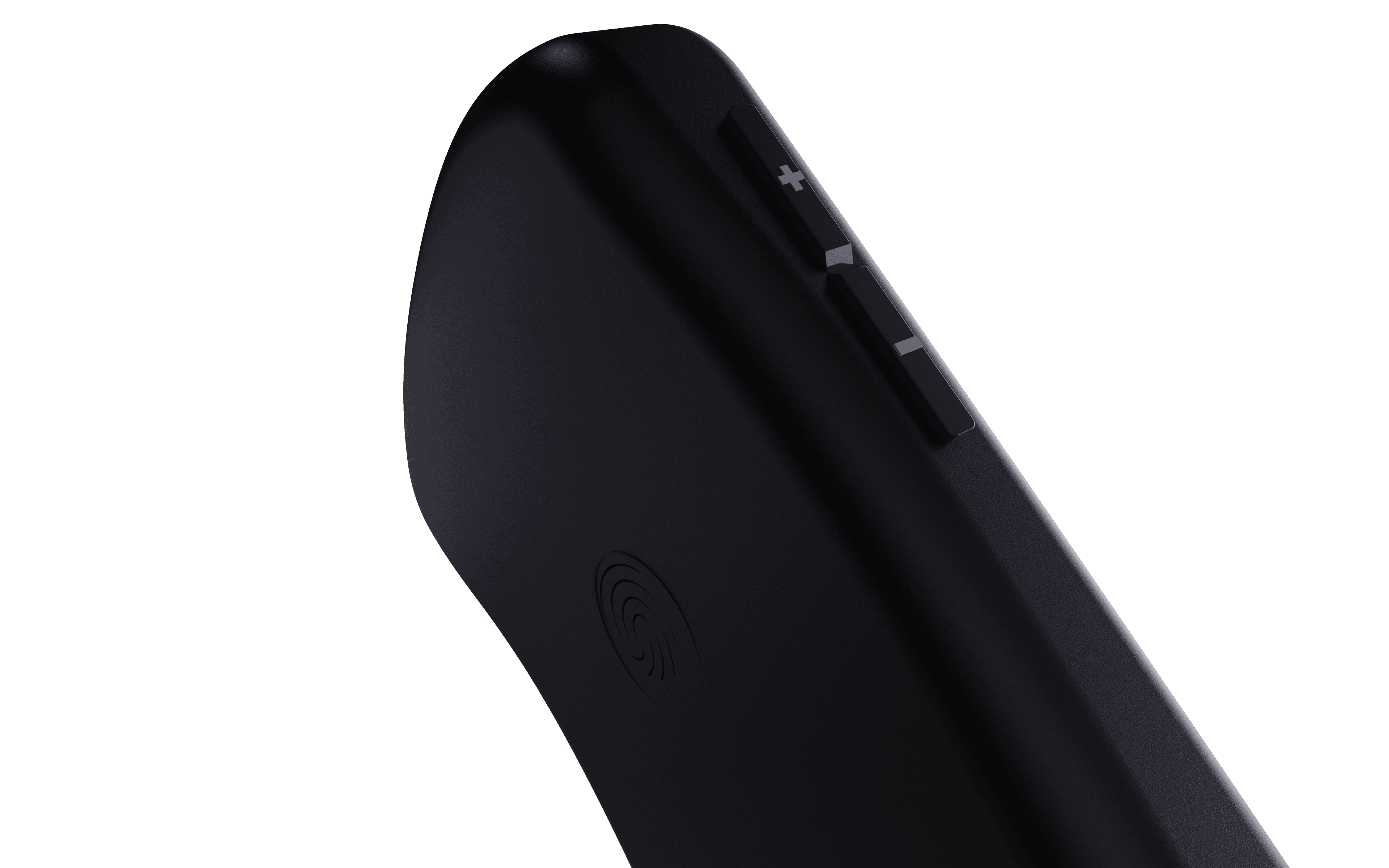

Fingerprint scanner embedded on the remote.
It’s a platform for curating a personalised playlist of movies and shows to watch later or rewatch .

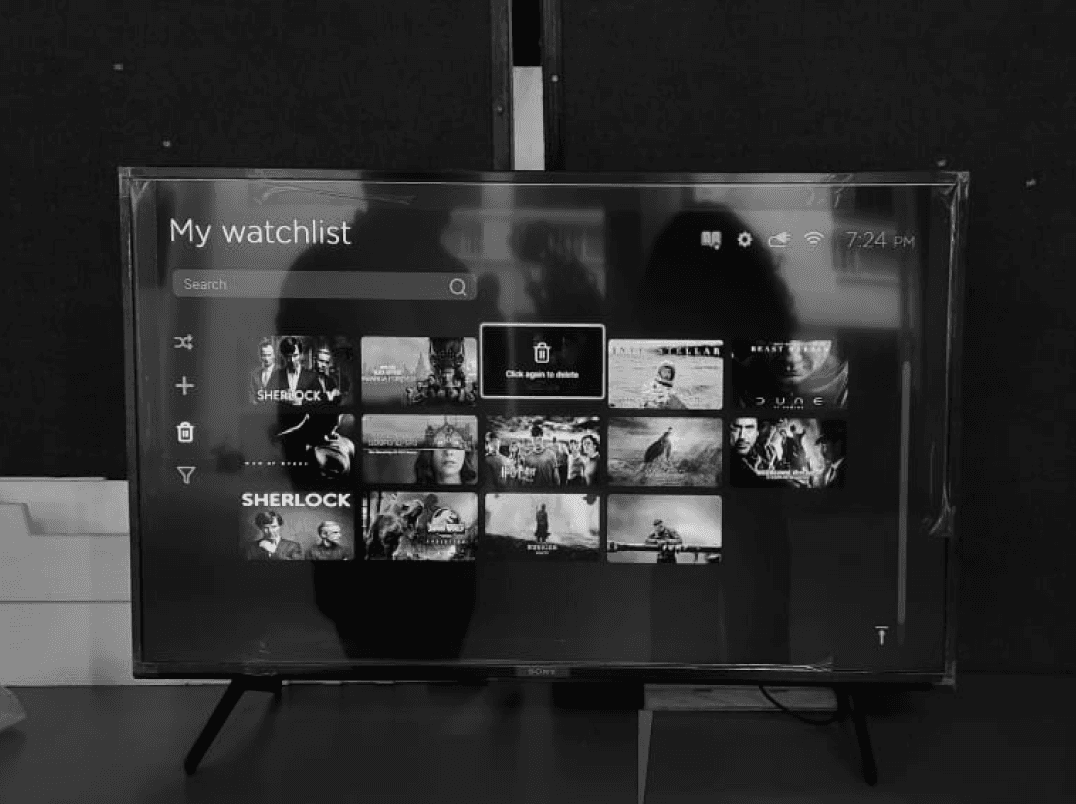

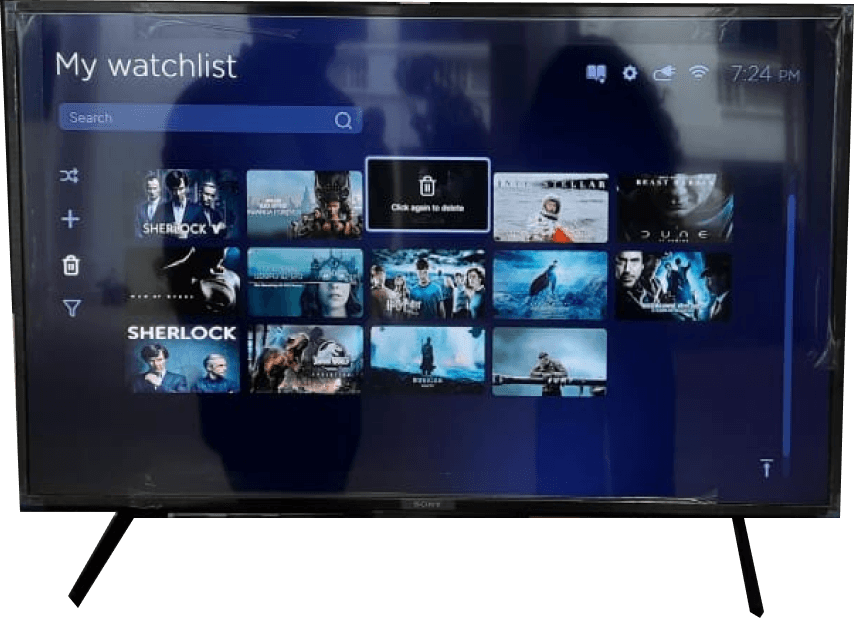

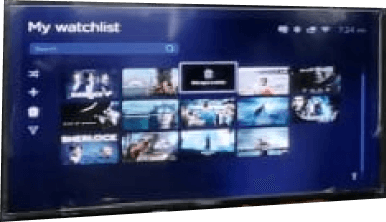

My watchlist

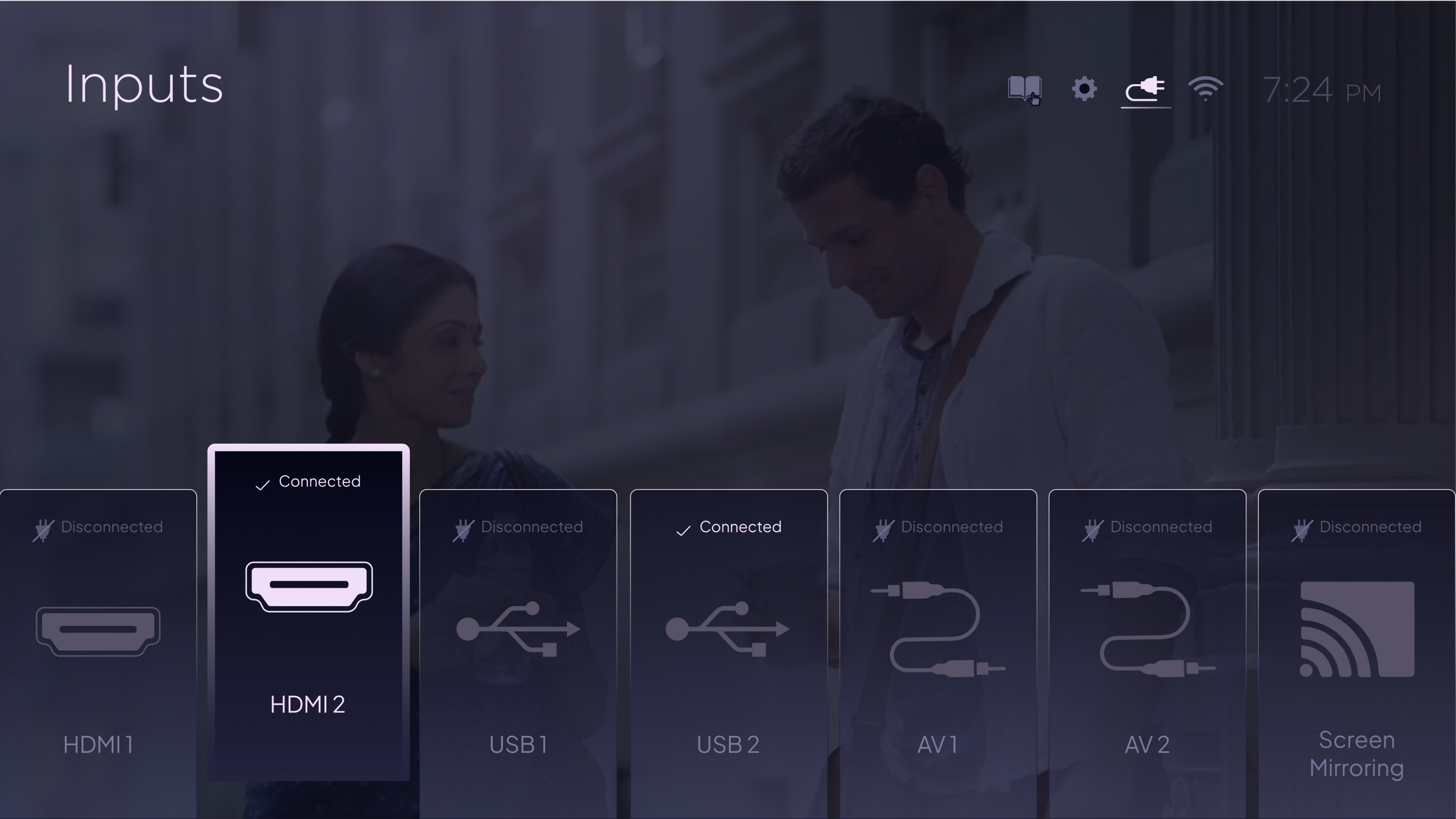

Input Preview
Confusion about which input has been logged into is solved by a background image of connected media.
Learn Mode
An interactive guide that expects user to perform the task step-by-step simultaneously along with the guide.

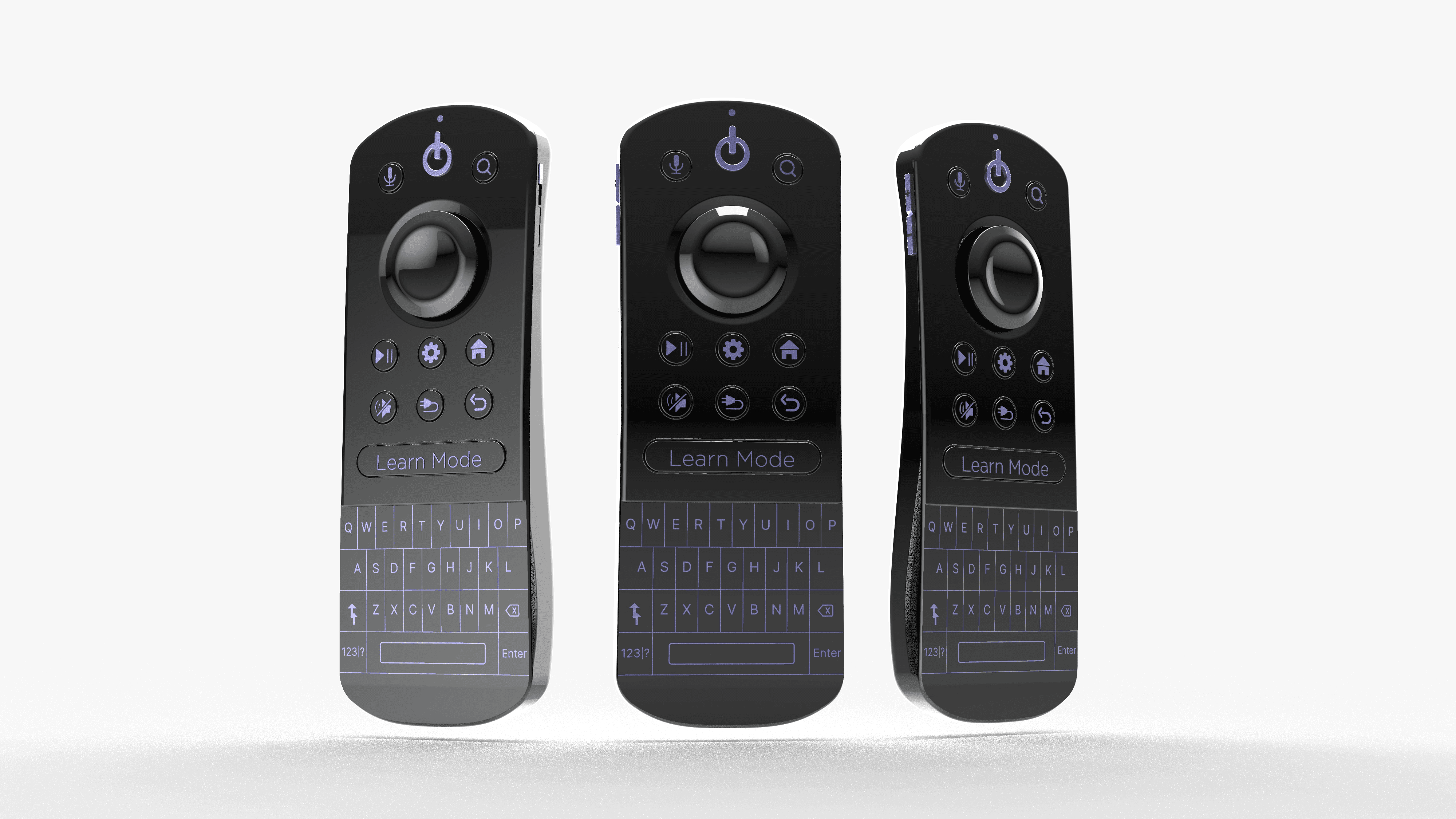

Remote stand with Wireless charging
Battery indicator

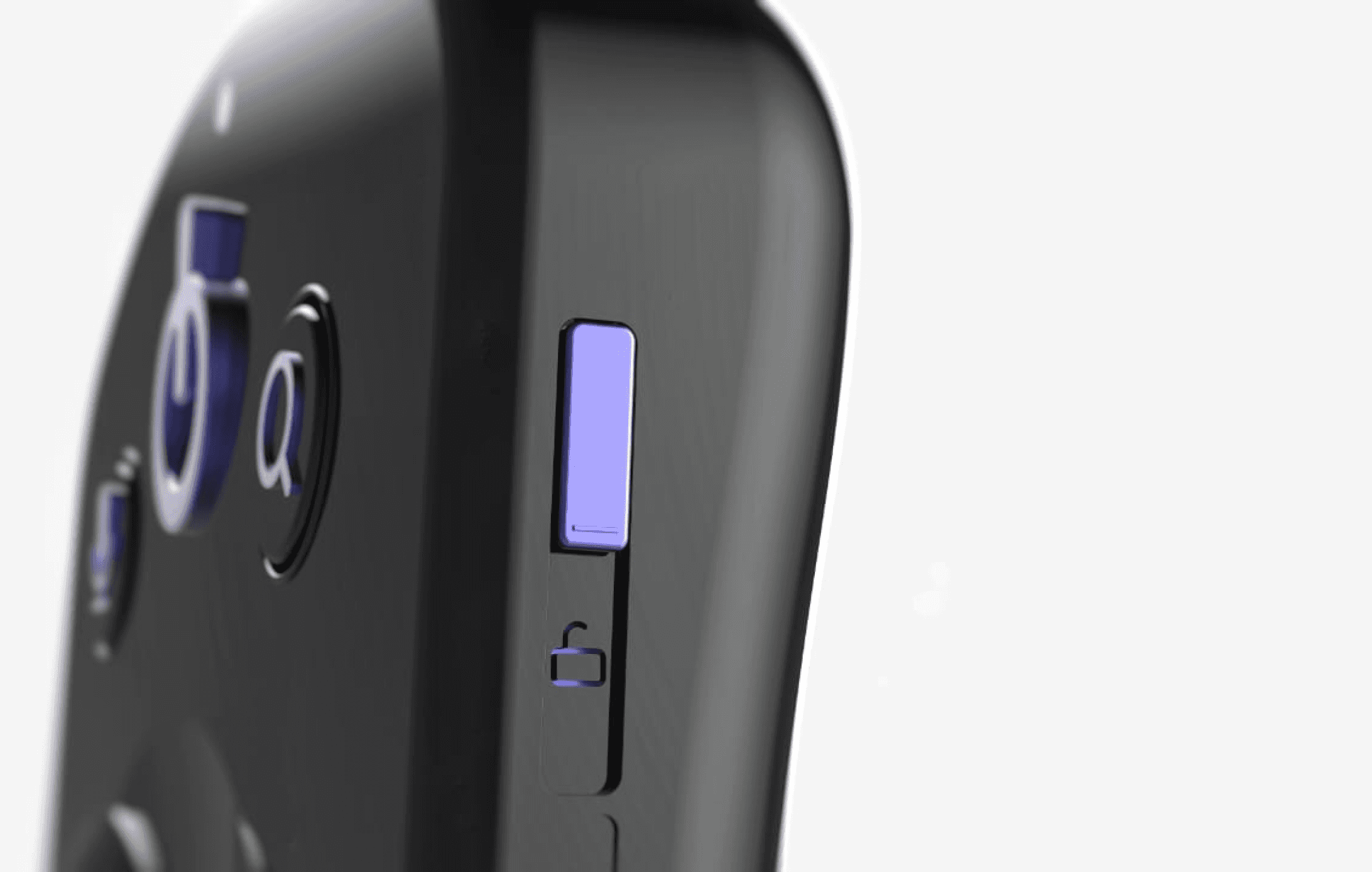

Accidental push protection
Keeps the remote inactive to prevent accidental pressing

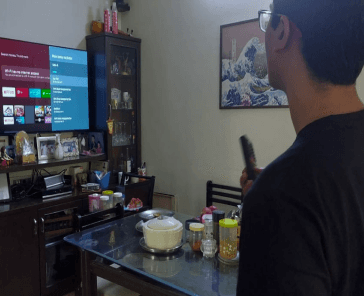

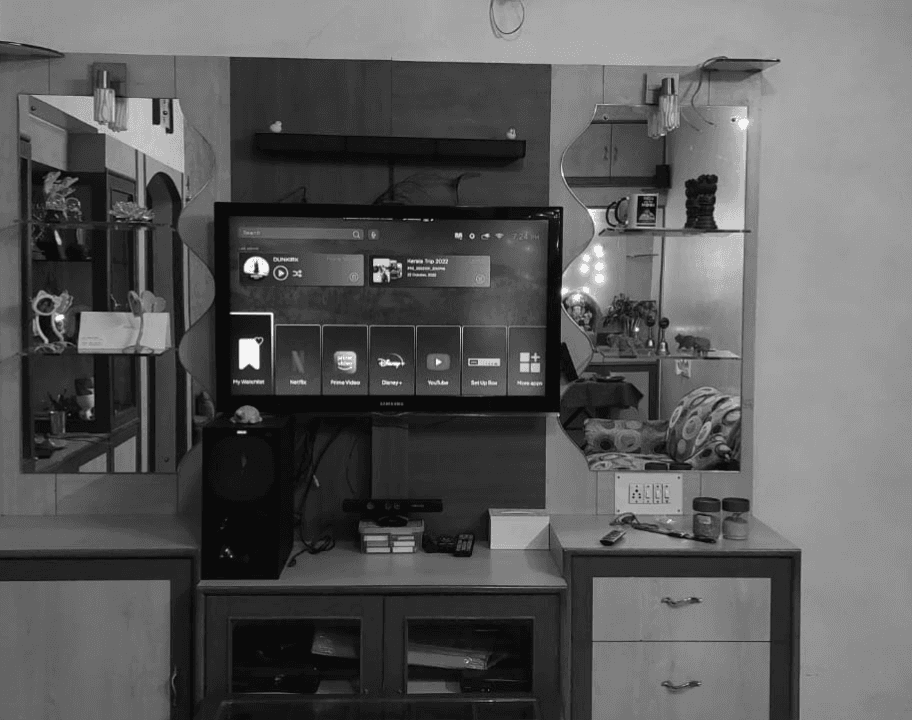

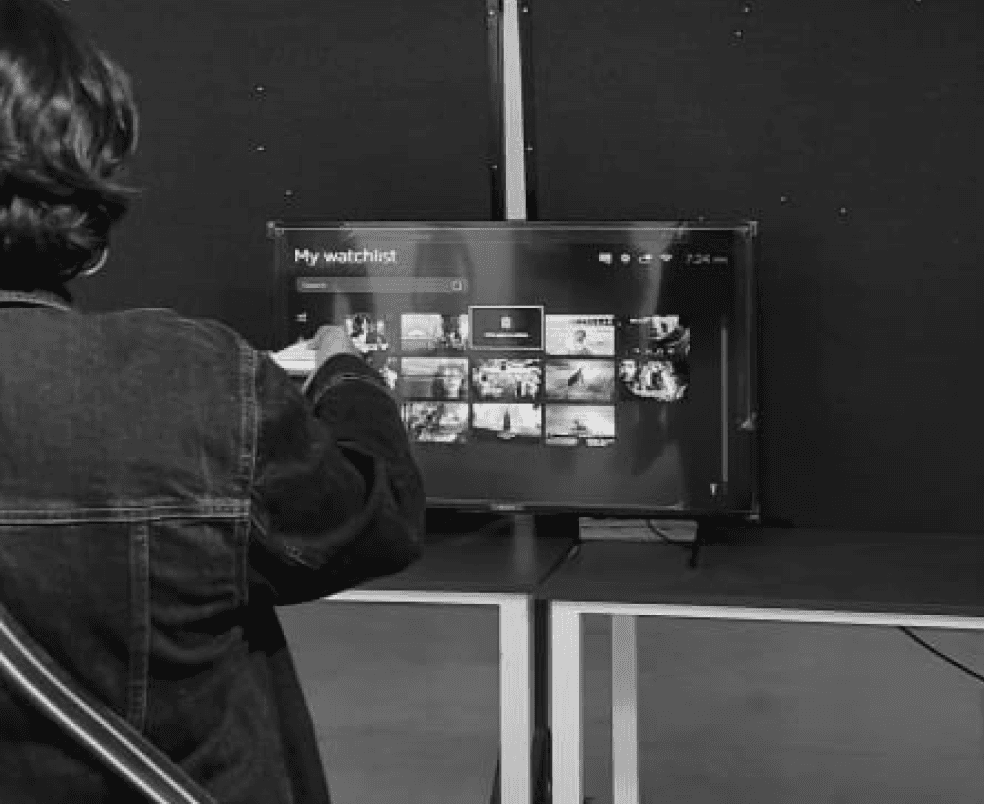

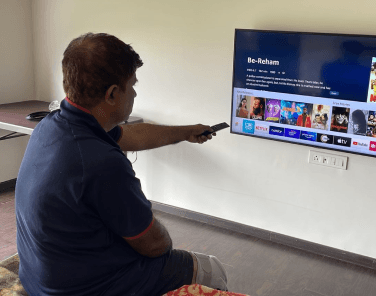

User Testing

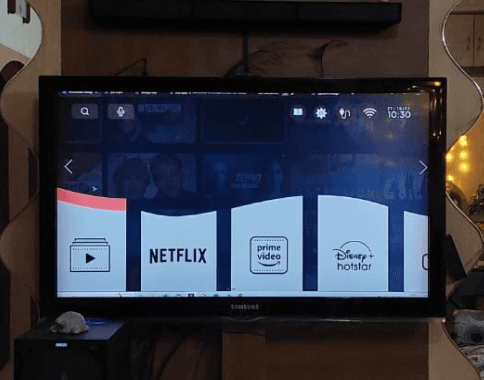

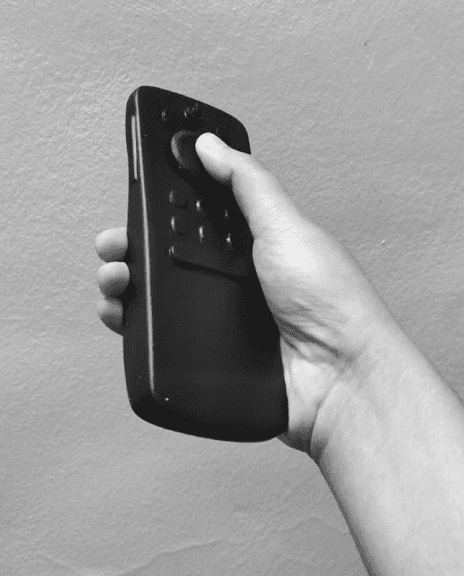

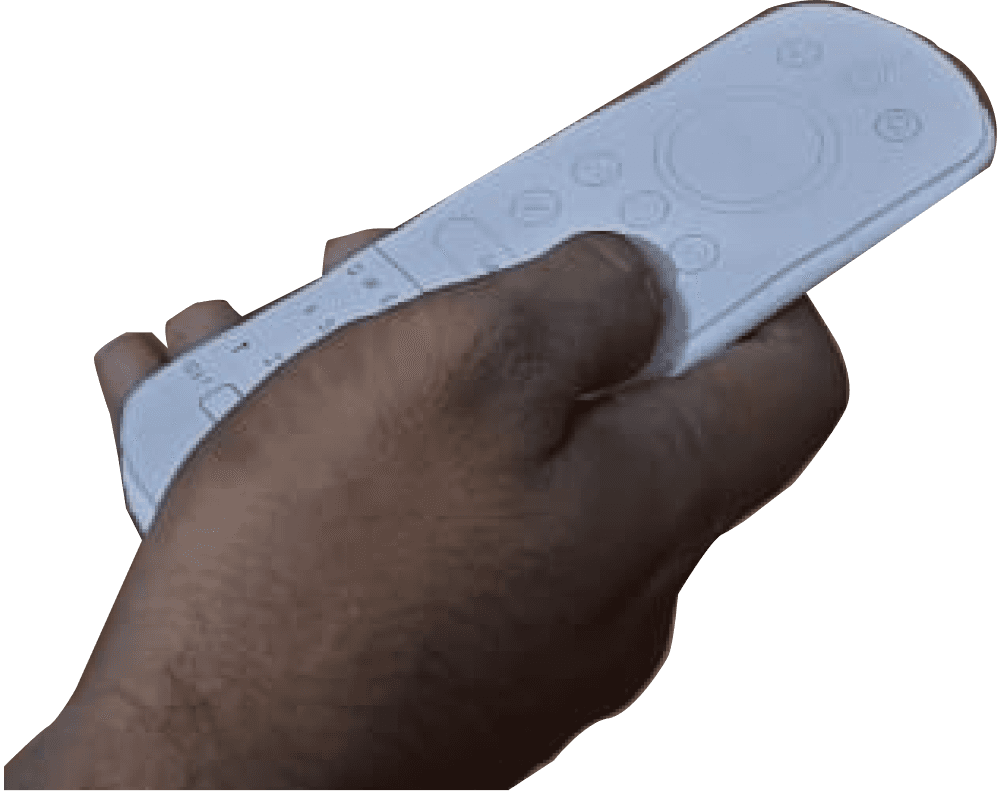

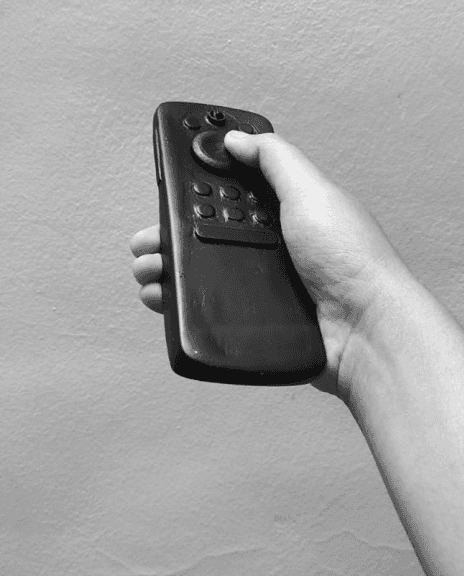

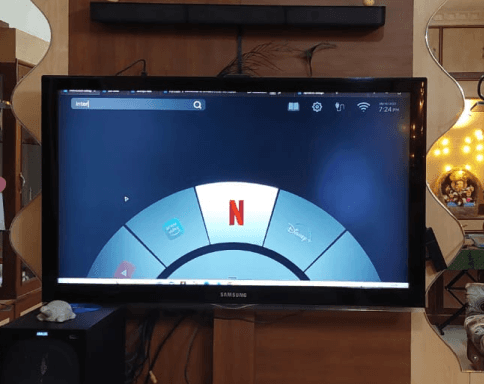

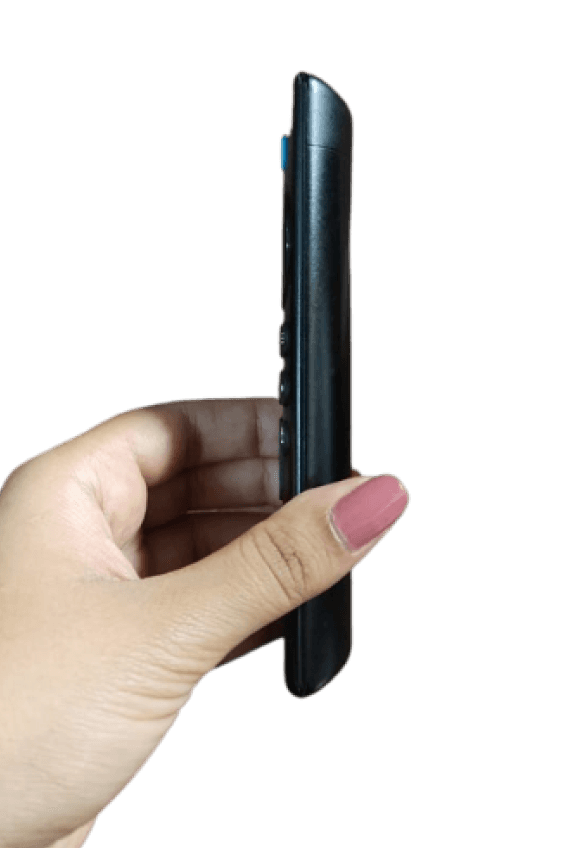

Users were provided with the mockup of the remote in order to get the concept validated in terms of ergonomics and button placement .The UI was projected on a Tv to see if the font and element sizes were apt .

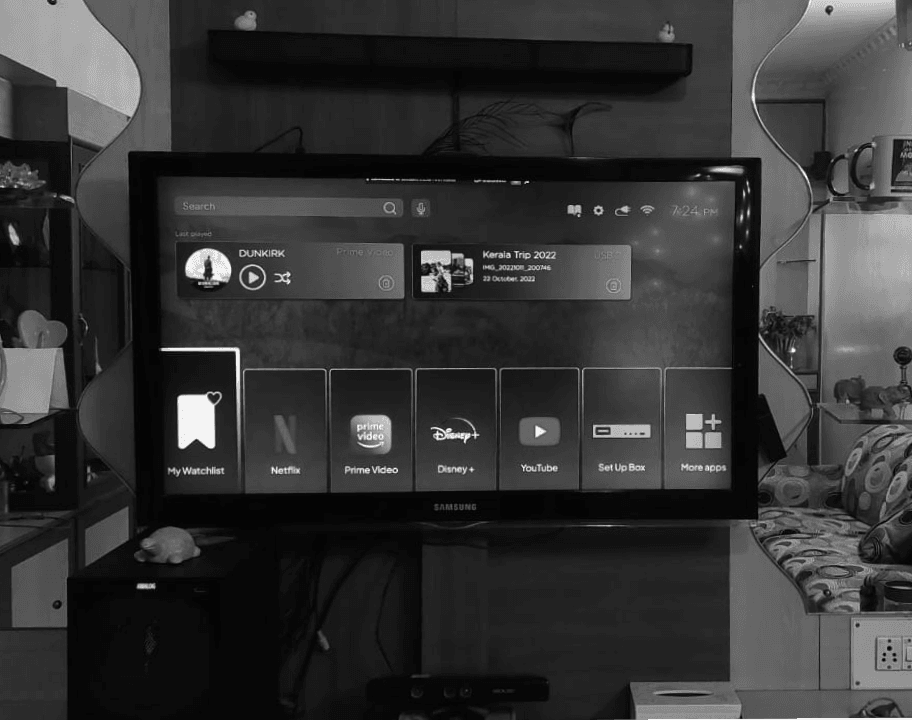

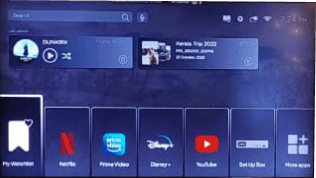

Testing distance legibility at 3ft , 5 ft and 12 ft
Volume indicator
Volume indicator
