University project | 5 weeks | Sem 5
Design Brief:
To design a wearable technology that seamlessly integrates with home-based physiotherapy, providing personalized leg rehabilitation exercises, real-time feedback, and remote monitoring for enhanced patient engagement and recovery.
A revolutionary DVT Machine
Veneze
What is DVT?
Deep vein thrombosis
Different Parts of the Leg Where Pain Can Occur
Thigh Pain
Knee Pain
Calf Pain
Shin Pain
Ankle Pain
Foot Pain
Generalized Leg Pain

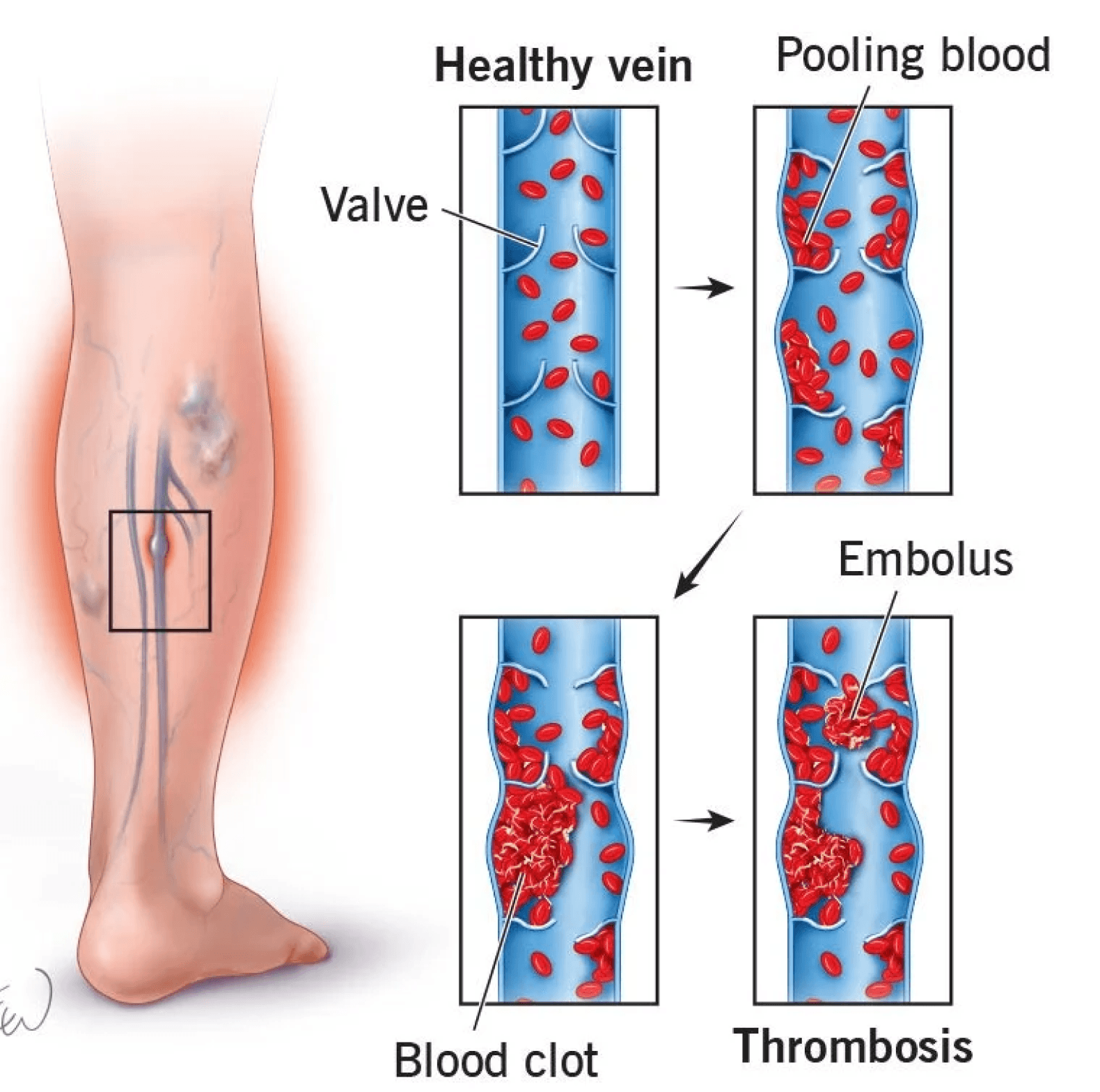

DVT is the formation of blood clots in deep veins, often occurring in the lower extremities. Due to medical conditions that affect how the blood clots
The clots can then travel through the bloodstream and get stuck in the lungs, blocking blood flow.
Aspects
Purpose
Foot alignment, reduce pain
Price
2,000
Application
Foot, specifically heel
Mechanisms
Maintain foot dorsiflexion
Muscle Relaxation
No
Professional Req.
Minimal
Post surgical use
No
Pain relief
No
Duration of use
Overnight
Edema Management
No
Patient Participation
Passive
DVT Prevention
No
Mobility Enhancement
Muscle relaxation
1,790
Muscles, soft tissue
Vibration
Yes
Variable
Limited
Yes
Variable
Yes
Variable
No
No
Yes
Muscles, tissues
No
Variable
No
Muscle Recovery
No
Target Areas
Foot, plantar fascia
Circulation Enhancement
No
Customization
Joint mobility post-surgery
18,000
Joints, typically knee
Passive joint movement
Yes
Moderate
Yes
Limited
Post-surgery period
No
Passive
No
Yes
Yes
Joints
Limited
Limited
Prevent DVT
21,000
Leg veins
Air pressure
No
Minimal
No
Limited
Periodic use
Yes
Passive
Yes
No
No
Lower limbs
Limited
Limited
Tissue manipulation
5 Lakh
Connective tissue
Gentle vibrations
Yes
Moderate
Yes
Yes
Variable
Yes
Passive
No
XYZ
Yes
Connective tissues
Yes
Moderate
Improve circulation, reduce swelling
7,000
Lower extremities
Air compression, massage
Yes
Minimal
No
Yes
Variable
Yes
Passive
Yes
No
Yes
Lower legs, feet
Yes
Minimal
No
Vibrating

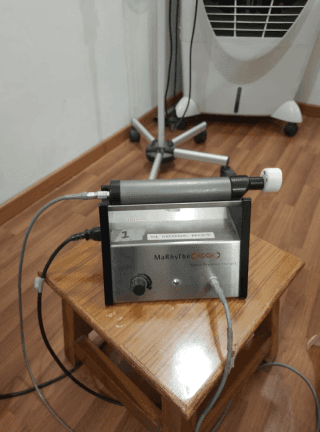

Massages

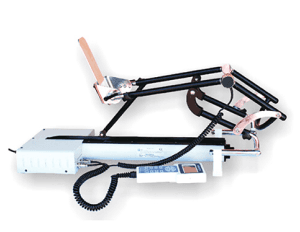

CPM Machine

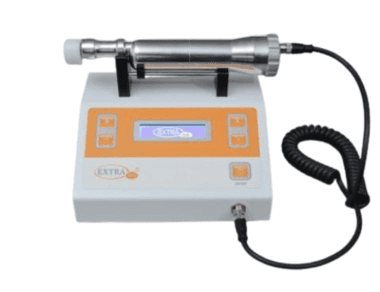

Matrix Rhythm
Device

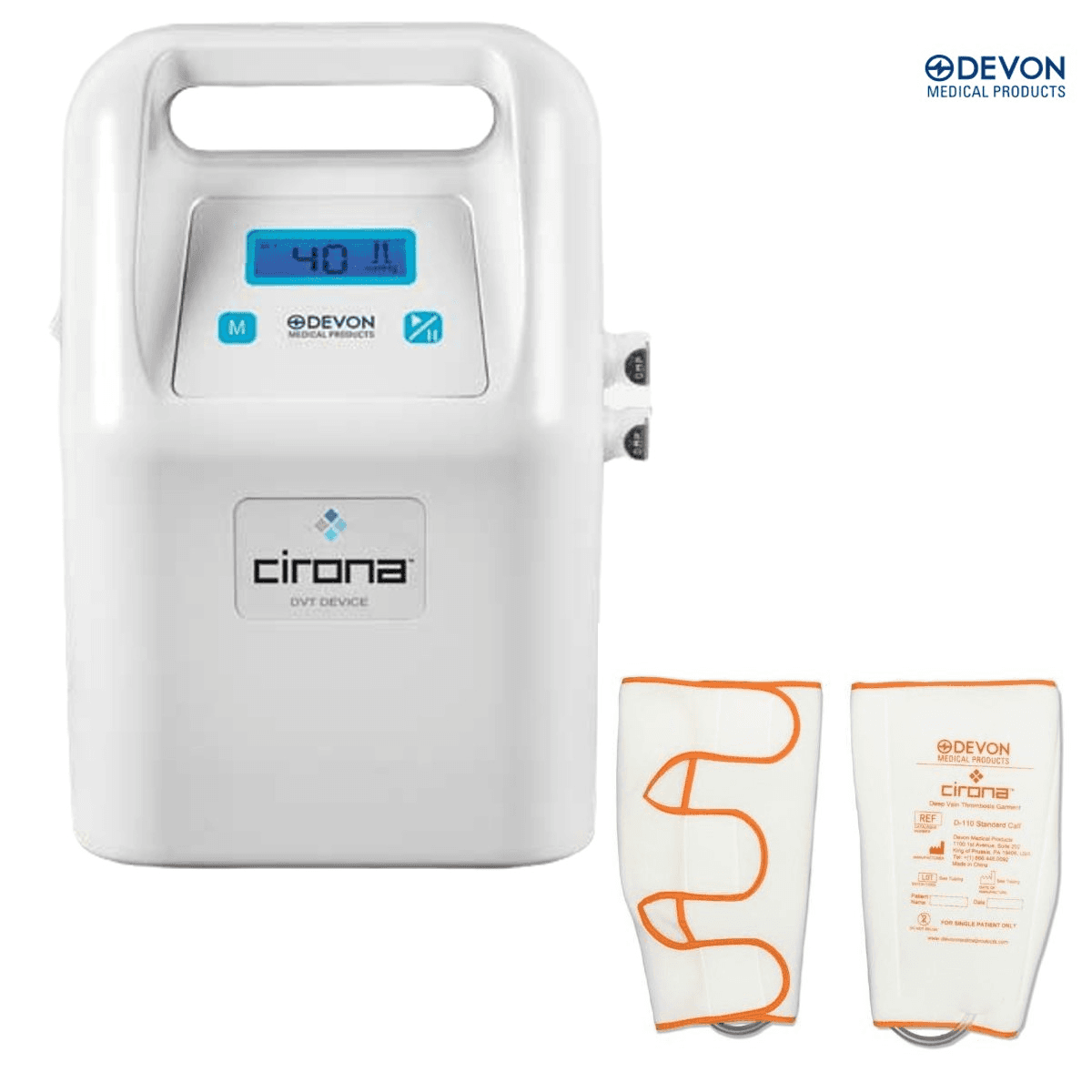

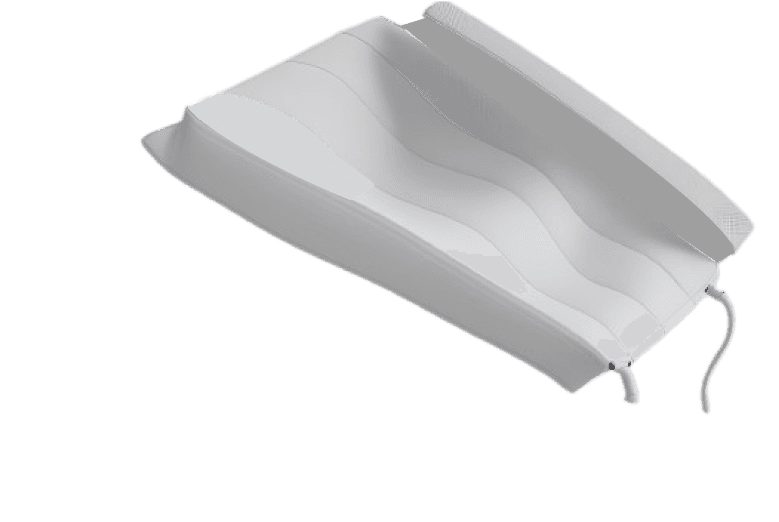

DVT Pump
Oscillating Air compression Device
Plantar Fasciitis

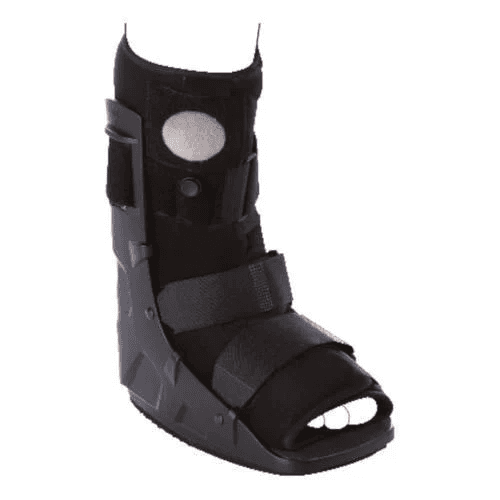

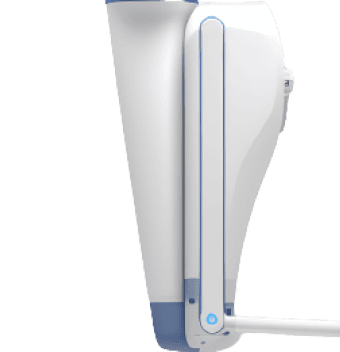

Night Splint

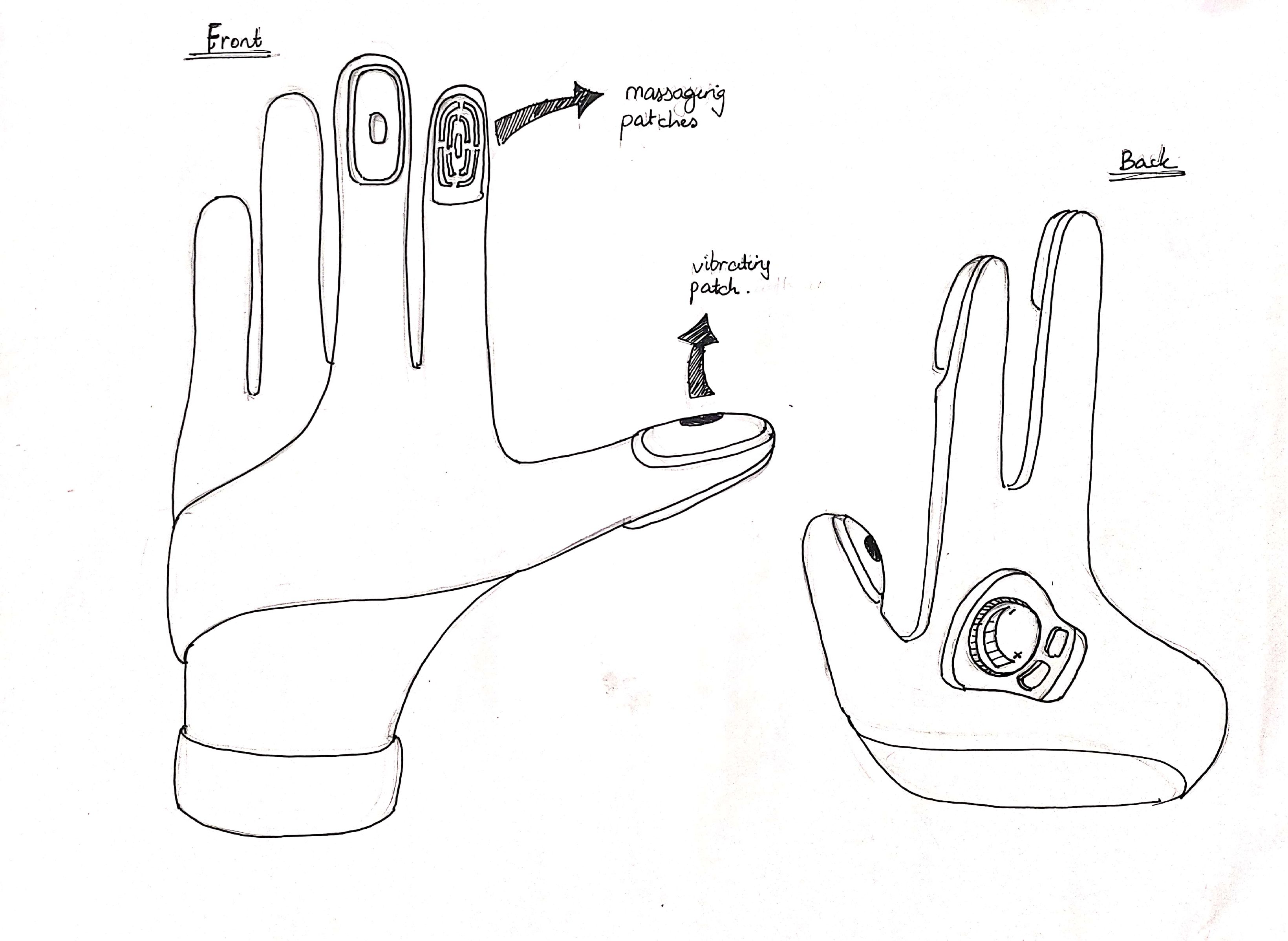

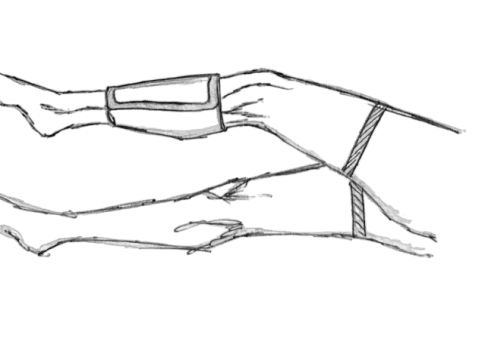

Design Brainstorming
Portable
Customizable to each body type
Customizable to majority body part
A device that is able to understand need of patient and suggest adjustments, data analyzing feature
Less intimidating device
Easy to manage
A device that is easy to maintain per use hygeine
User friendly Interface, eg- audio /visual feedback
Low risk Devices
Reduces physical load of handler
Velcro is the most easiest wrapping technique
Should be easy to Clean

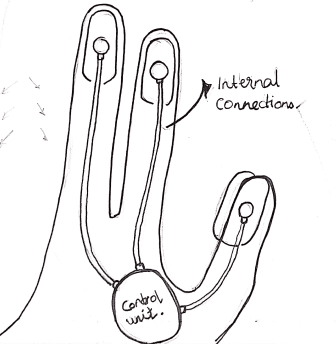

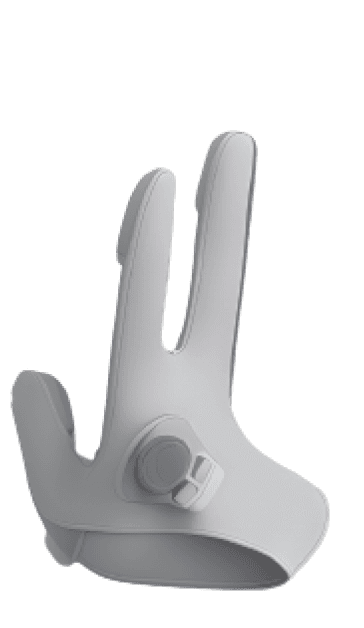

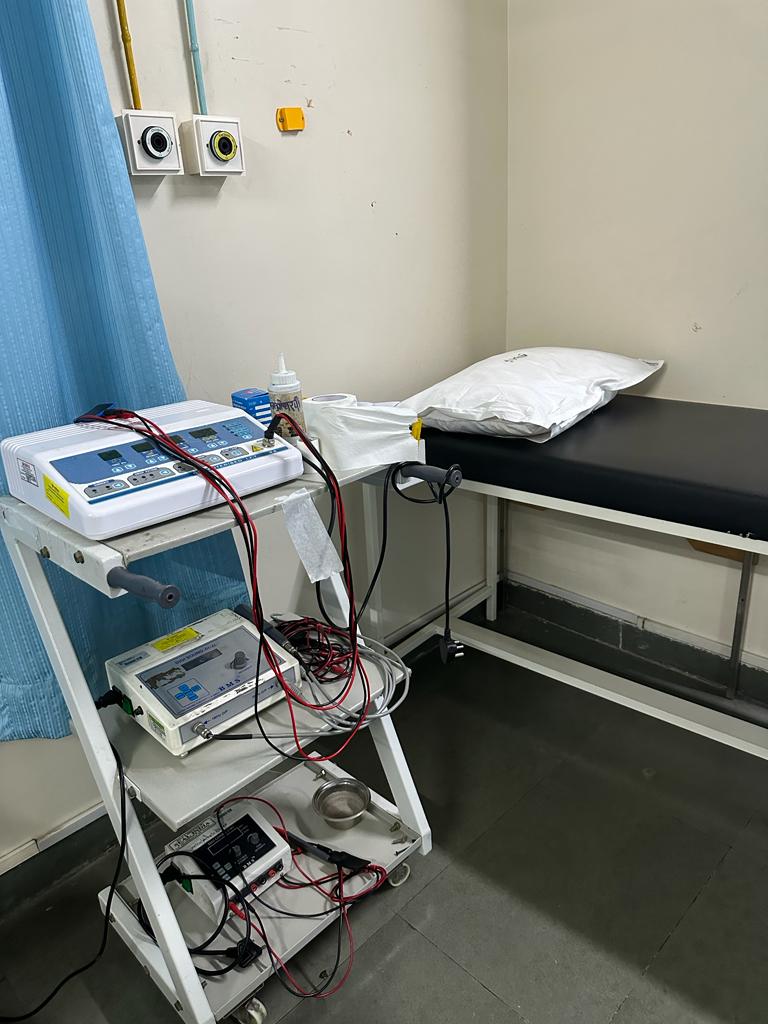

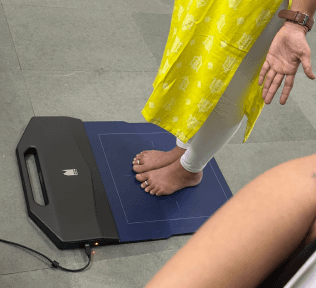

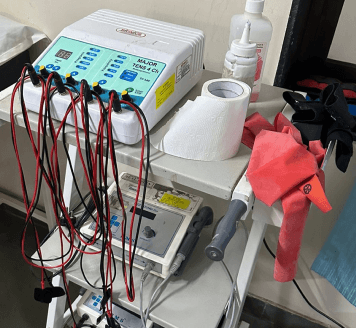

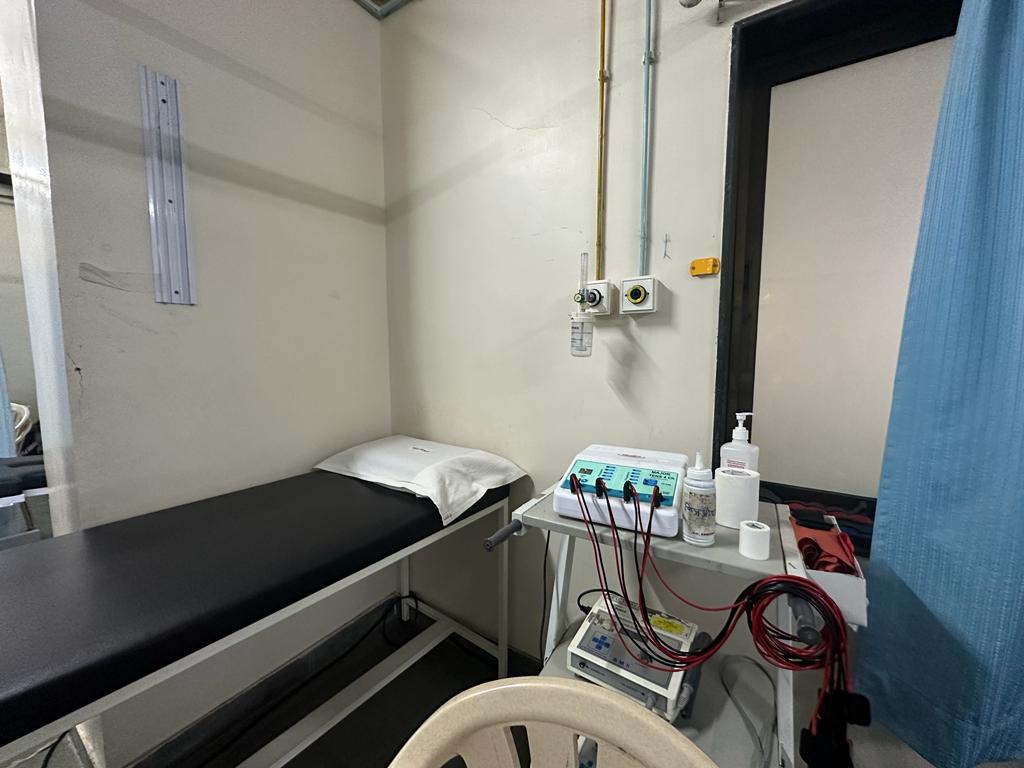

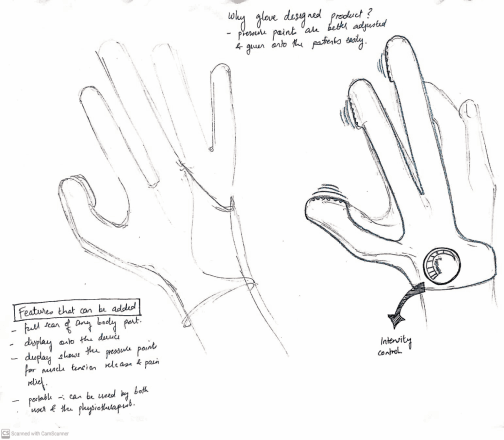

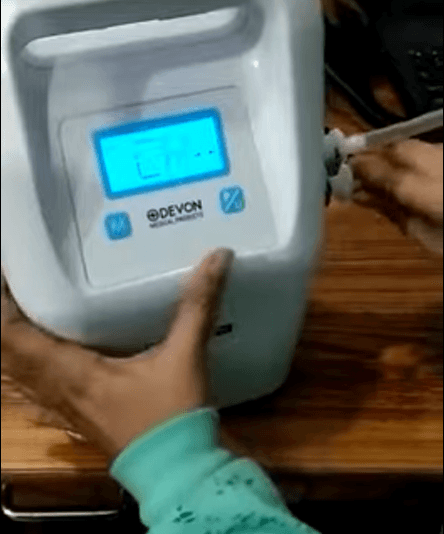

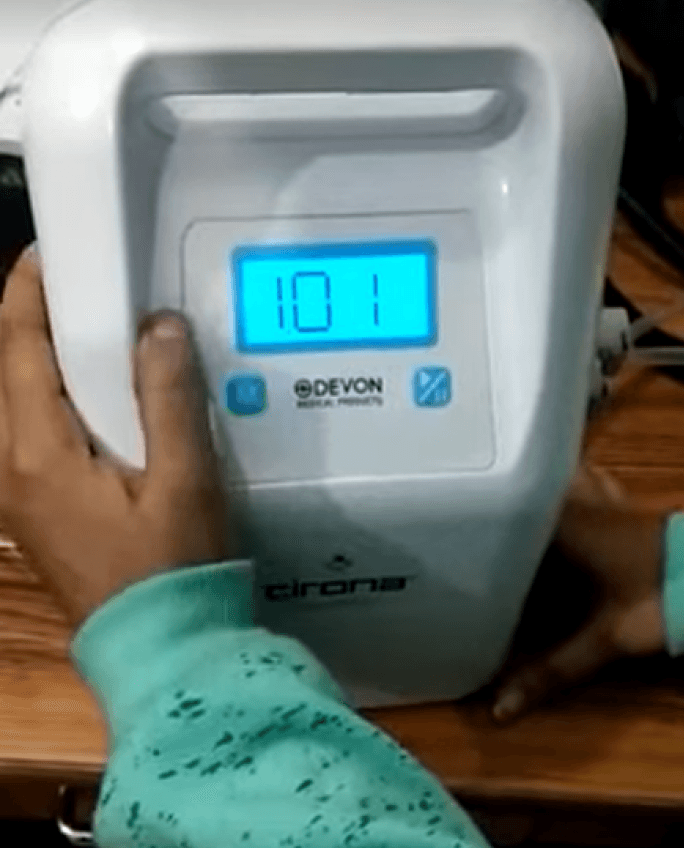

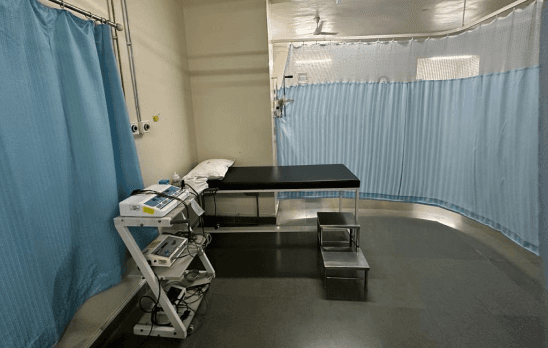

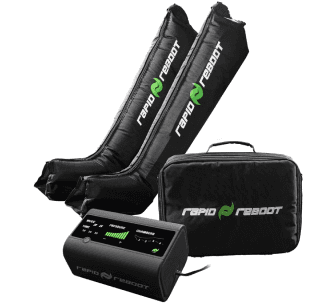

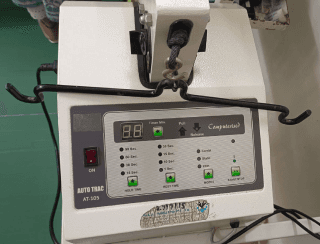

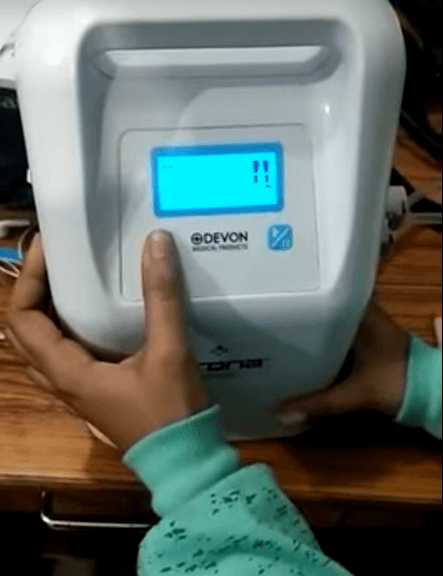

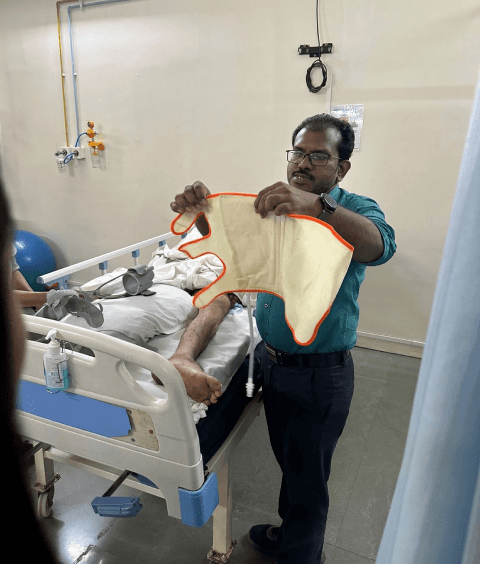

Studying existing DVT PUMP

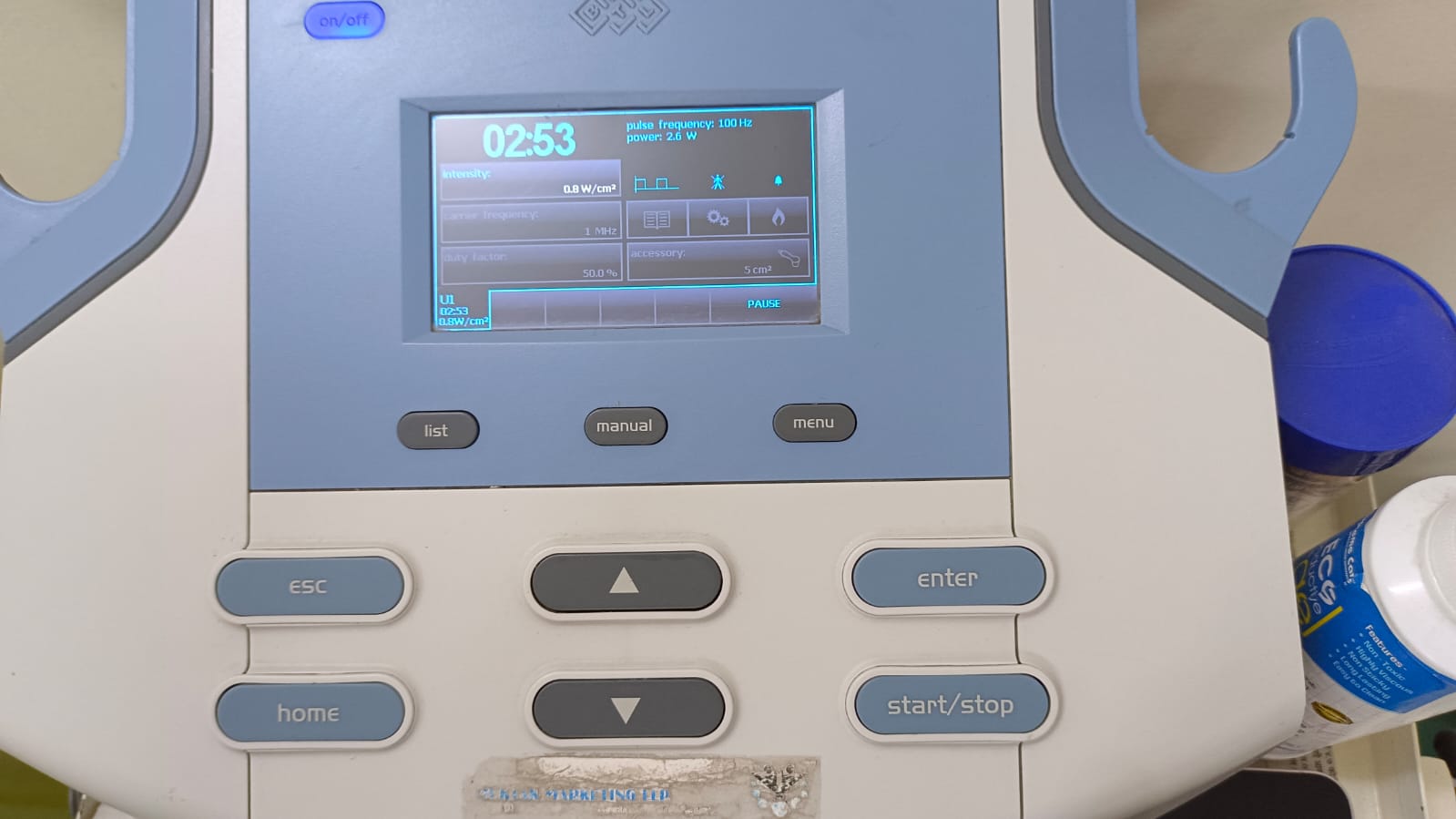

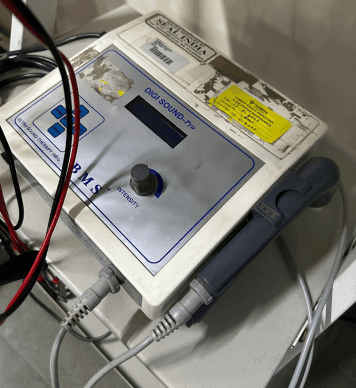

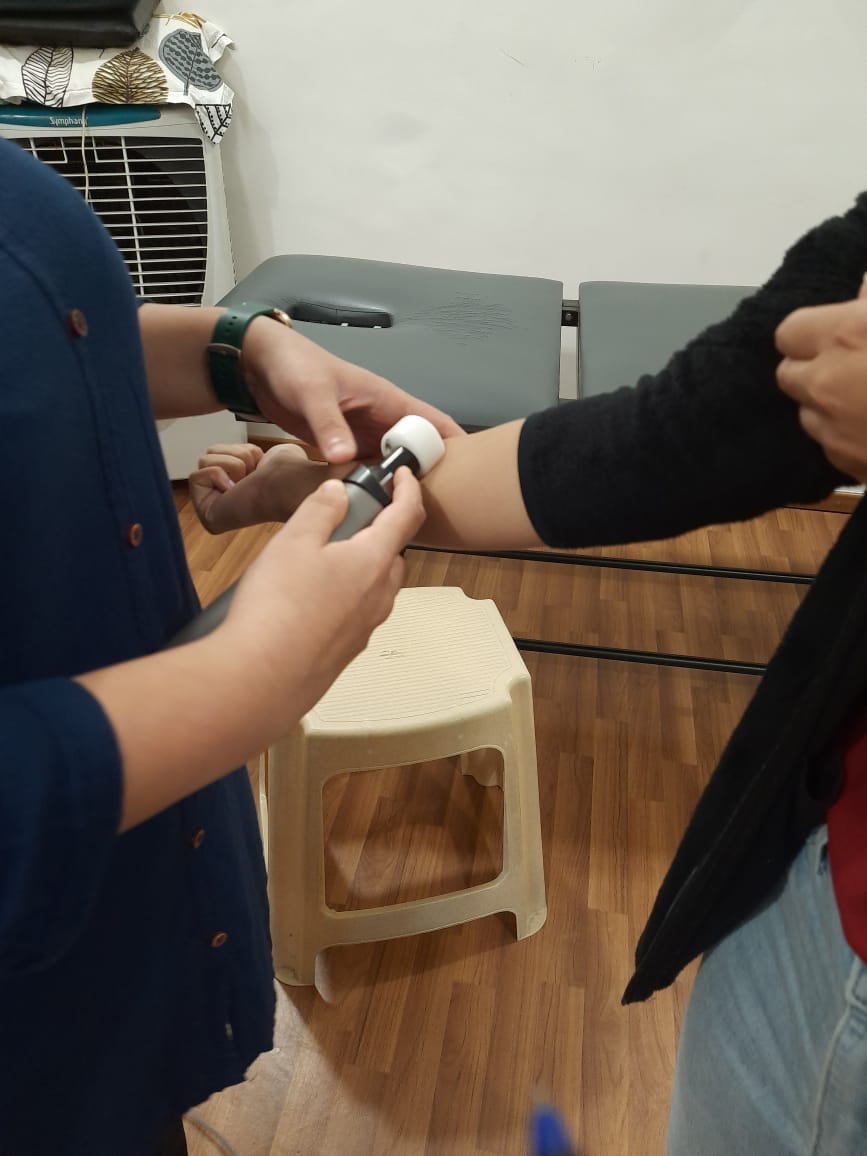

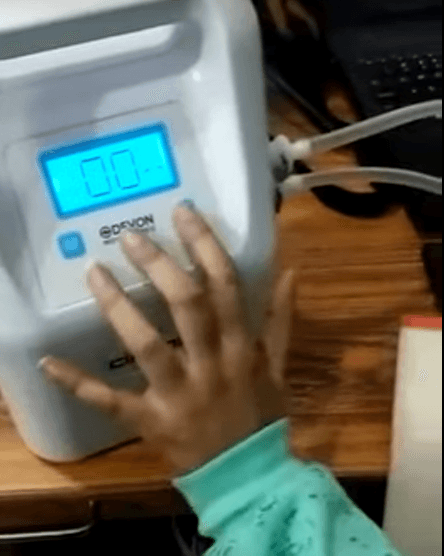

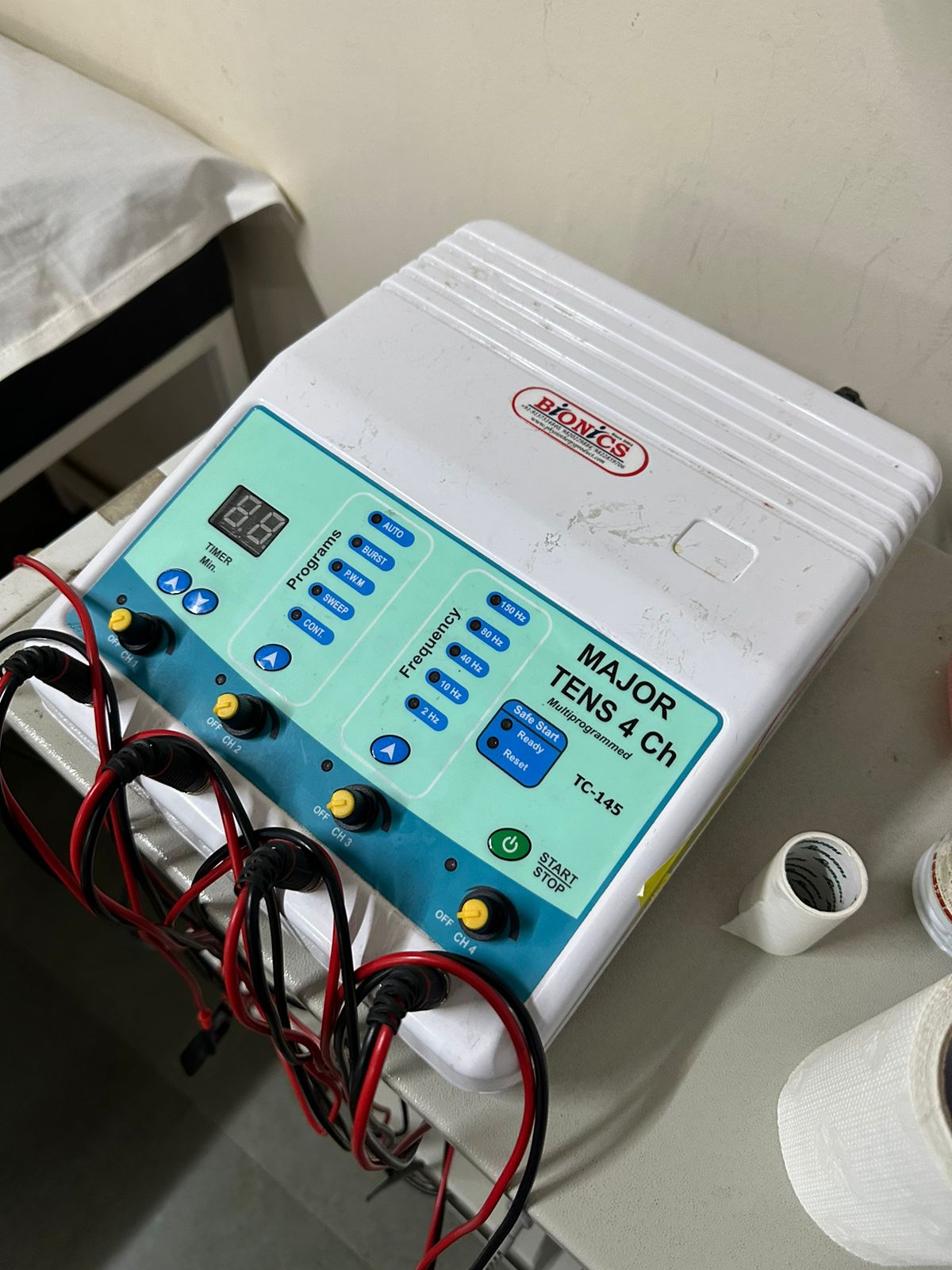

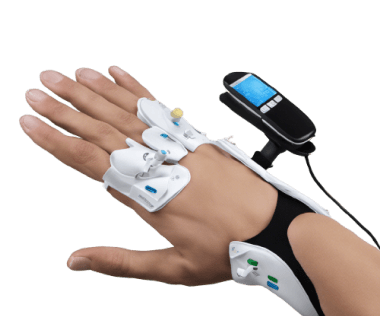

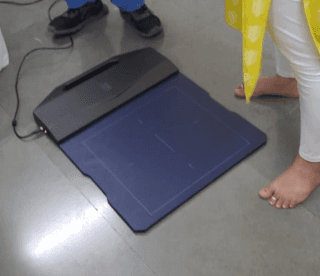

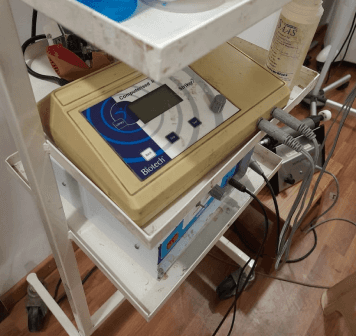

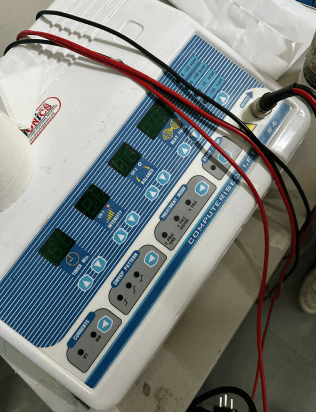

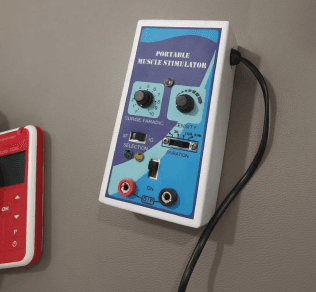

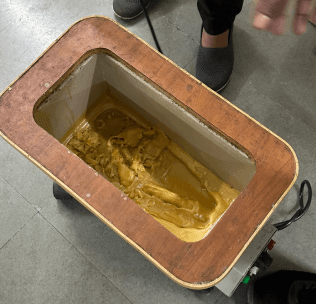

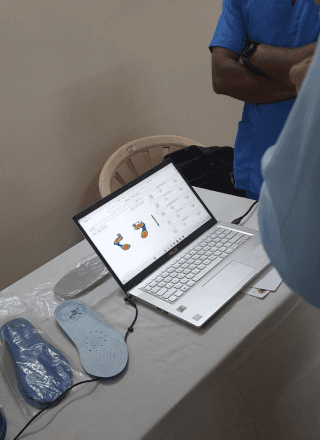

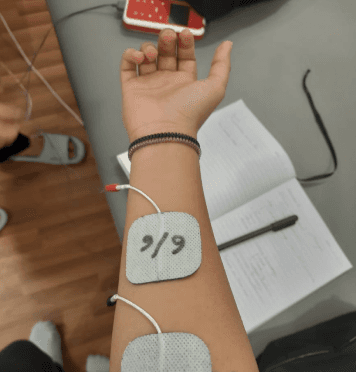

Studying mechanical relief devices
Sections

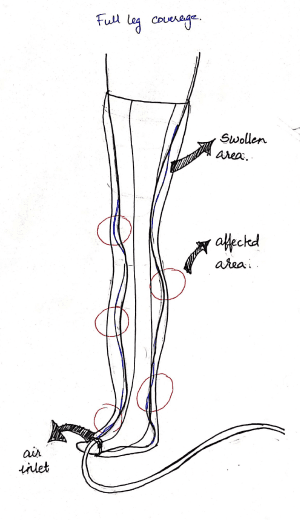

Body coverage

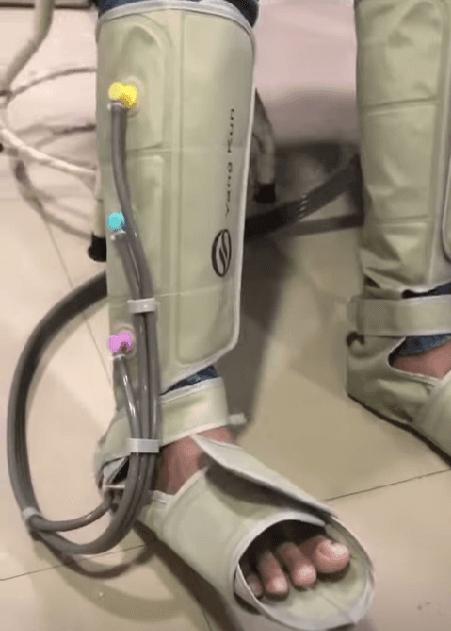

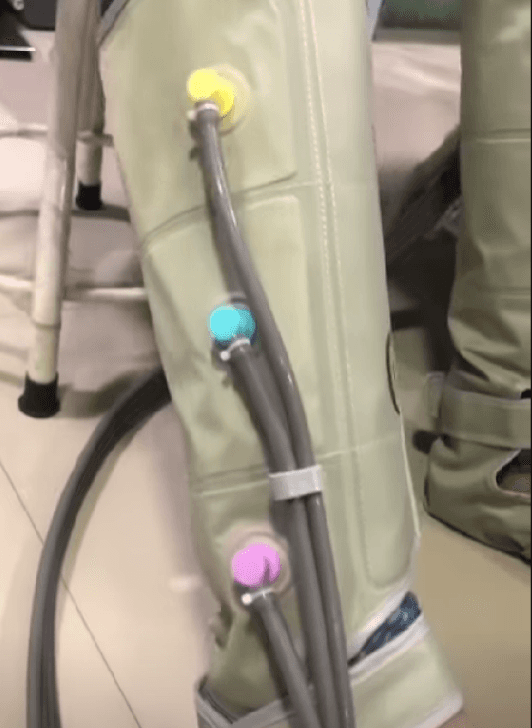

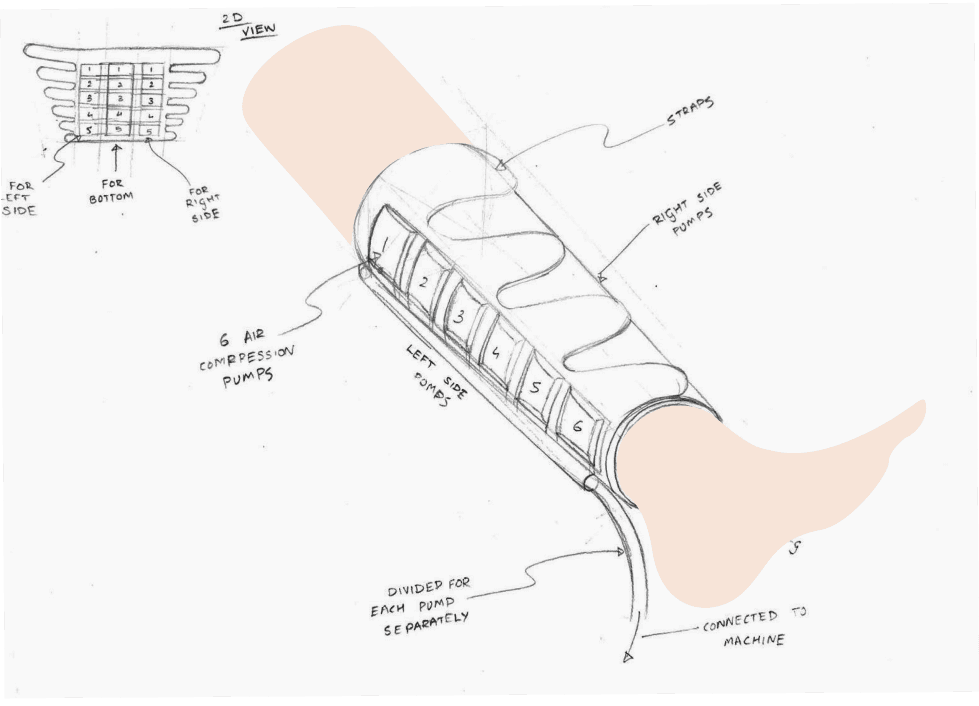

The product consists of 3 section in the area between calf to ankle.

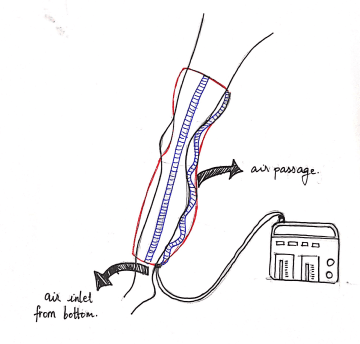

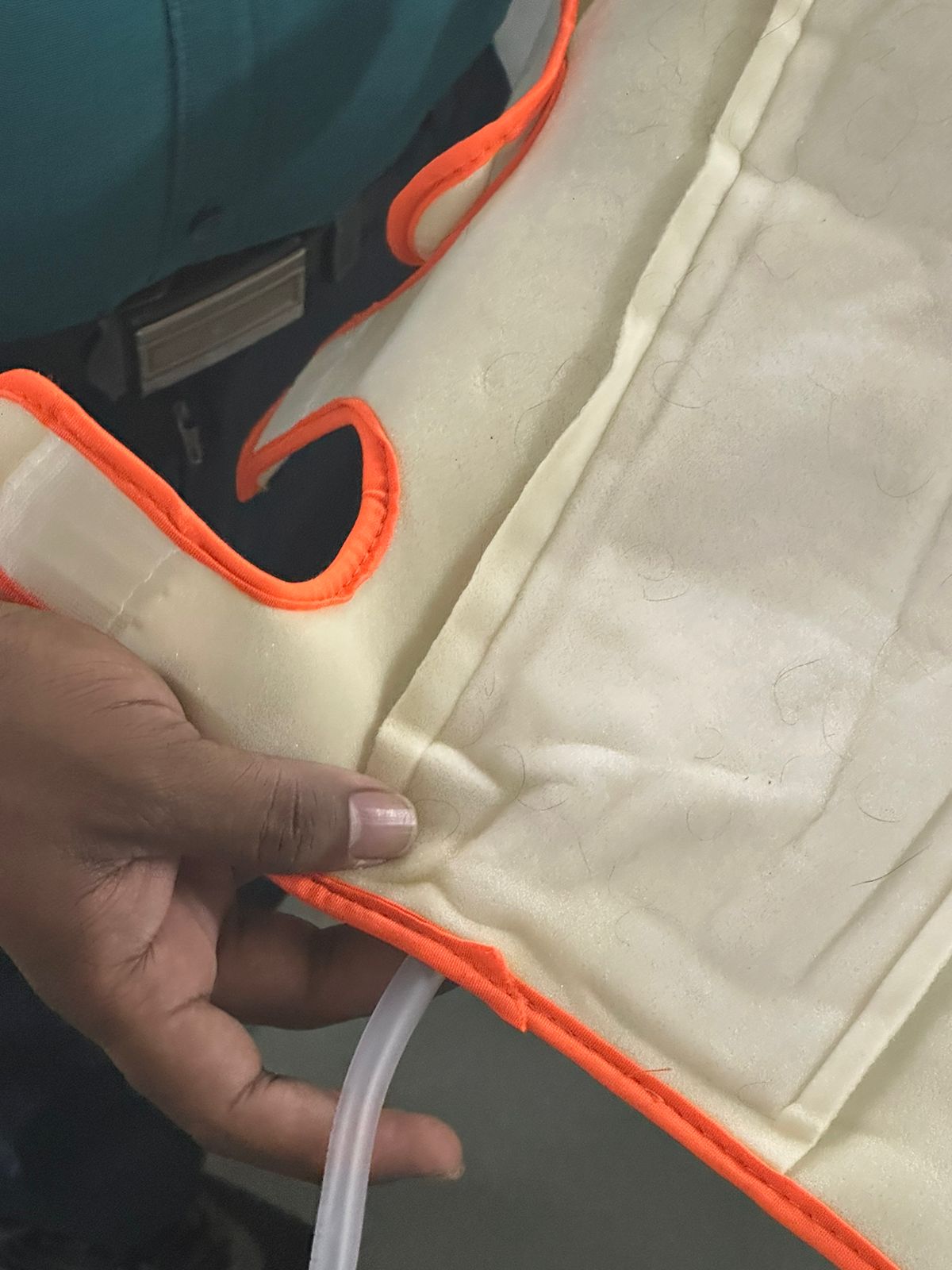

The air pipes are detachable and can be attached anytime.
Less mobility due to wires.

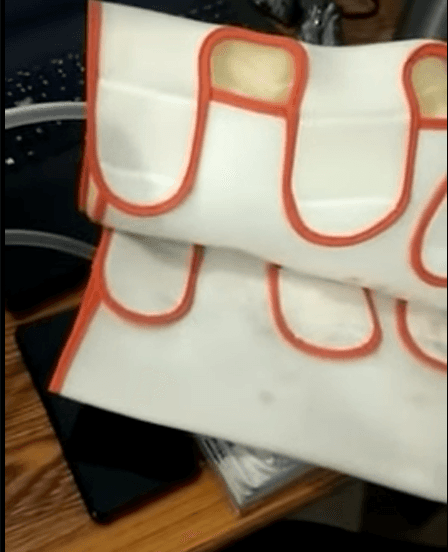

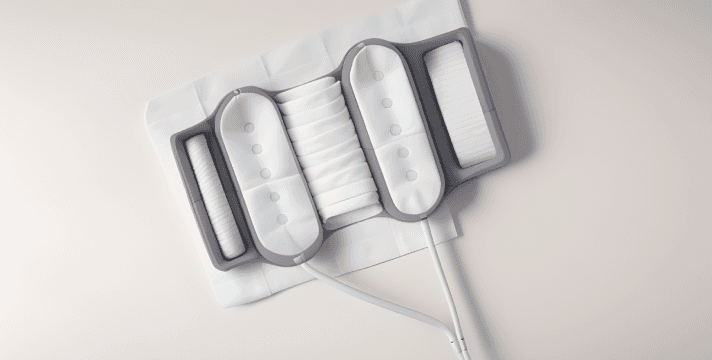

Parts like calves, ankle, foot are covered with DVT air compression pumps.
Observations
Problems
Labels
Increase Intensity

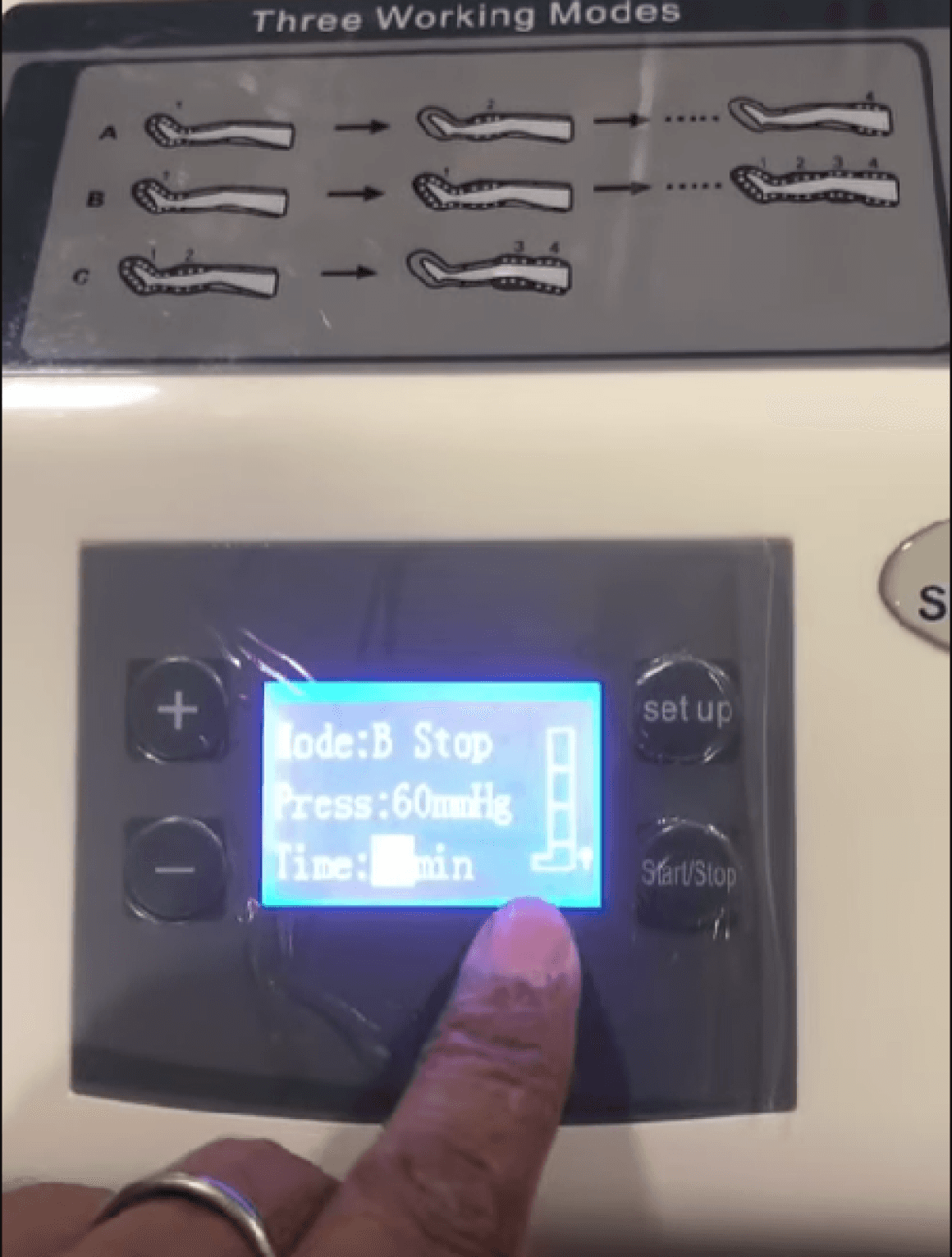

Mode selected
Decrease intensity
Time
Start /stop
Modes are represented thru graphical manner
User presses the start button
Taps on the mode button
Plugs in the Air flow pipes
Presses start button
Air pumping starts
Main switch on the sides
Indication of both leg body coverage
Interface

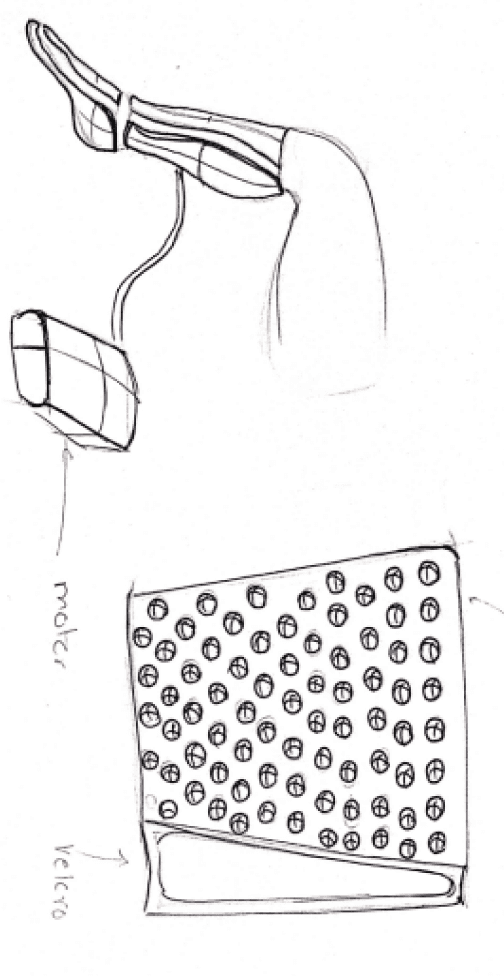

2 X tactile buttons
Numeric displays
Air pipe plugs at the side
Velcro
Cavity for ankle
Proof of concept!
one device that can incoperate different frequencies and intensities
Velcro
hook
Oscillators
solid body
Cloth
Velcro
loop
Fits easily on your leg

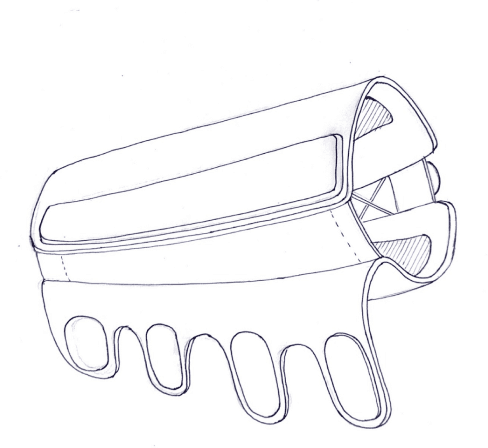

A foldable and wearable device.
Can be wrapped around your thighs, hands, calves, etc.
You can also sit and place your foot on the solid part of the body for foot therapy.

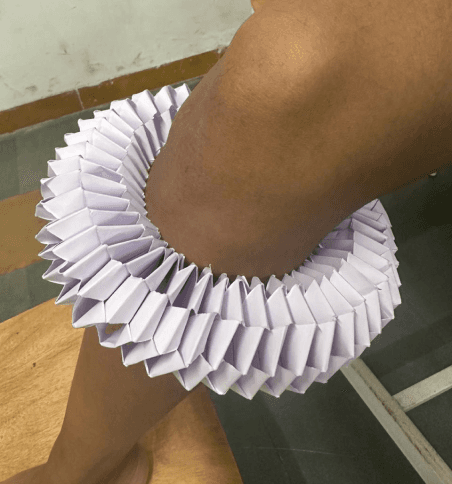

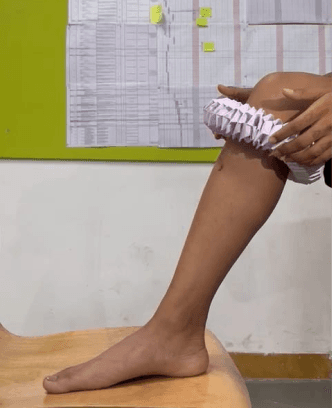

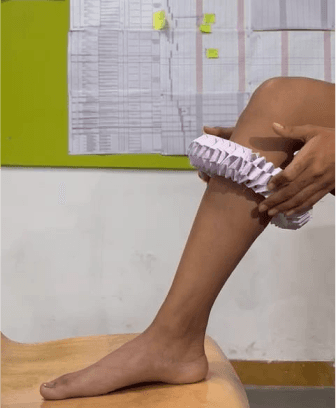

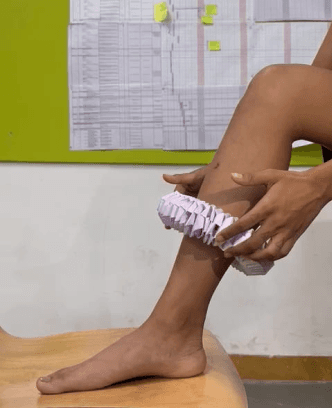

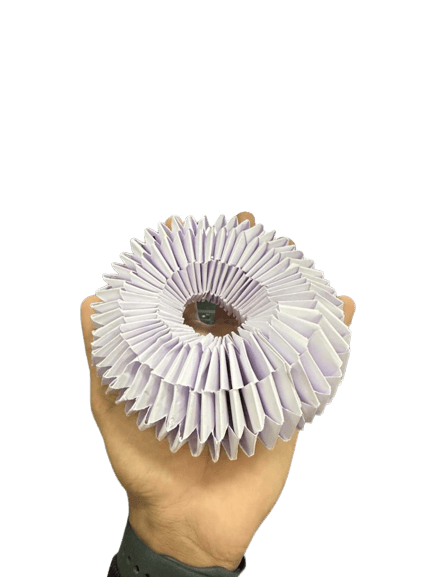

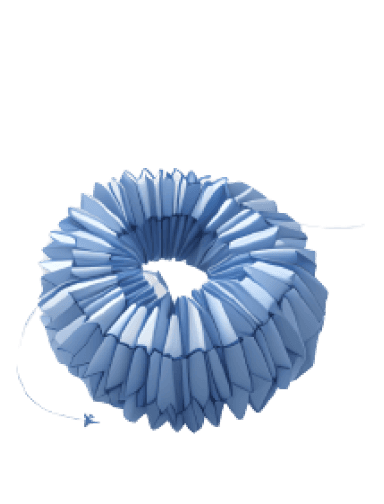

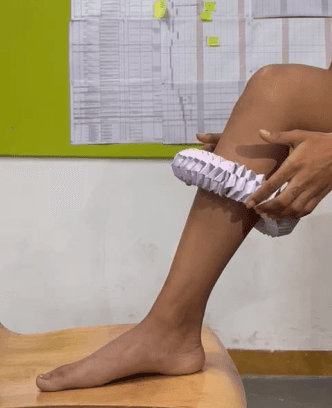

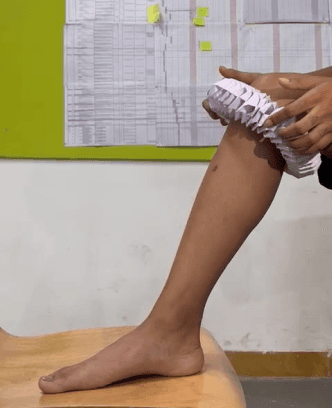

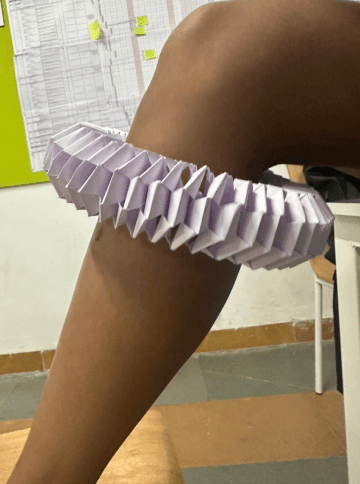

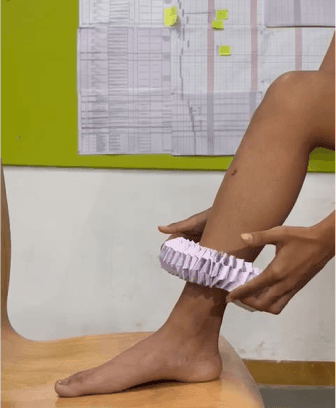

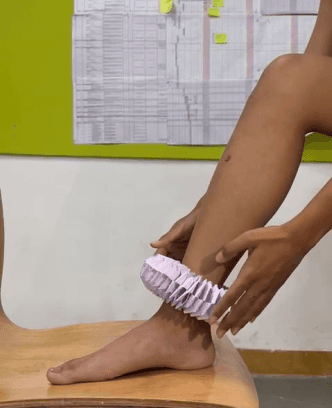

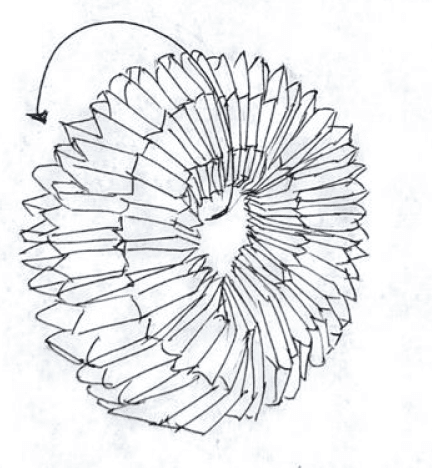

a ring structure inspired from origami for rolling movement
helps in the blood flow needed to prevent the blood clots and easy flowing
self rotational ring along with linear movement

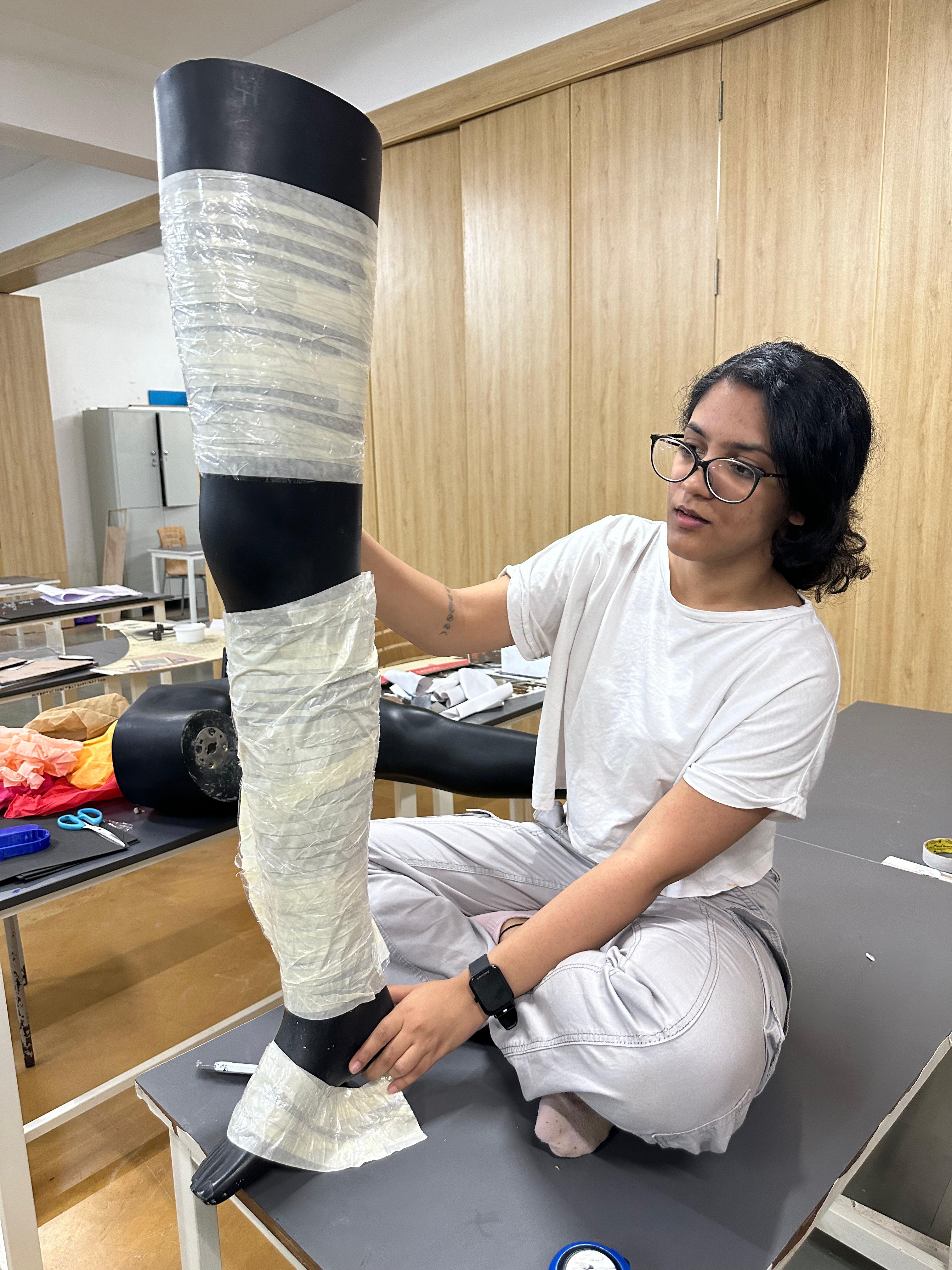

Mockup

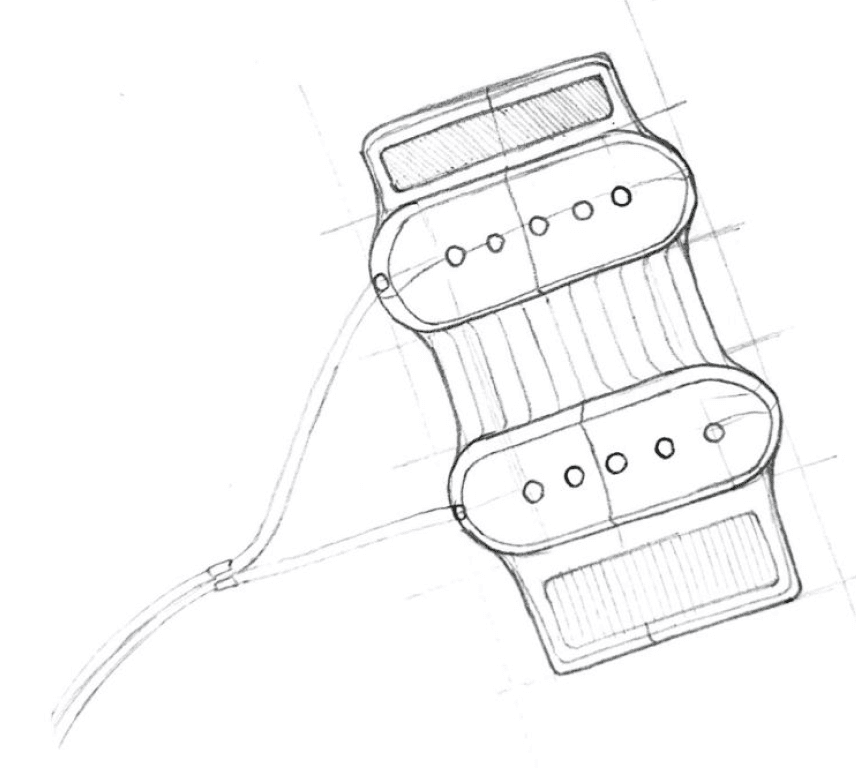

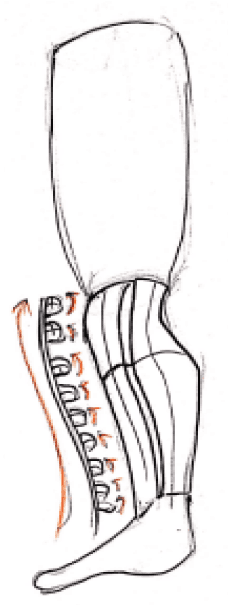

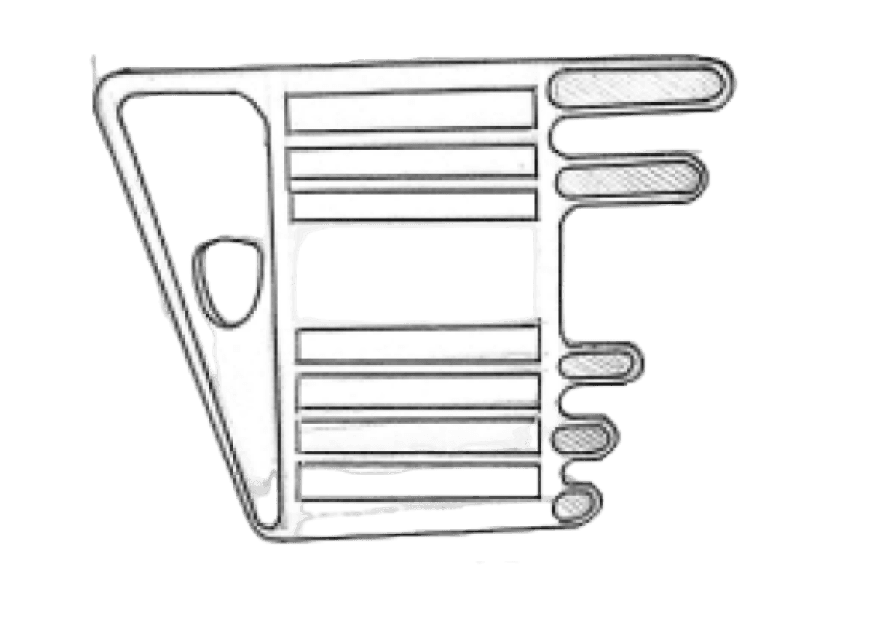

This pumping areas can be activated one after the other in order to create a flow/direction.
Can have different frequency, intensity and size.
Features:
Different frequencies for each other.
Different intensities for each section.
Timer (Eg. 15/20/25 mins)
Modes according to activation of sections . (Eg. 1,2,3,4,5,6)
Presets

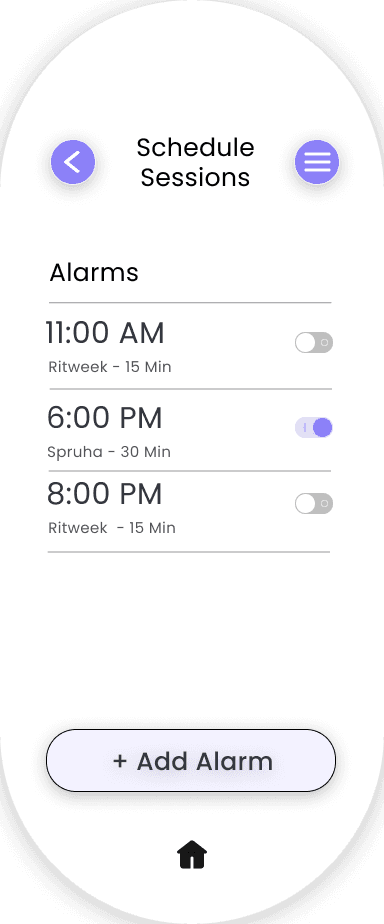

Schedule alerts
Tracks progress
Can incorporate other functions such as B.P. , diabetes, ECG,etc.
Temperature controlled devices.
AI Assistance
Crape Bandage
Another thin layer to tighten
Crepe Bandage
Alternative technique
STRING
to inflating / deflating the thin layer

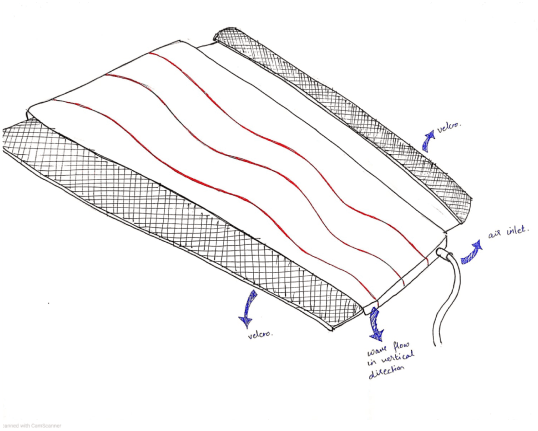

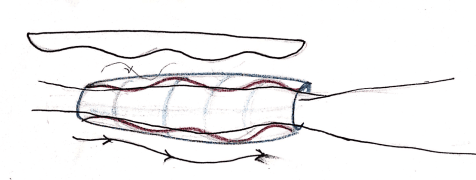

wave mechanism for better pressure application over the body part.
pressure can be controlled for the air compression

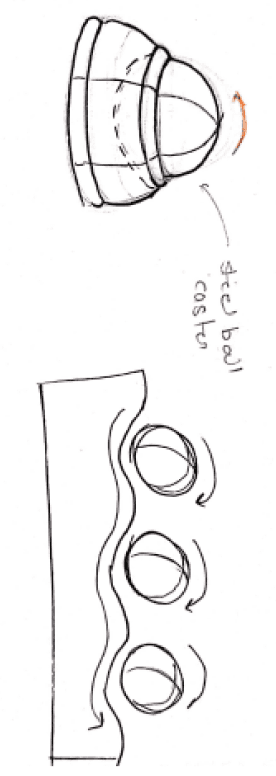

Castor Wheels
Velcro Strap
Velcro Loop
Explanation:
Aligned with respect to the pressure points of the Leg
Octagonal Cross section
for pressurized application

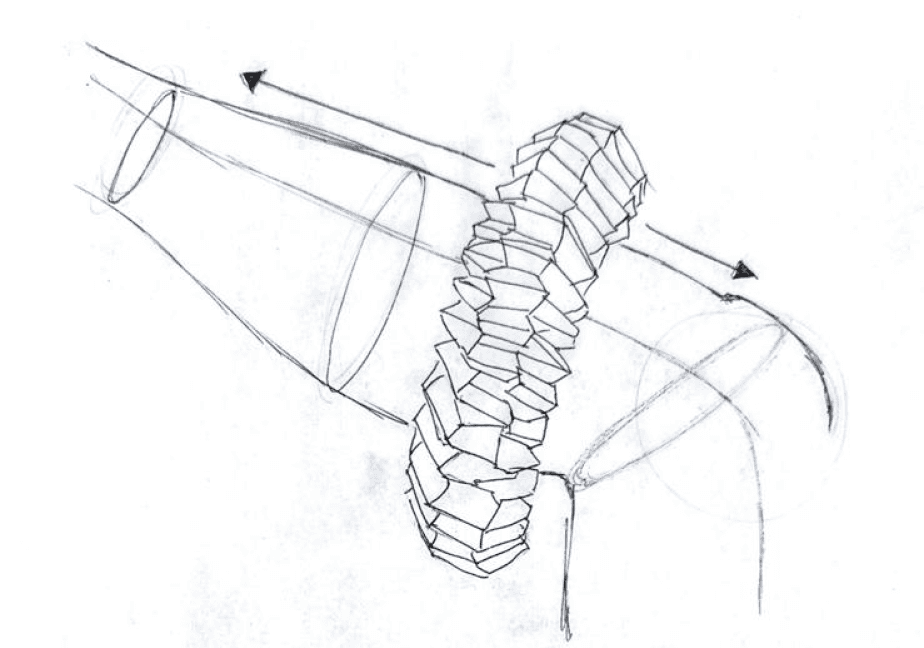

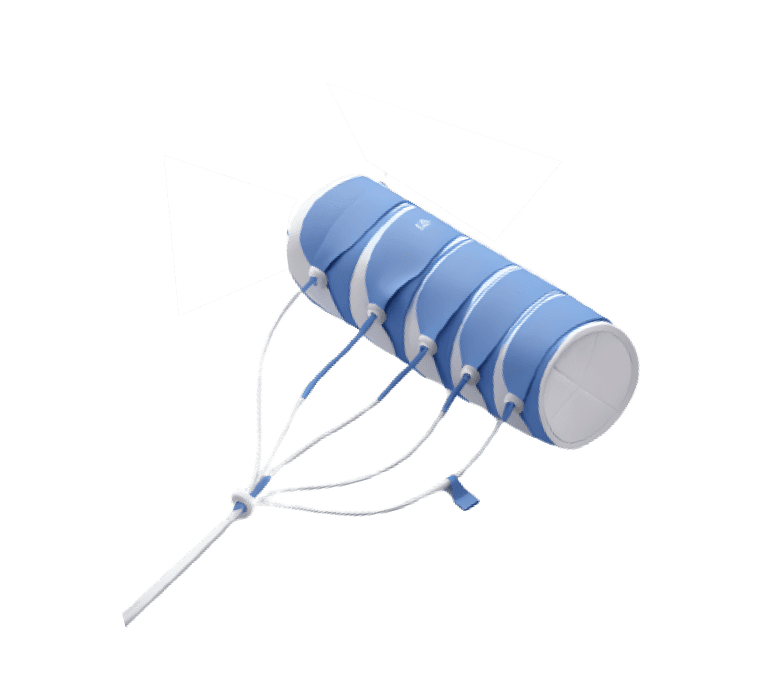

Origami Inspired Ring

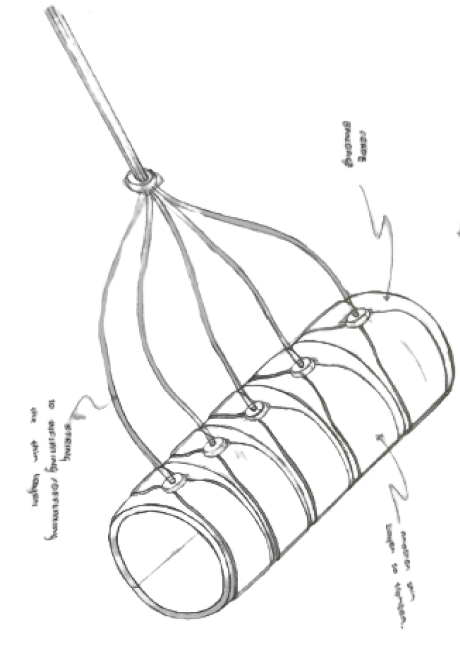

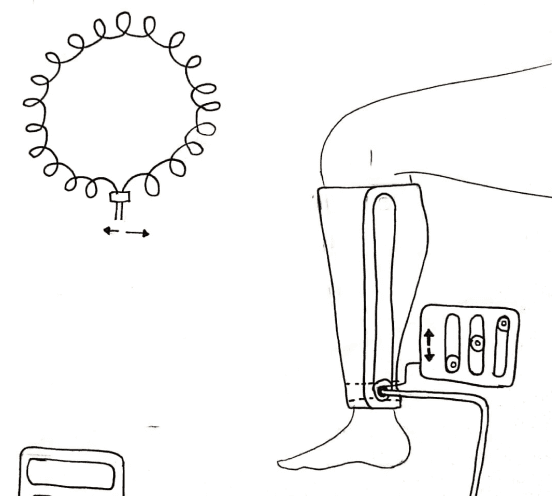

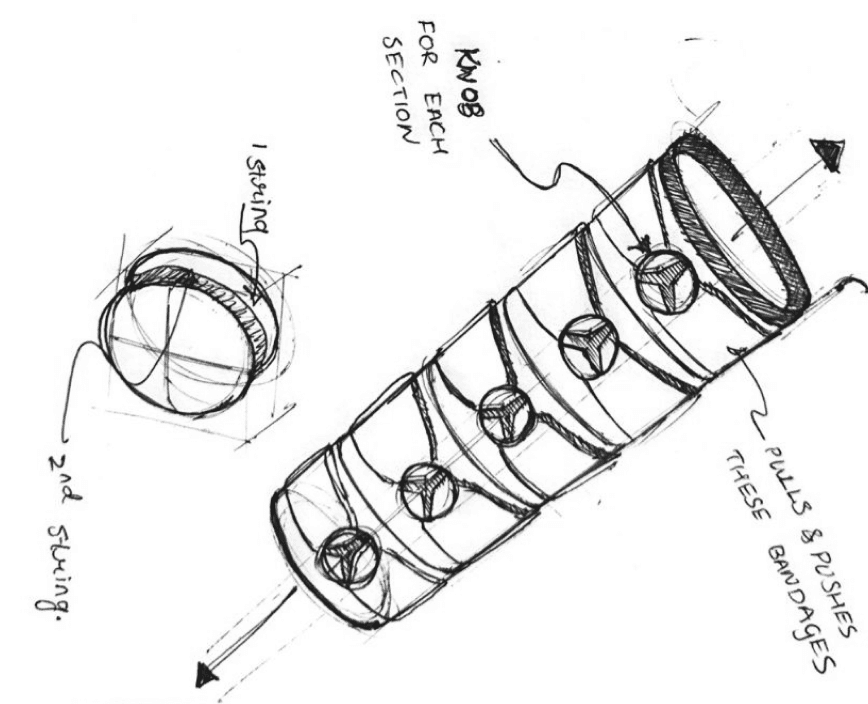

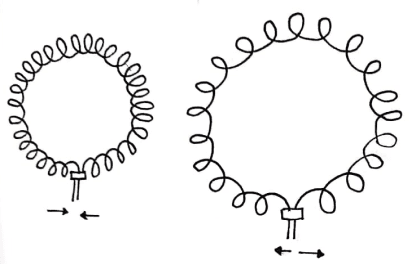

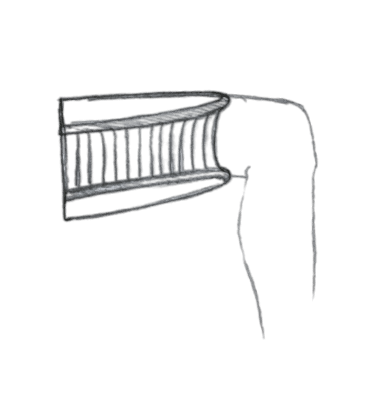

Push / Pull mechanism with the help of string

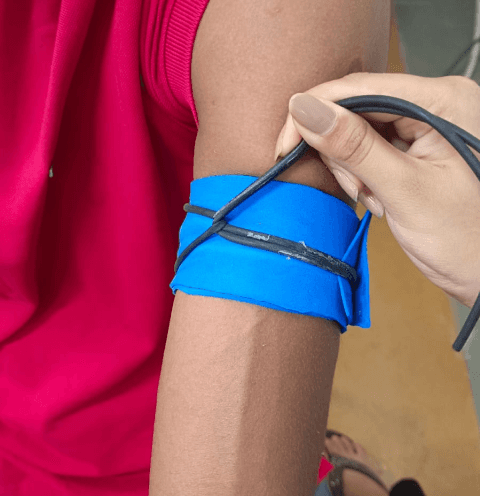

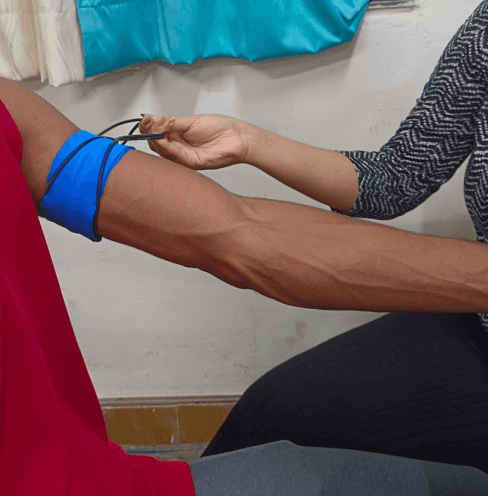

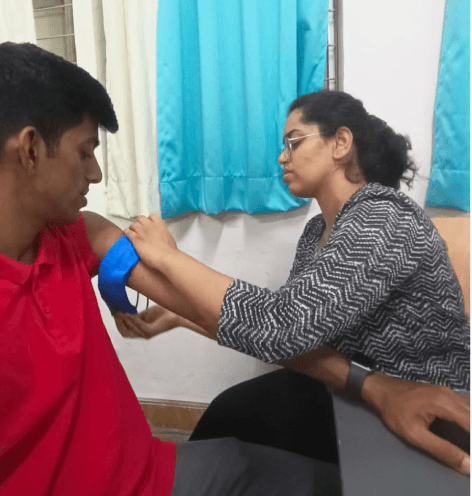

wrapping the belt around your arm
With the help of motors, the strings can be pulled accordingly
Bulging Veins
The user can feel the pressure ones the strings are pulled.
Pressure is released once the strings are untightened.
Velcro Loop
Velcro Strap
Air compression pumps
Layer for temperature controlled (heat) treatment
Strings
Motorized Knob
Control Unit
Scroller

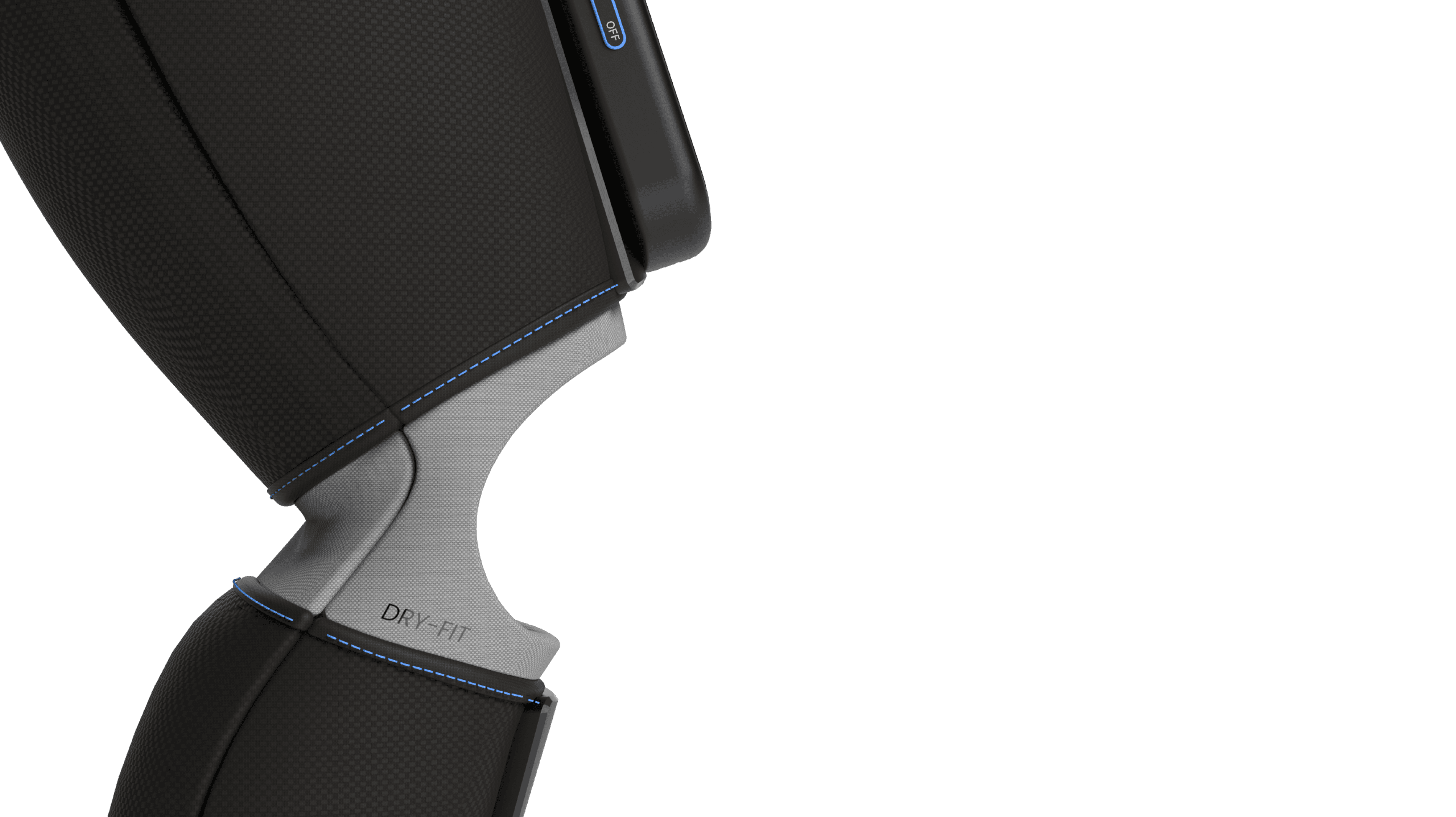

Cavity for Knee
For easy movement of the leg
Contains individual tightening mechanism and linear motors which helps for a better blood flow and direction.
Velcro mechanism is used for wrapping techniques.
Controls air cushions, frequencies intensities of tightening.
Space for mechanism
Branding
On/Off Switch
Outer
Protective layer
Flexible Material
Velcro Straps
Cavity for ankle
5
4
5
Outside
Inside

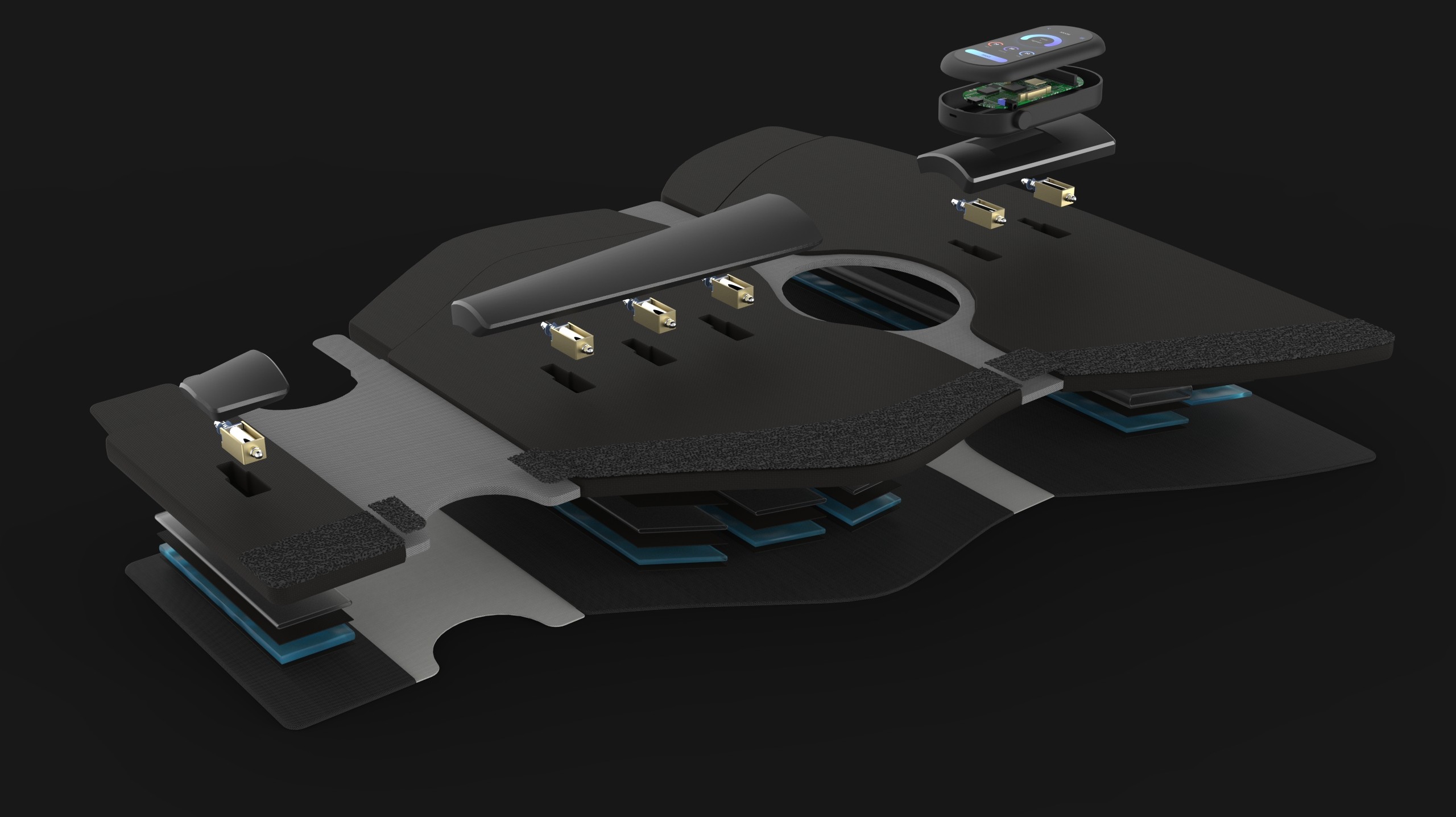

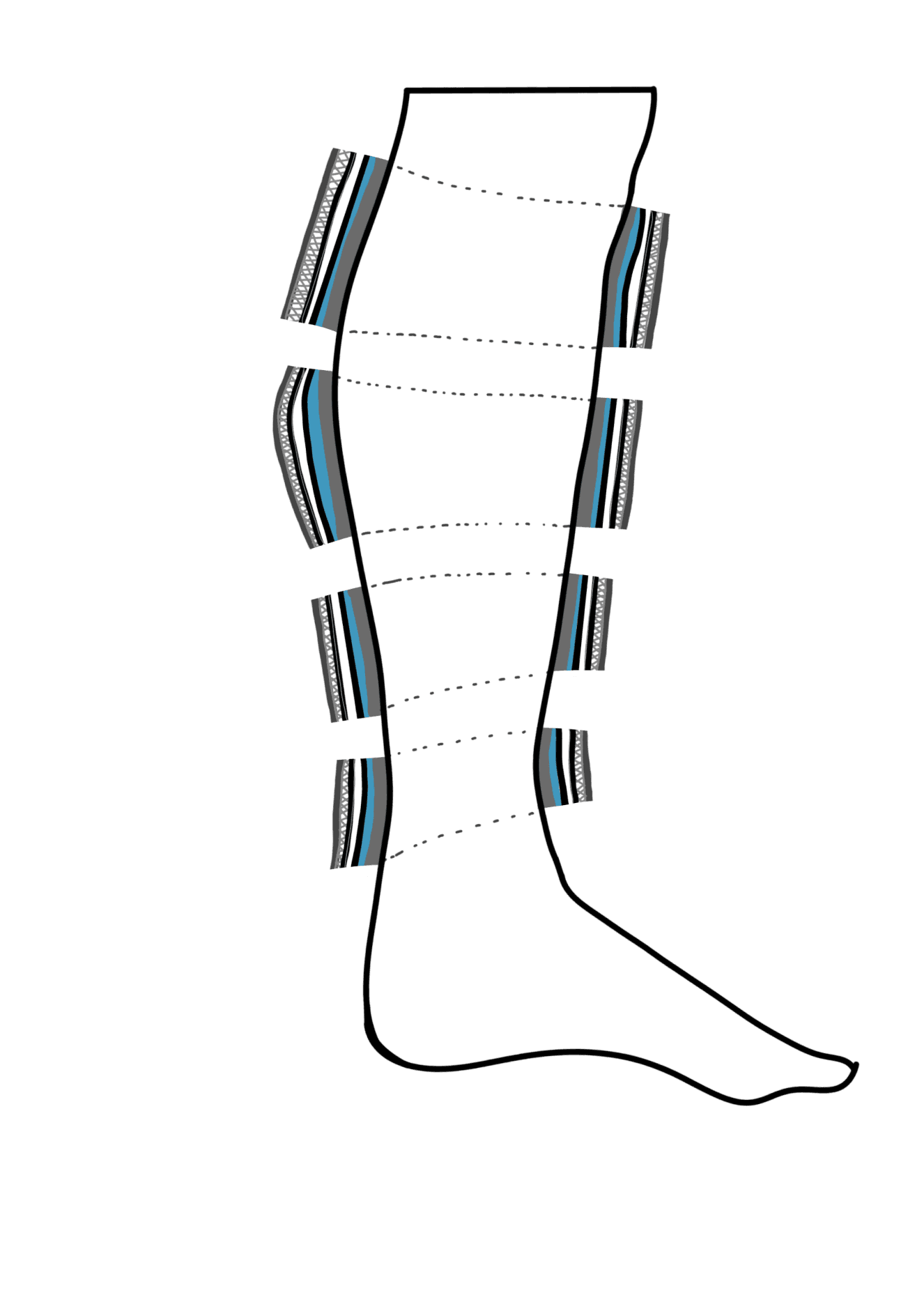

Air Cushion and tightening Mech.

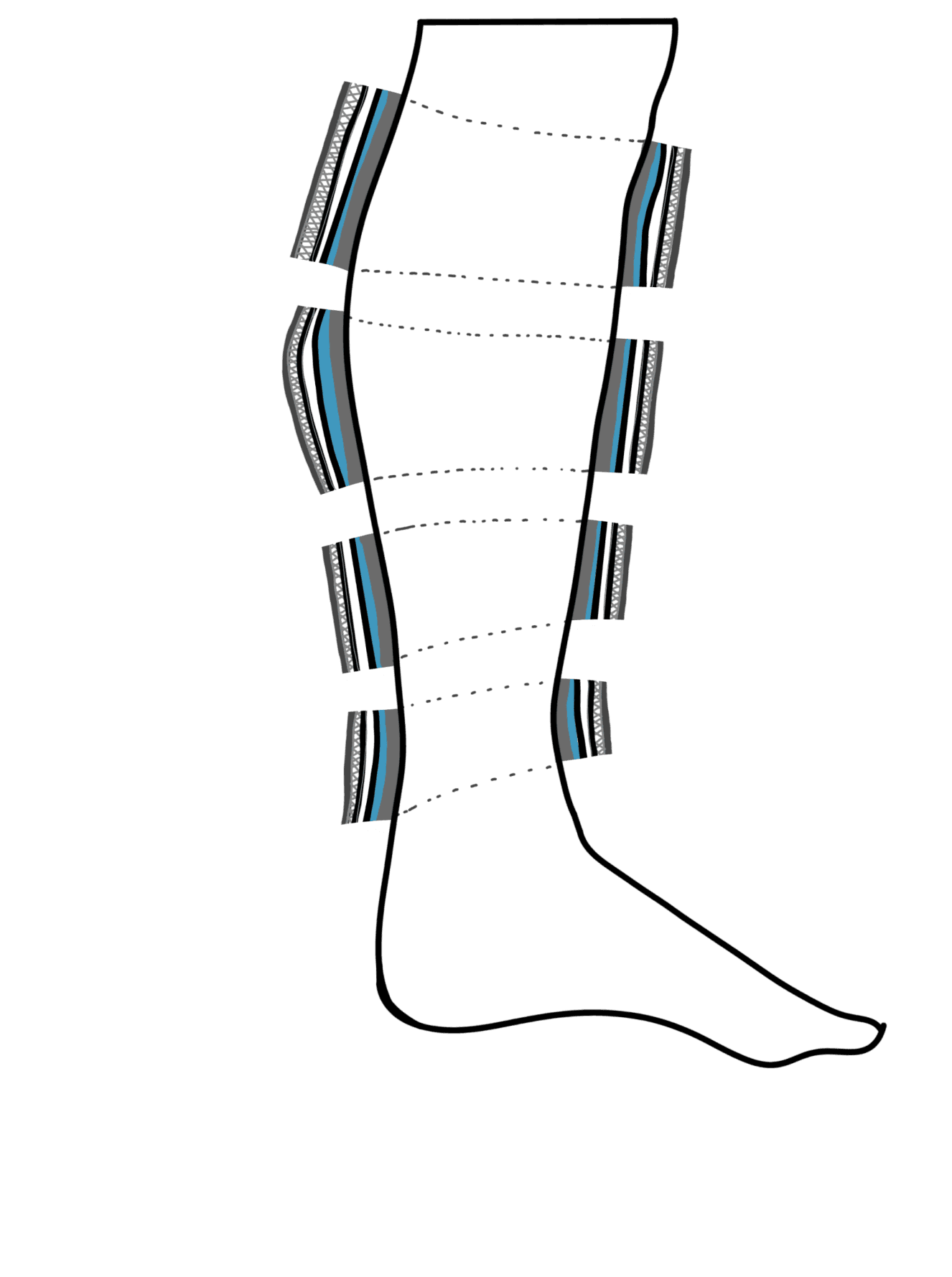

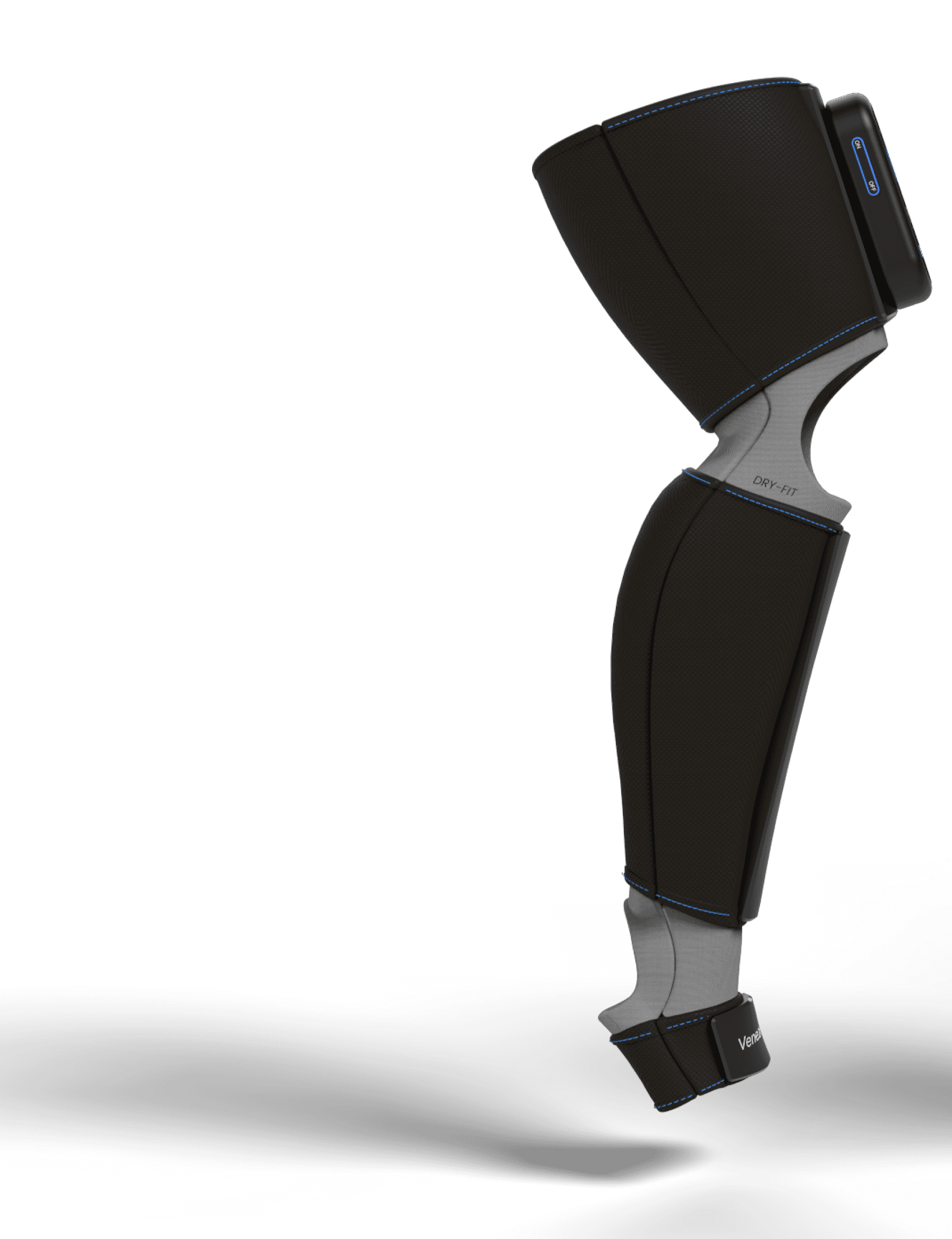

The internal configuration of the device is divided into 6 sections which have 6 air cushions and 6 tightening mechanisms.
The air (Air cushion) in these sections stays constant while the tightening mechanism are activated in patterns which help in Blood pumping and also directing the blood flow.
BUT HOW DOES THIS WORK?
Division into 6 sections
2 sections for thighs.
3 sections for calf.
1 sections for Foot.

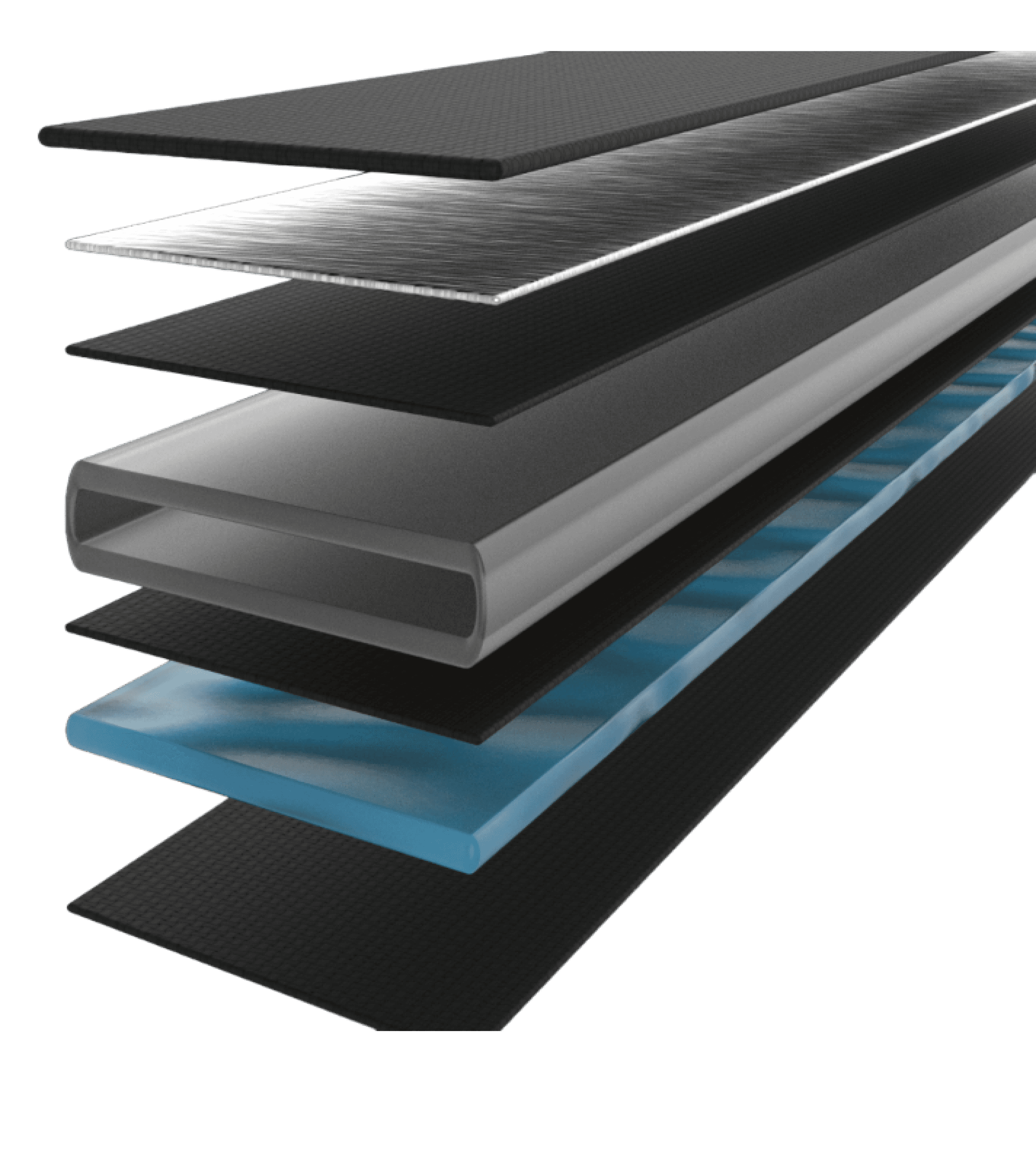

Insides the Section !

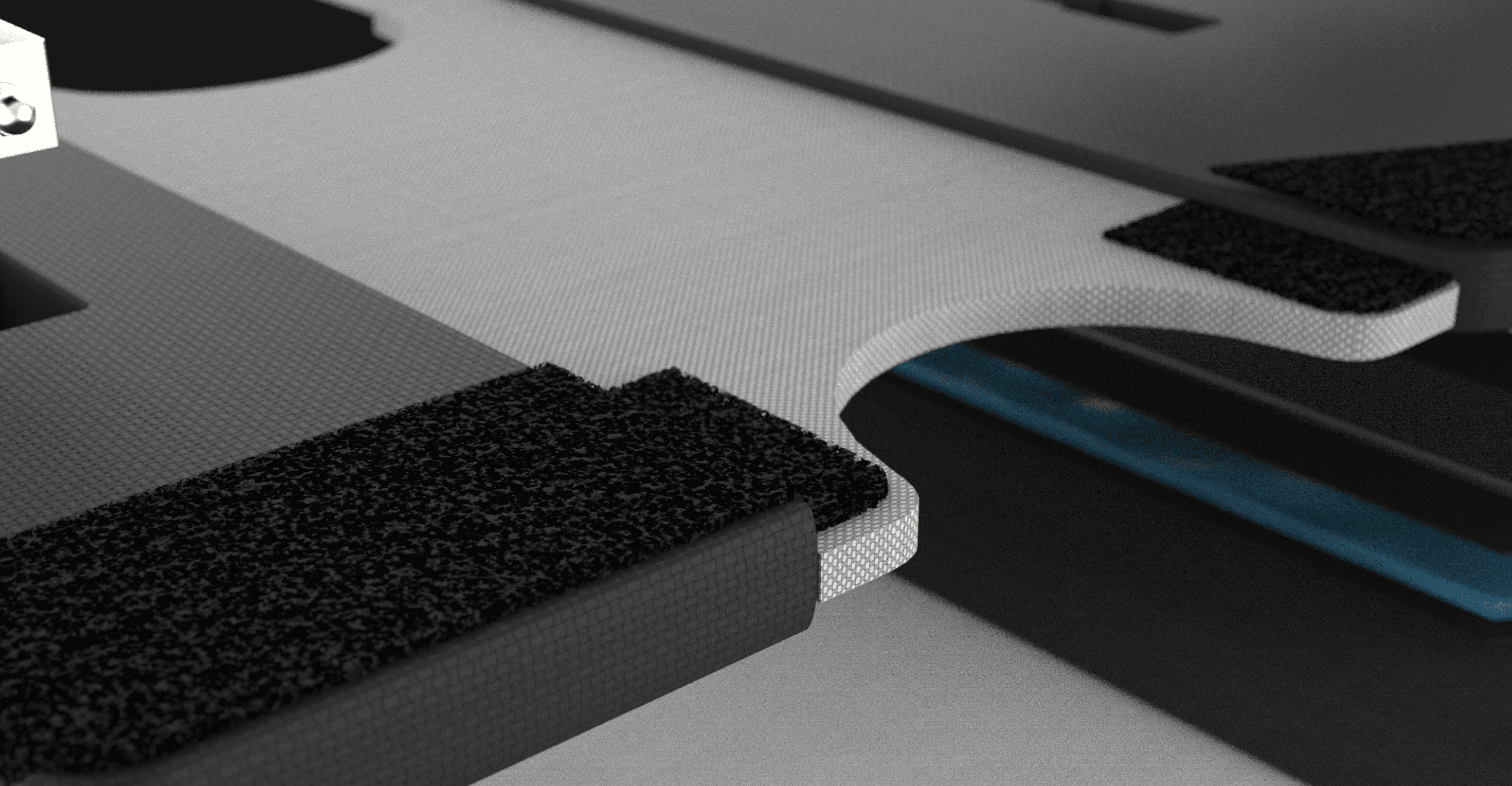

Polyester fiber
Polyester resin Band
Section fabric
Air pocket
Section fabric
Hypo allergenic Breathable fabric
Heatable gel
Solenoid
Inside Mechanism of 6 individual sections
Without pressure
Non - tightened bands , do not provide pressure
Tightened bands , provide pressure
With pressure
With the help of this mechanism, blood can be
Pumped and directed in a particular direction easily !

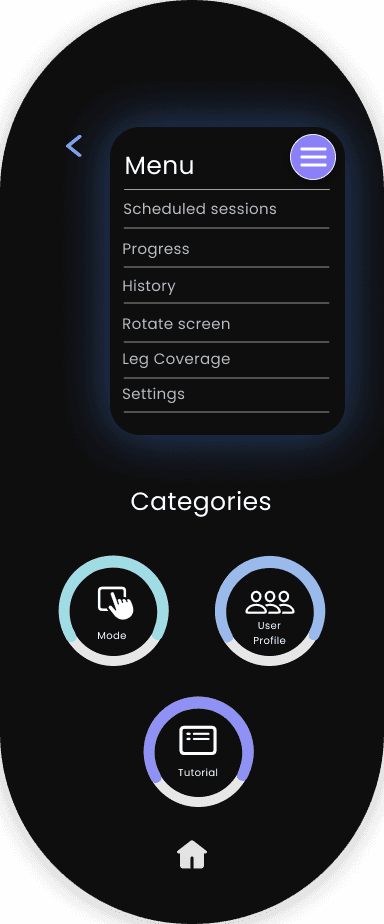

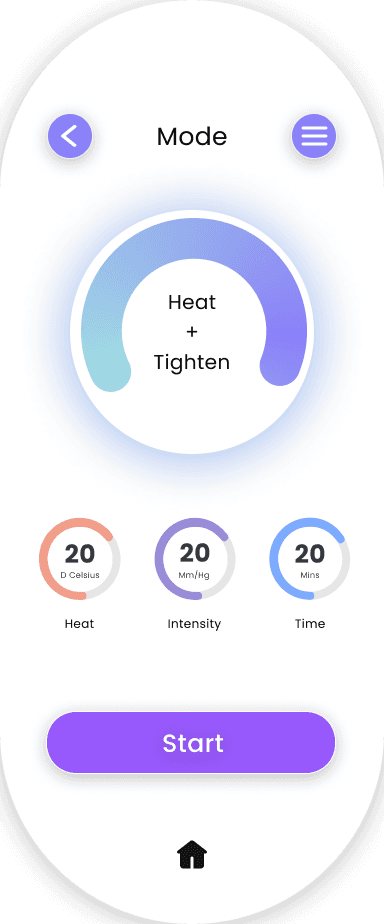

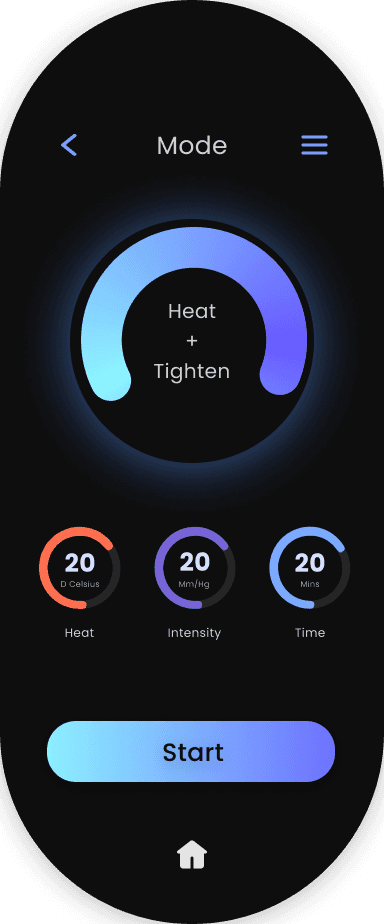

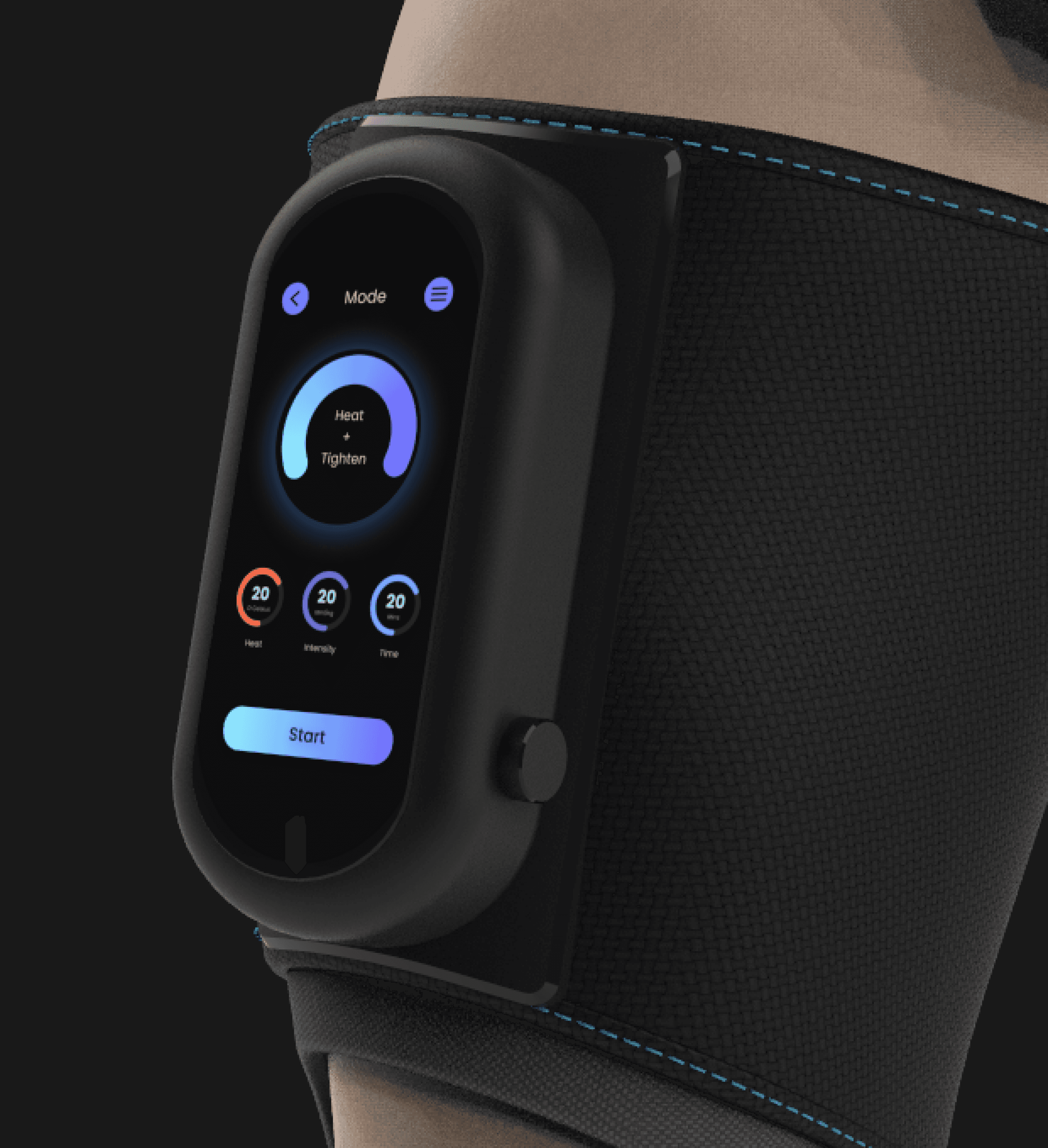

Mode

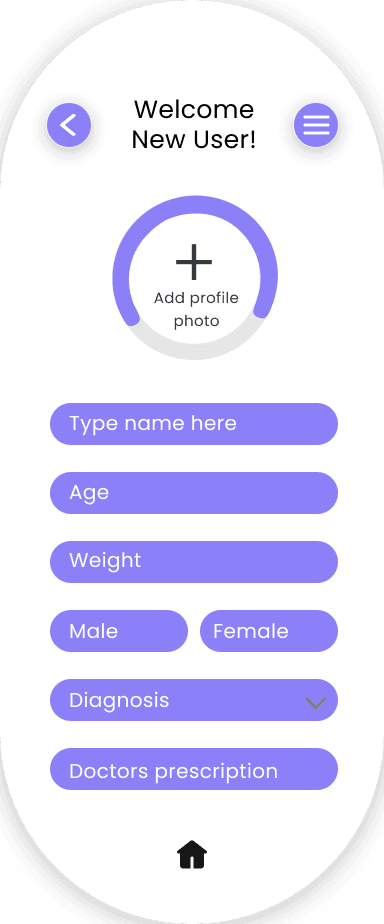

User Profile

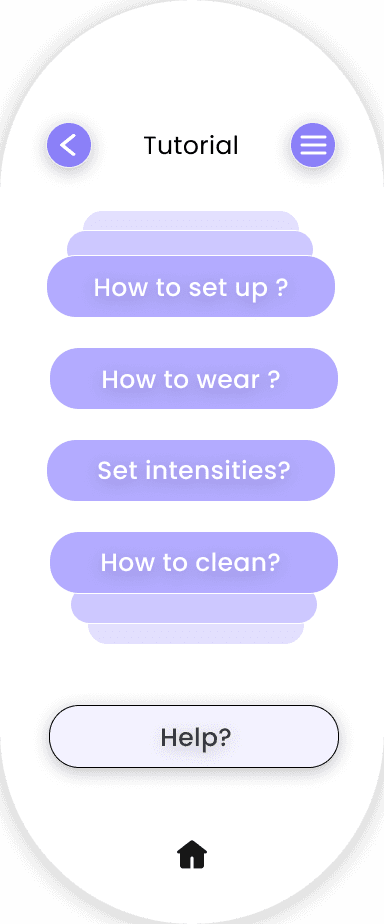

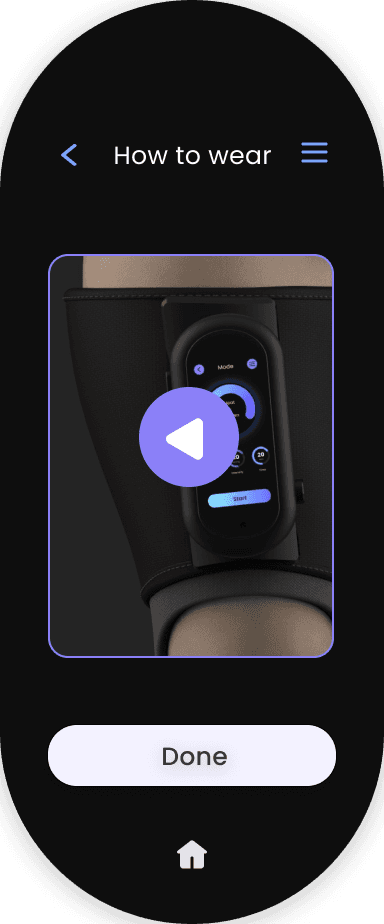

Tutorial
Easier & engaging interface
to use and understand.
Place on the thigh so that user can access the interface easily.
Display rotates according to usage
Features:
Different frequencies for each Section.
Different intensities for each section.
Timer (Eg. 15/20/25 mins).
Modes according to activation of sections.
Presets.
Schedule alerts.
Tracks progress.
Temperature controlled treatment.
AI Assistance.
Multiple user profiles.

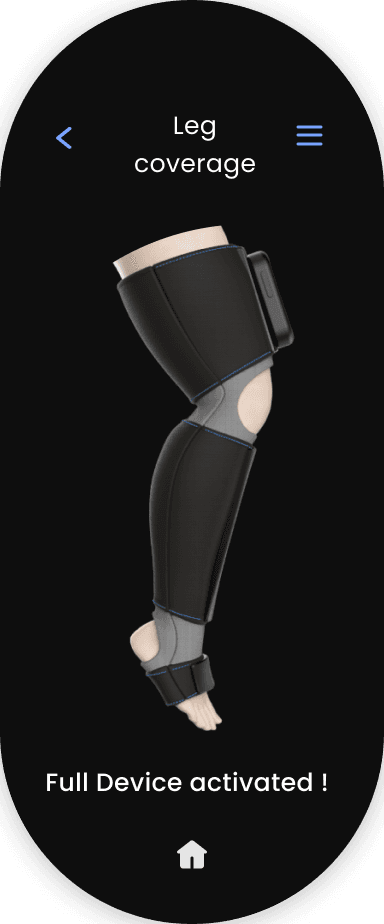

Body coverage options.
Veneze
Veneze
Veneze

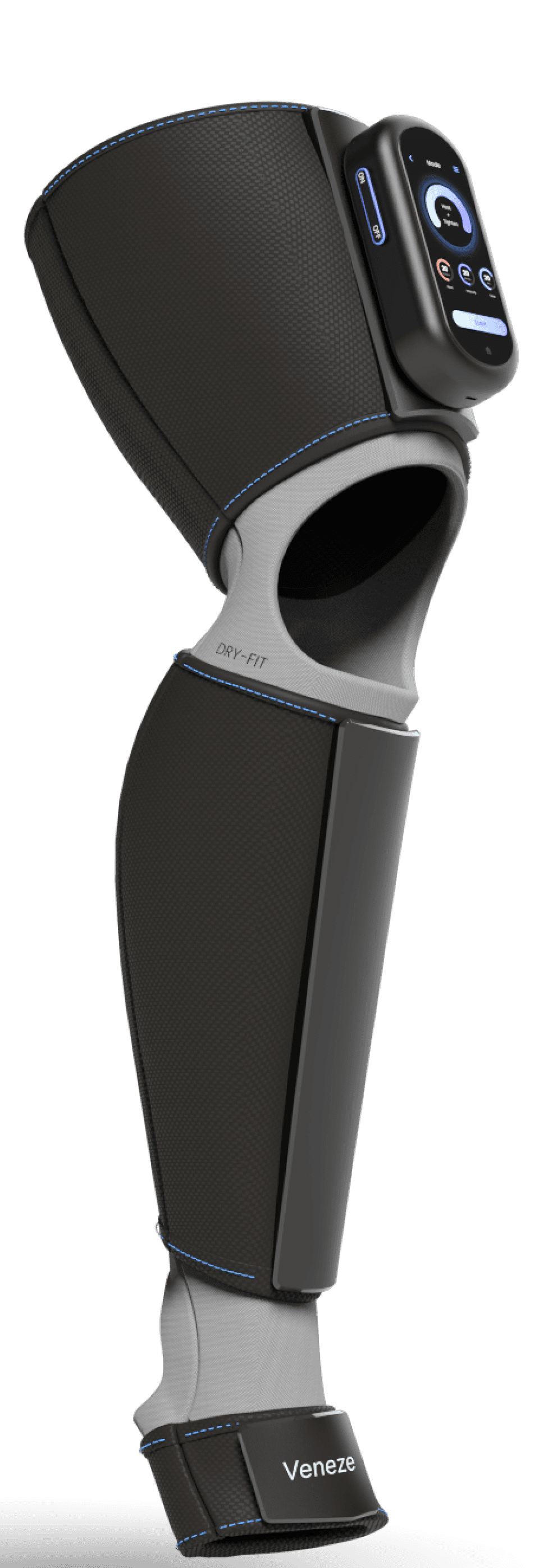

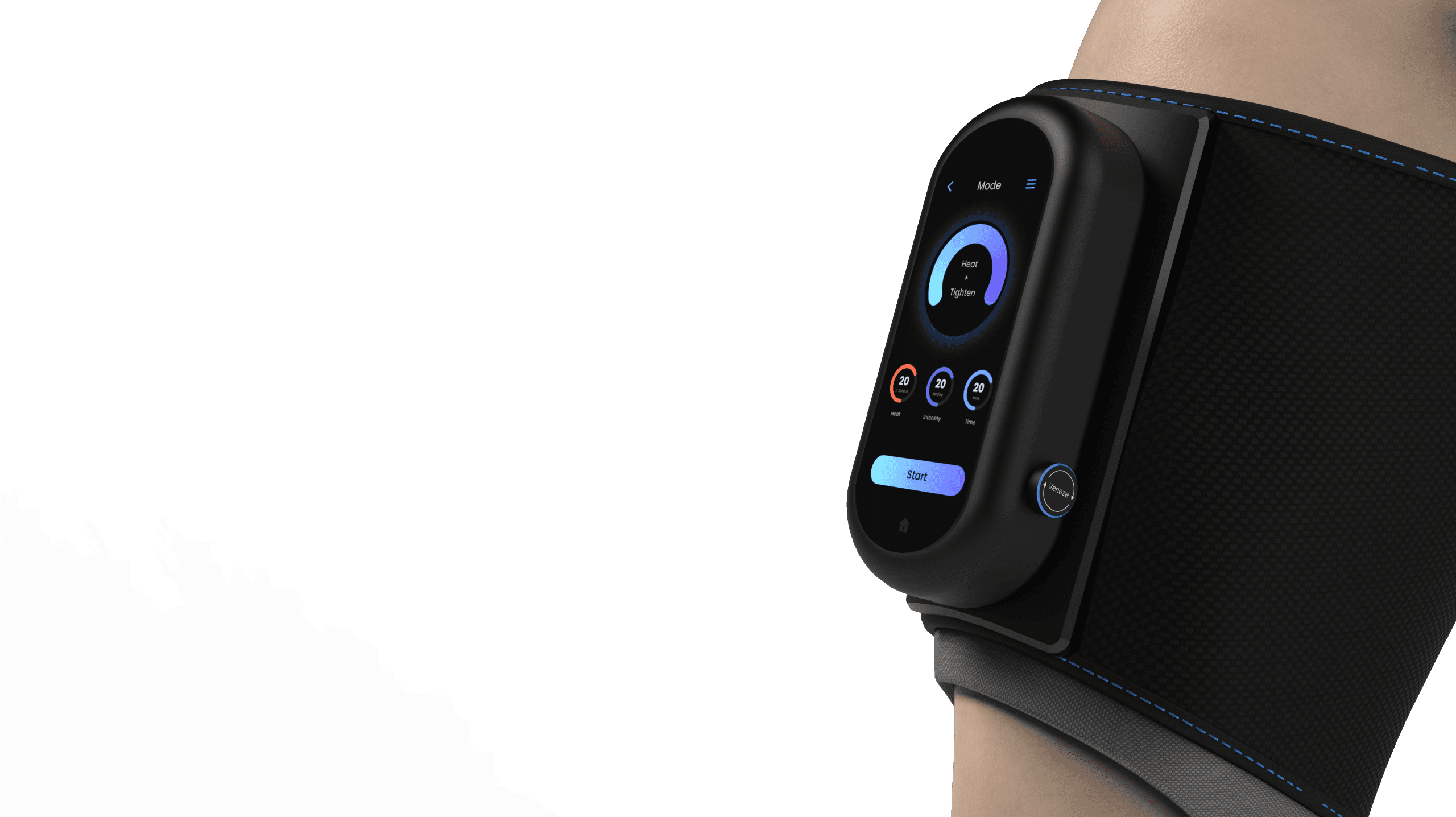

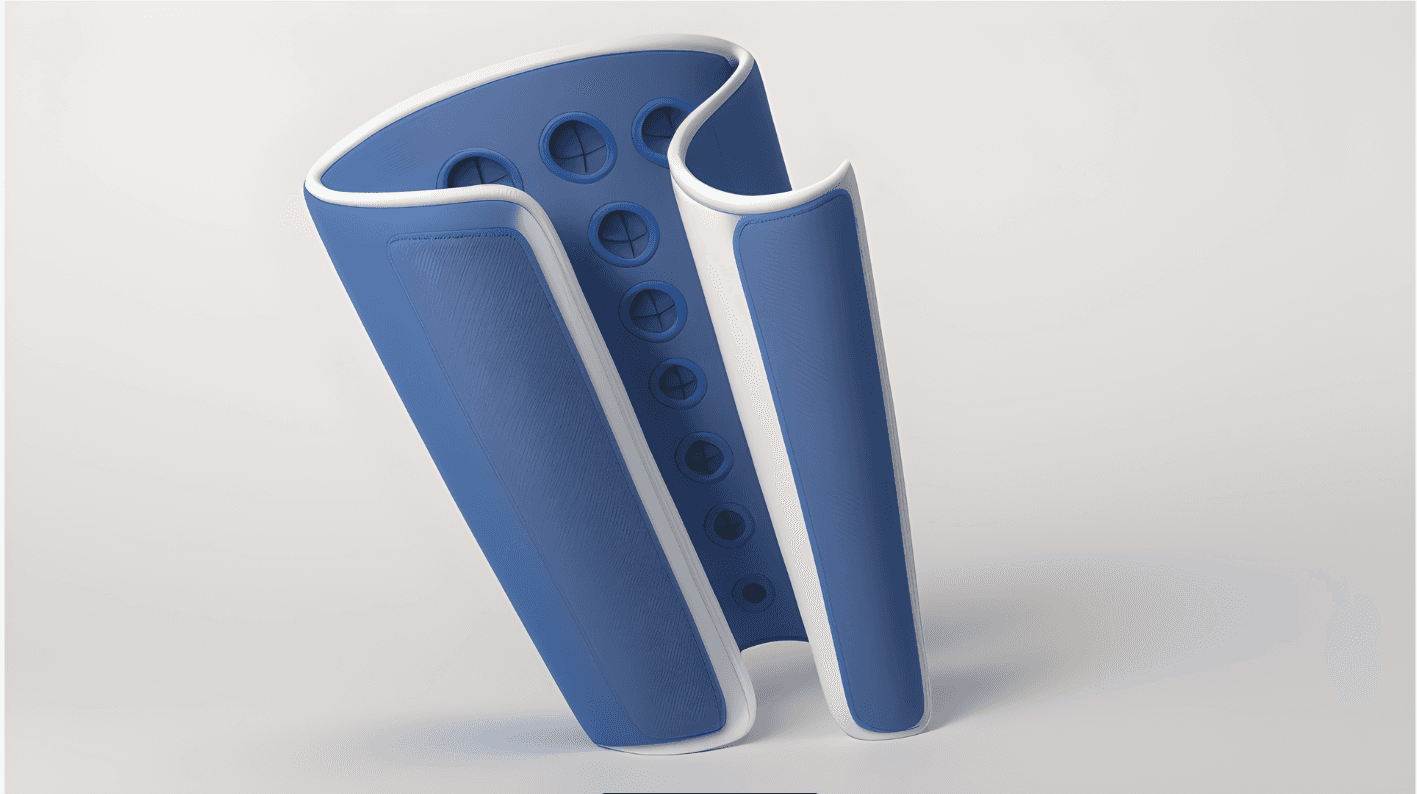

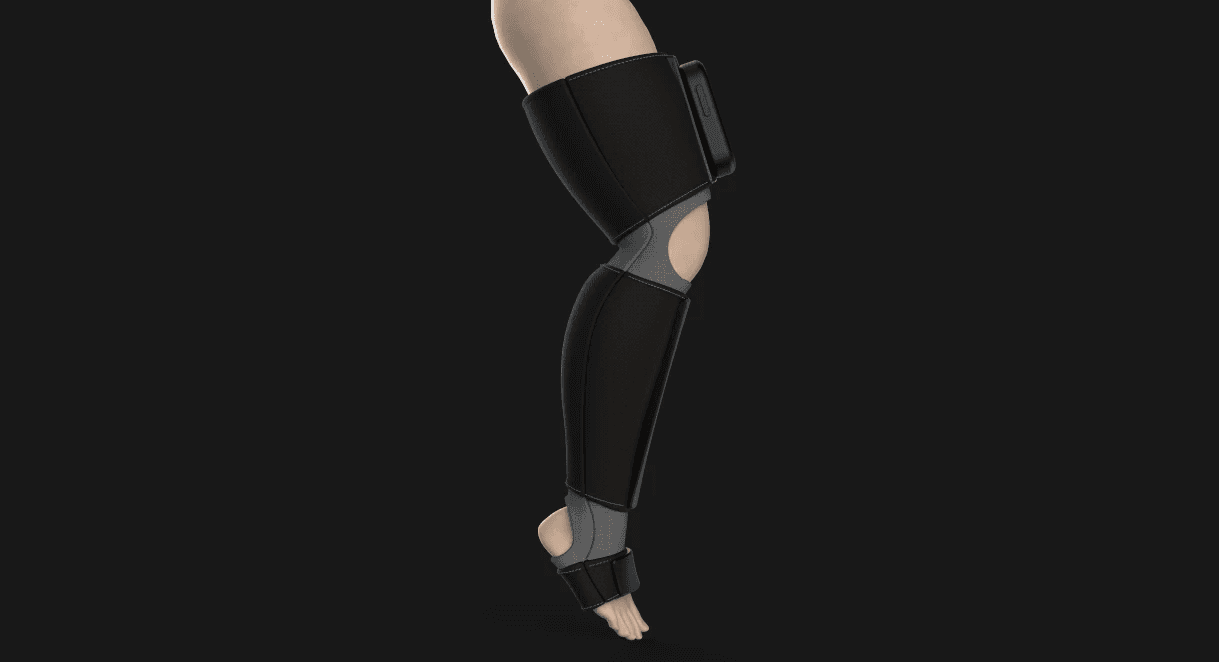

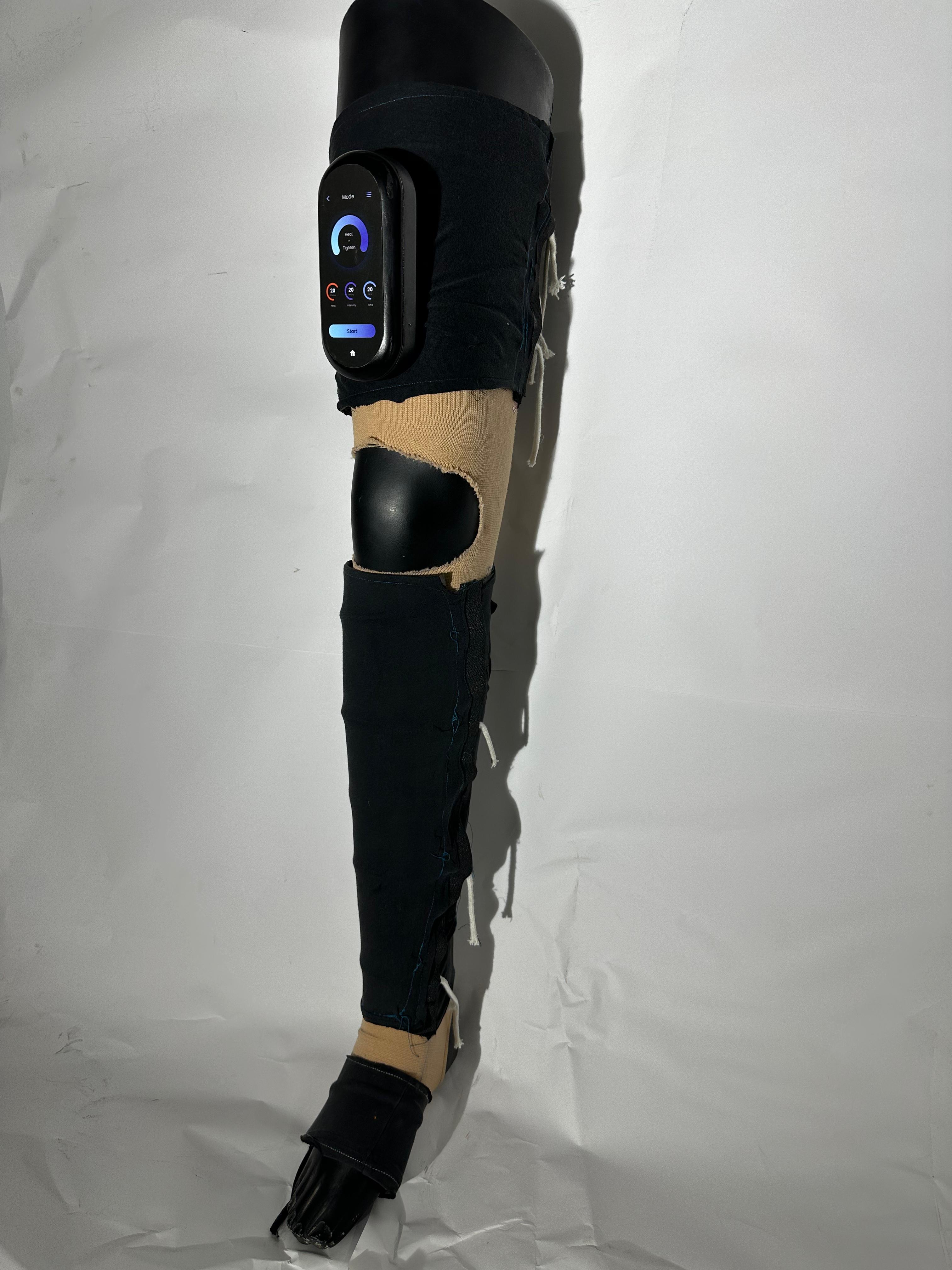

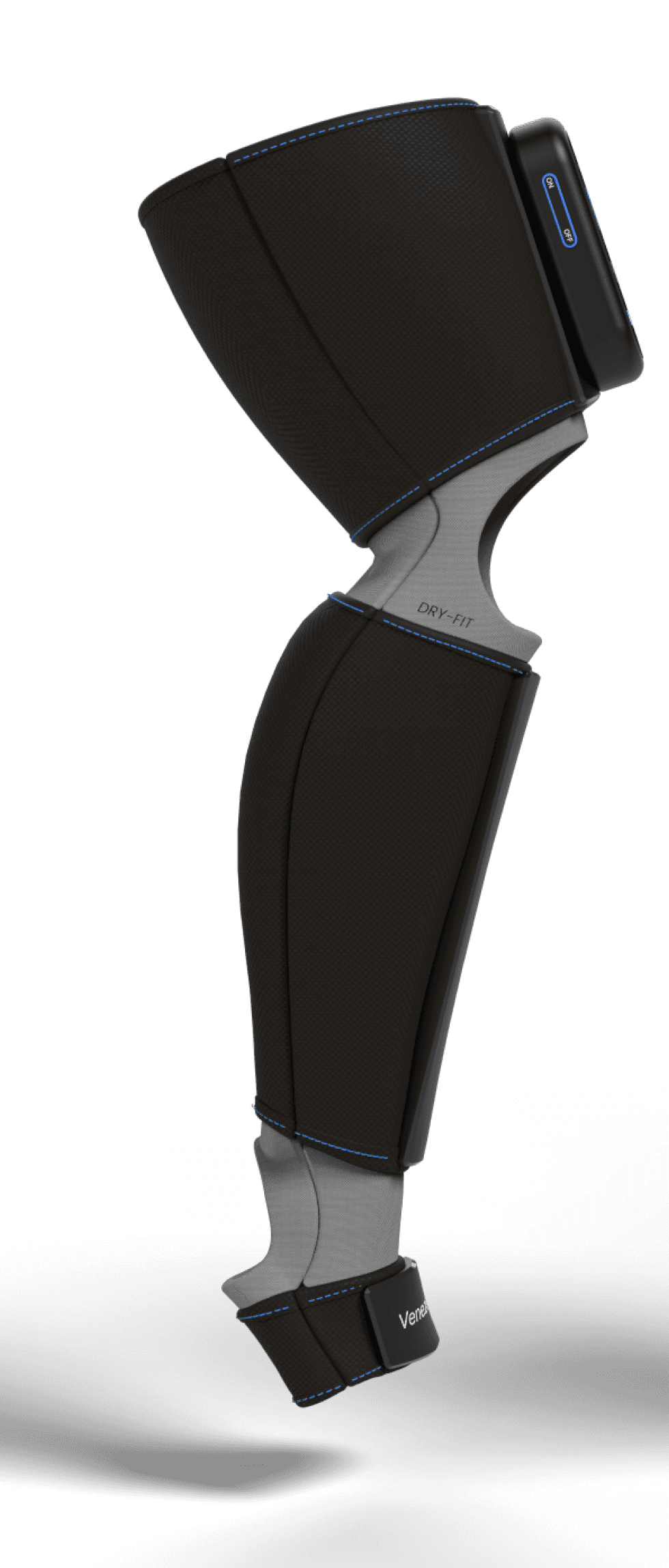

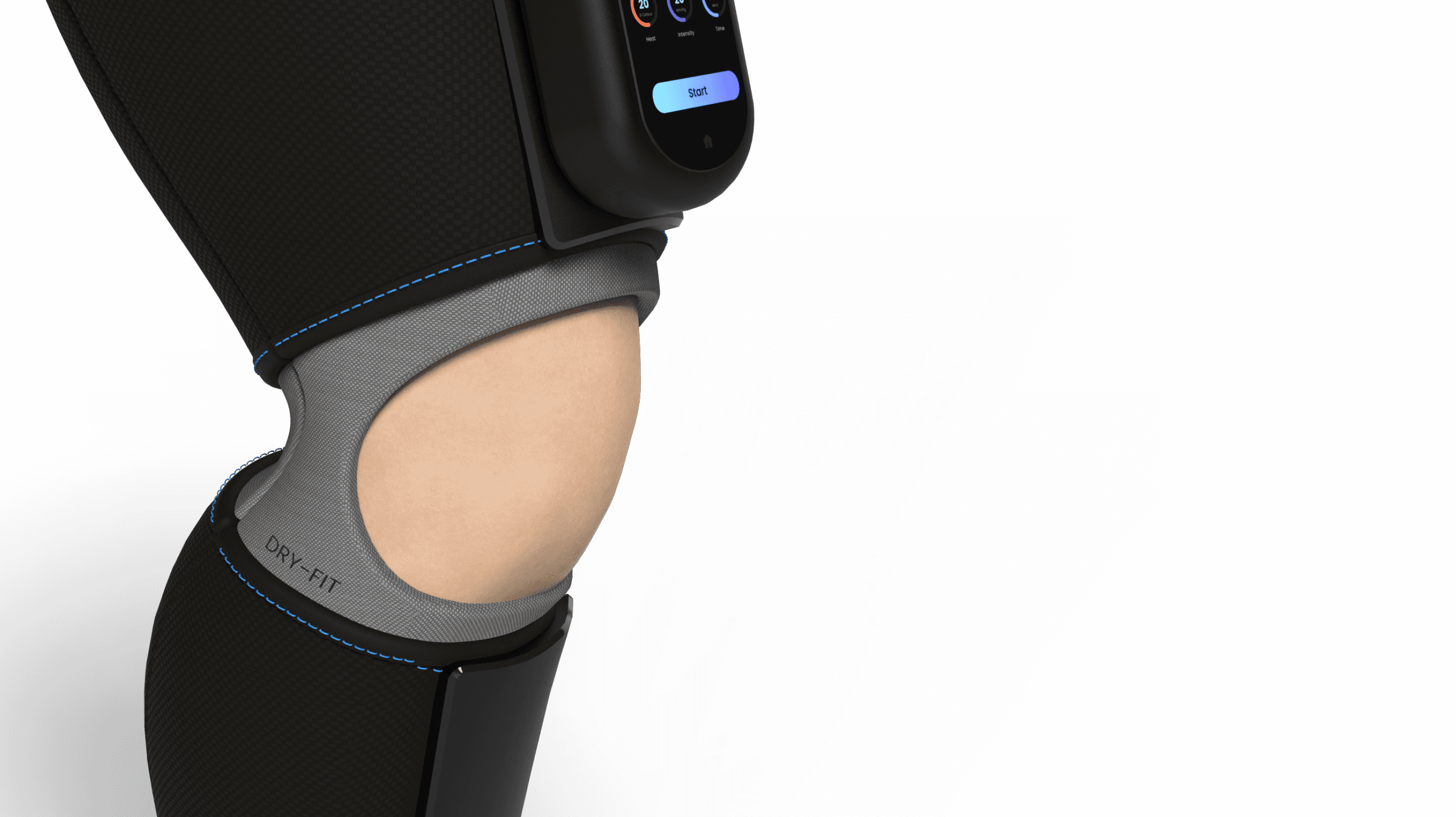

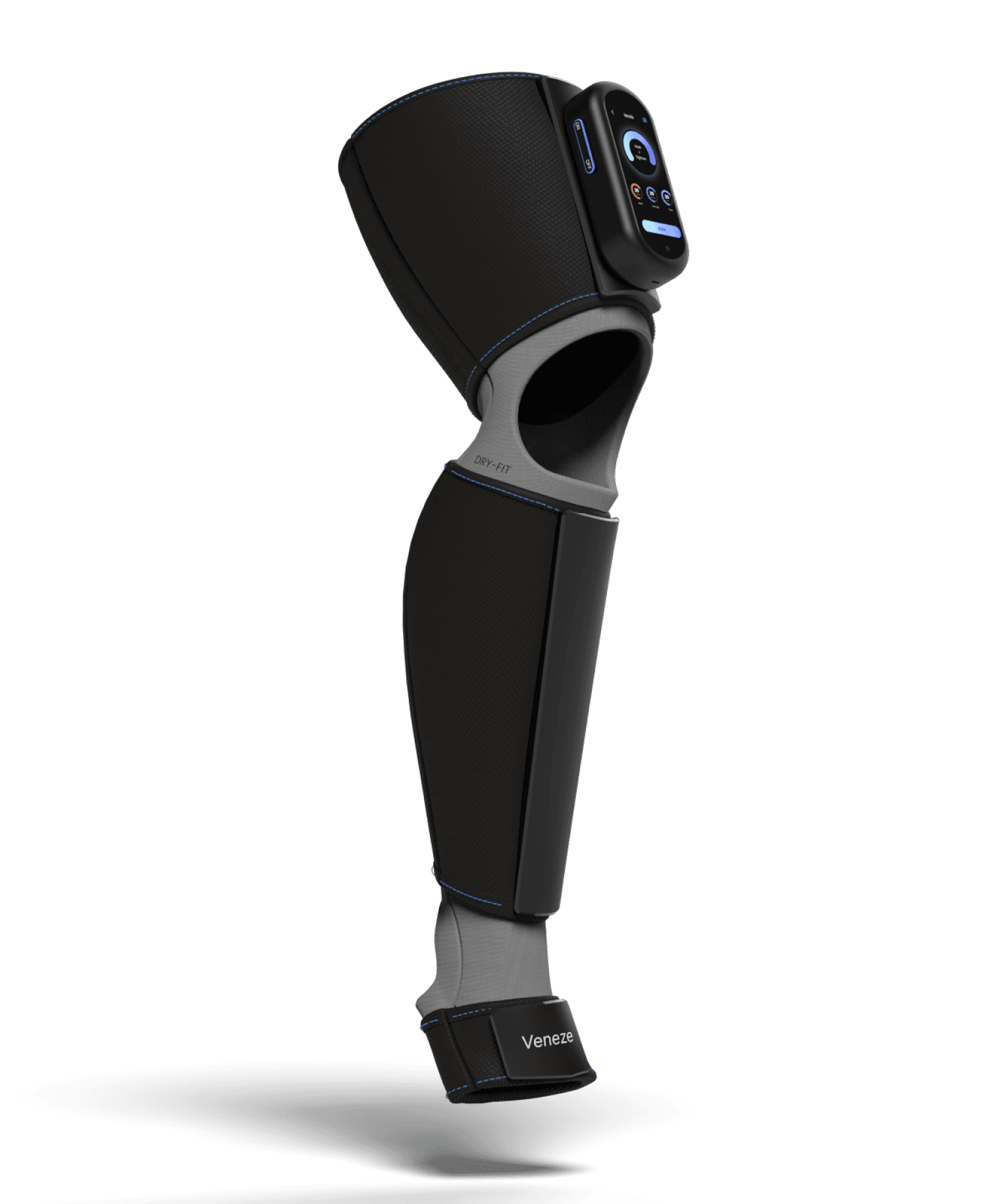

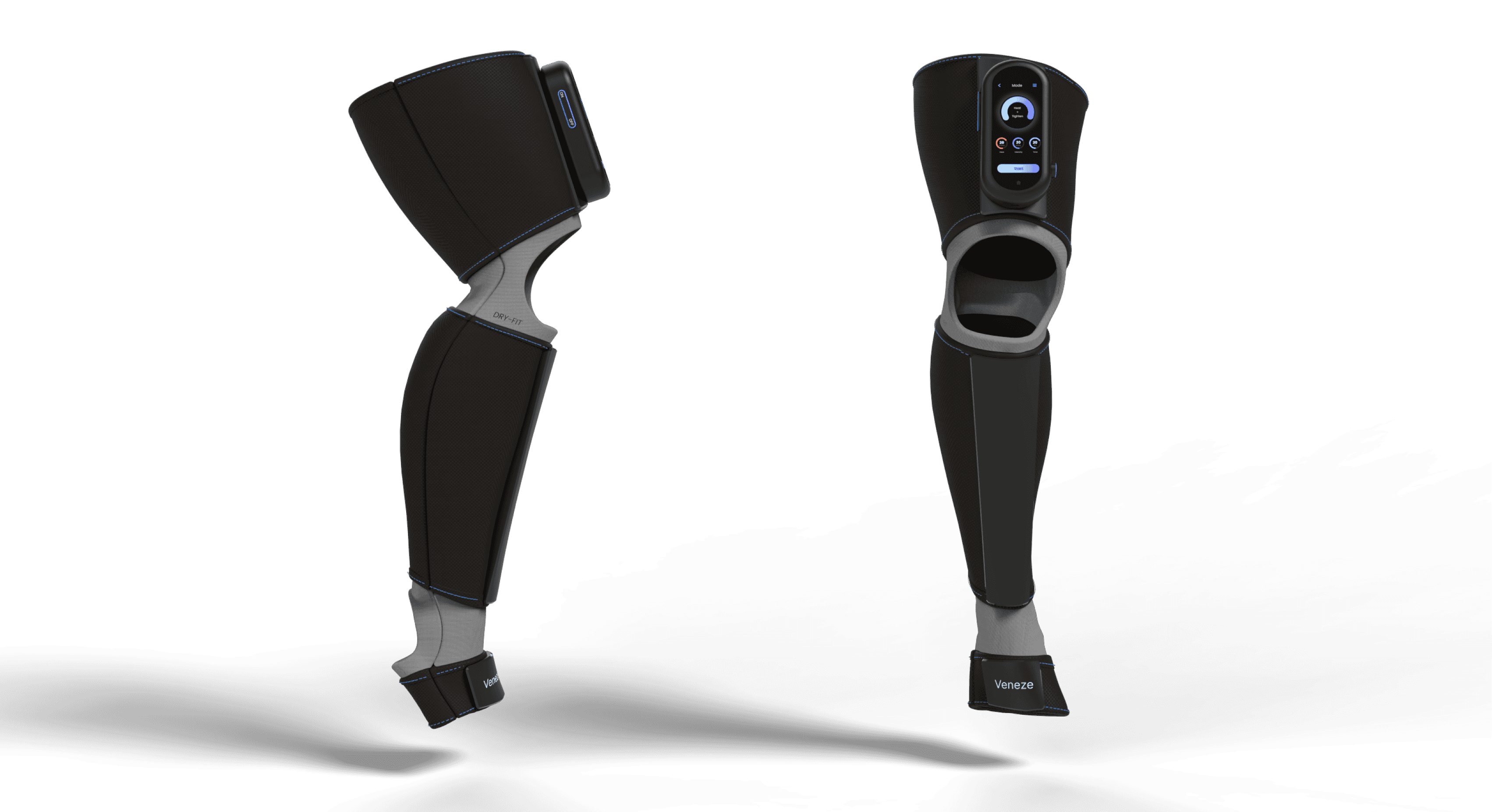

Veneze is a wearable device for home-based physiotherapy, providing personalized leg rehabilitation exercises and reducing muscle soreness, decreasing swelling, and speeding up recovery time and performance. It also provides real-time feedback and remote monitoring for enhanced patient engagement and recovery.
3
2
1
6
4
3
2
1
6
Pumping areas are divided into parts
Easy Movement .
Cavity for Knee
Material Selection.

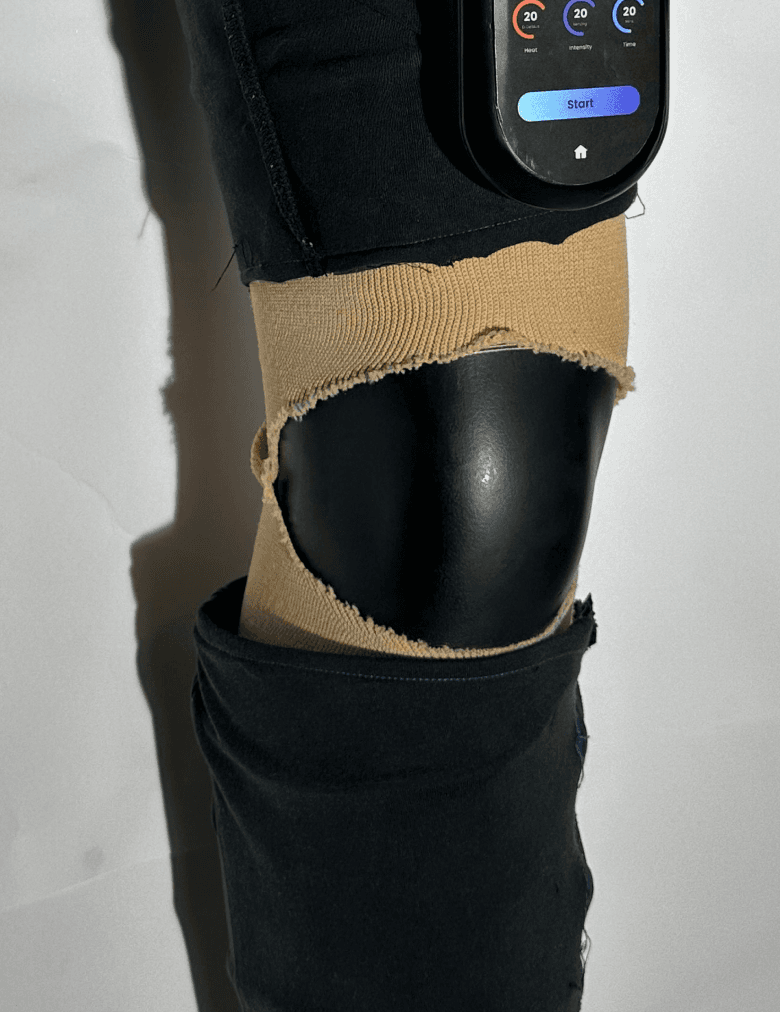

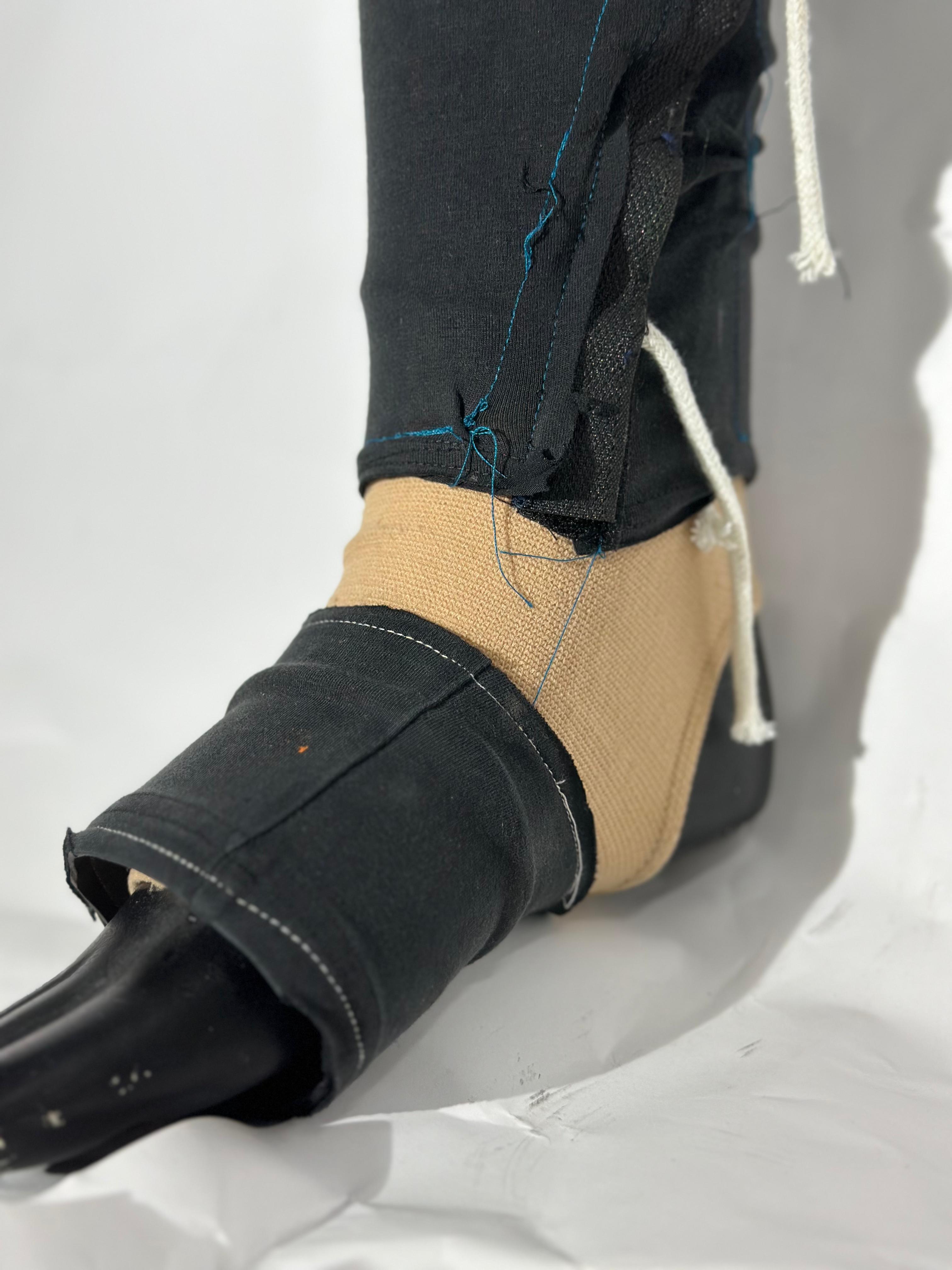

Prototyping
ABS Plastic
Polyester
ABS Plastic
Soft Polyester
Velcro
Nylon Threads
Hypoallergenic fabric
Durable and lightweight.
Durable and has excellent tensile strength.
Secure fastening and precise adjustment
Skin sensitive ,non irritating and provides comfort to the skin.
Strong and long lasting.
Set 1 -
Contains individual strips/bands, each with a set of layers, that aid in compression flow by being in sync with the actuator and HMI.
This sleeve covers the majority part of the Feet, Ankle to Calf, and Thigh.
Set 2 -

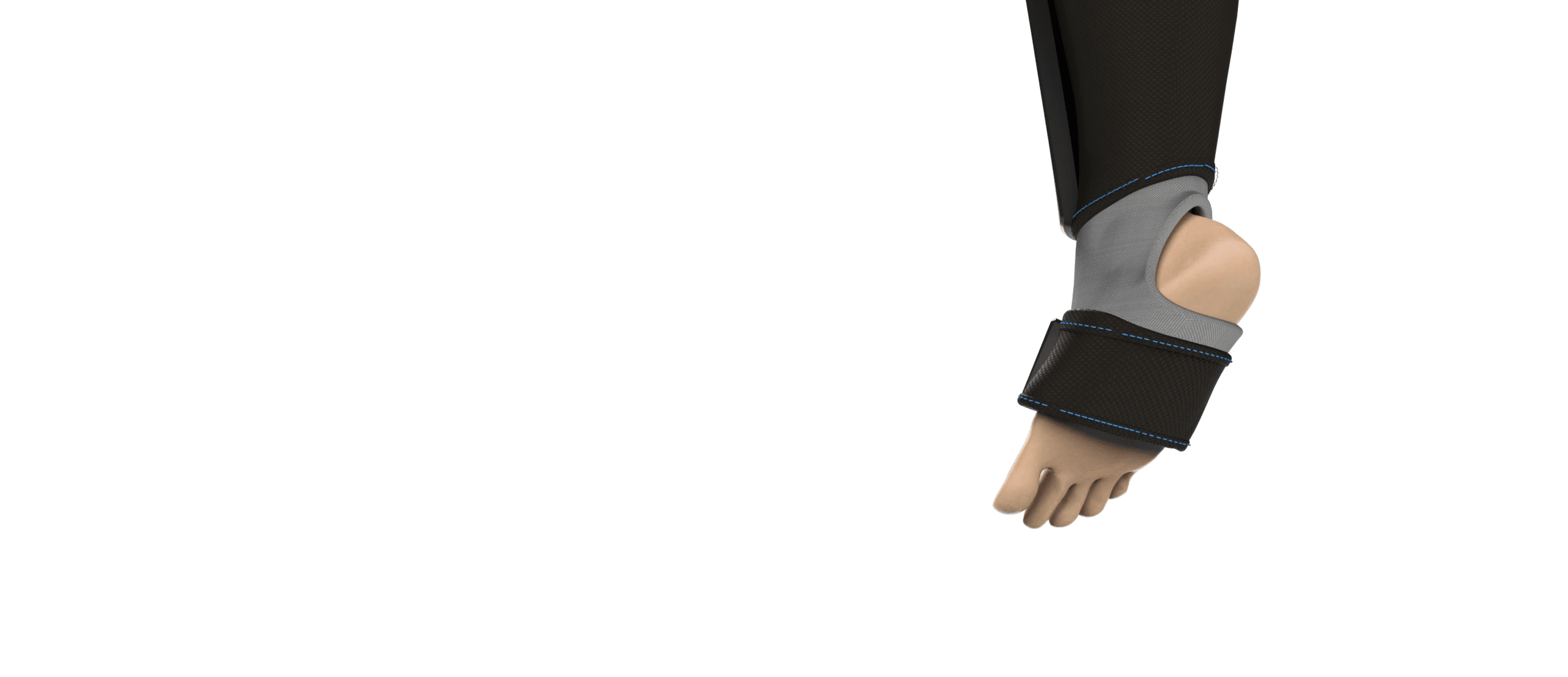

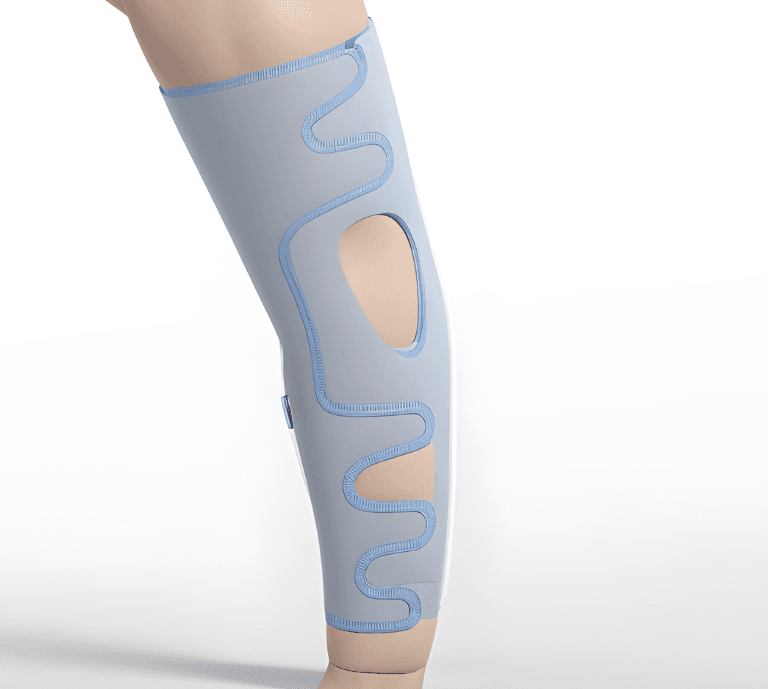

This sleeve covers other leg parts such as Knee and Heel. It simply has a stretchable, flexible hypoallergenic breathable fabric.

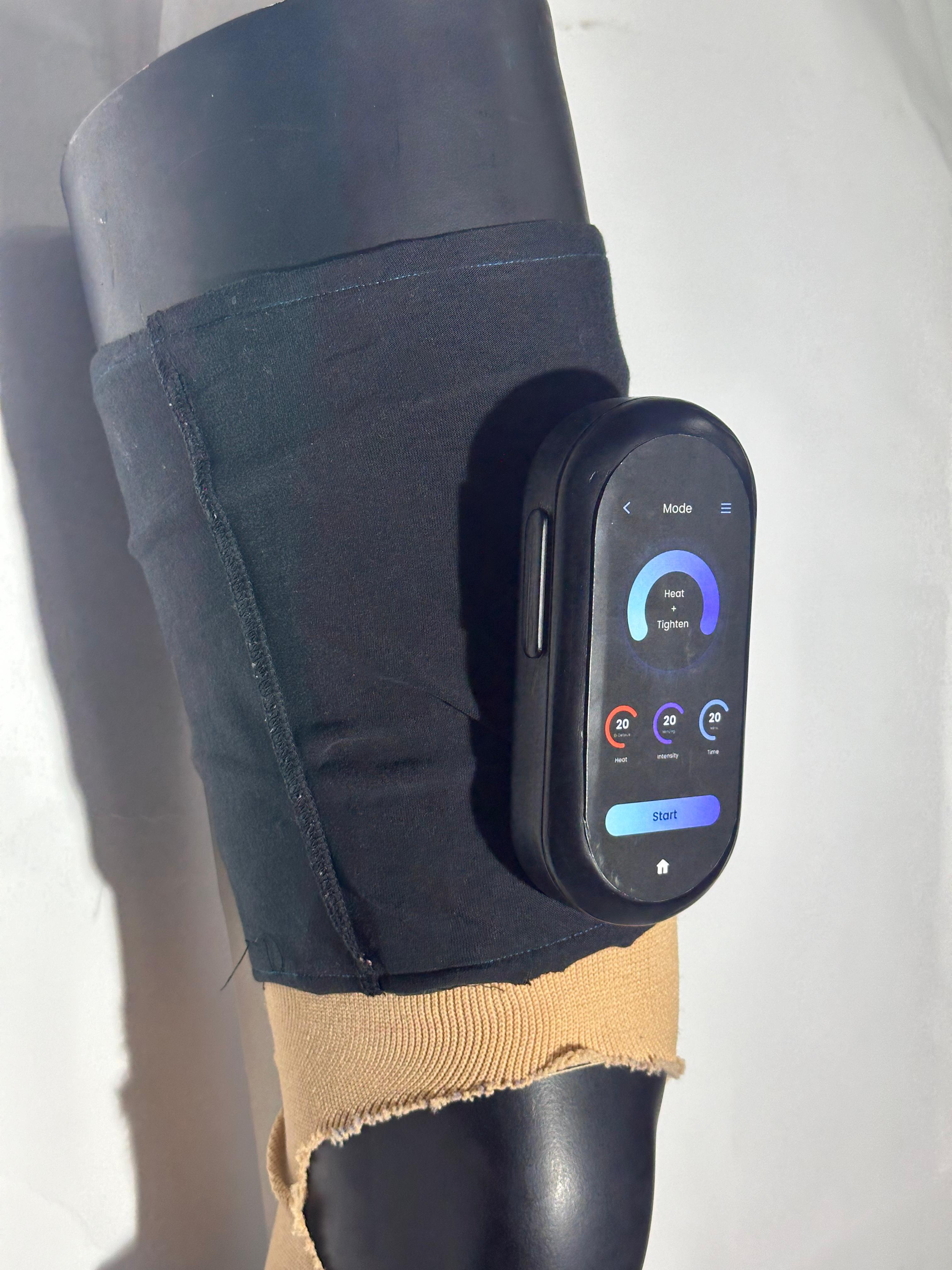

Sleeve

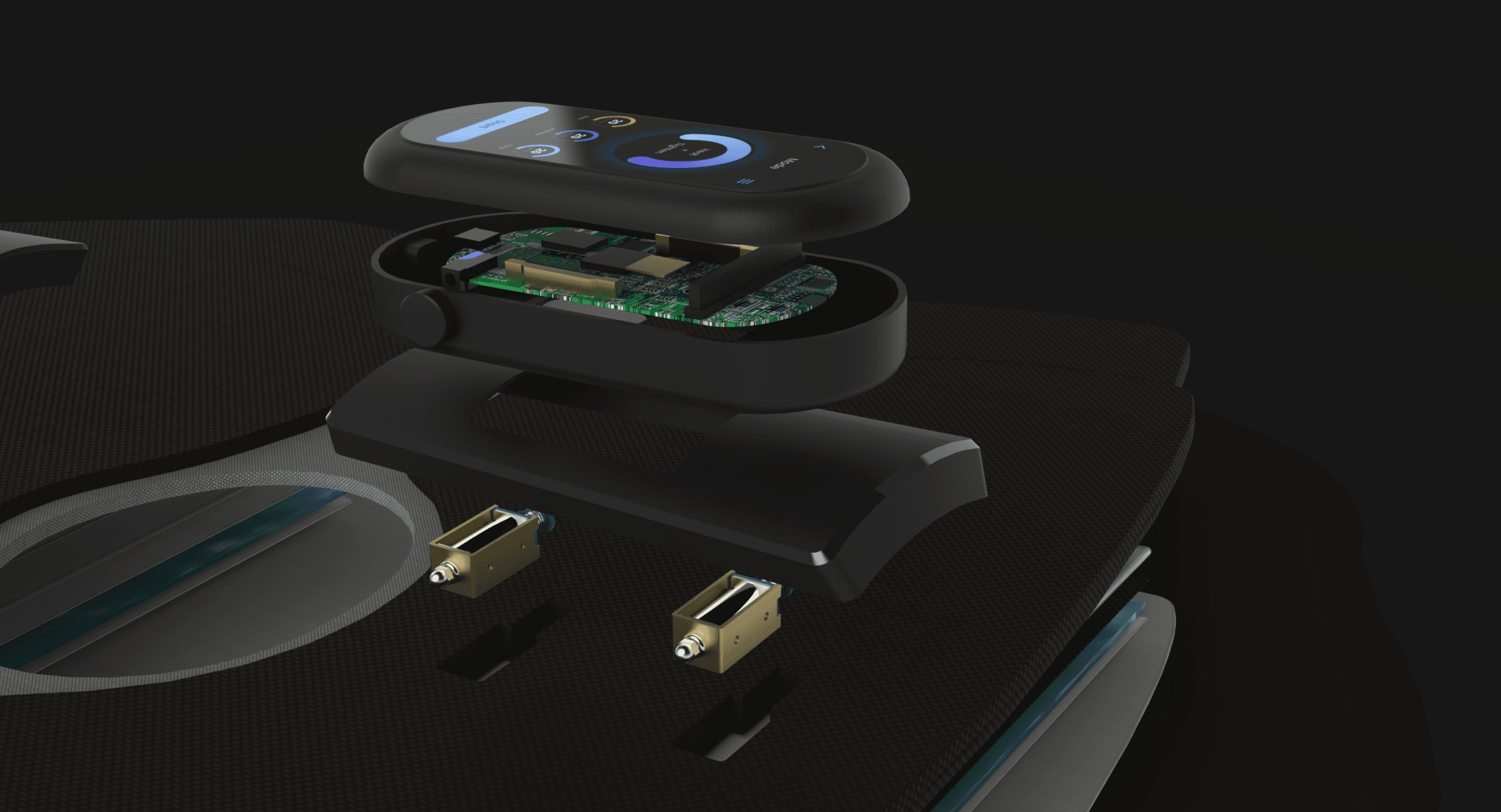

HMI + Actuator Controls
HMI - This part acts as the mind of device that regulates the compression intensity, heat controls, and helps the patient to use the device efficiently.
Actuator- This part is the key element that solely helps in the compression flow and intensity, it further is joined with each section in the sleeve for the same
