Hand pump
No pressure return valve
Divider
Body
Air pressure control valve (Rotatory)
Inner pipe
Nozzle
Tube that holds pump

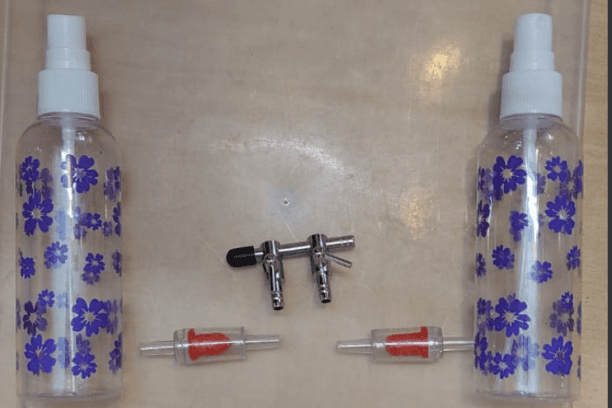

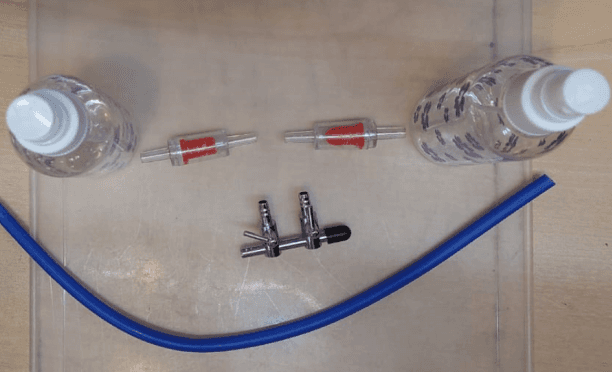

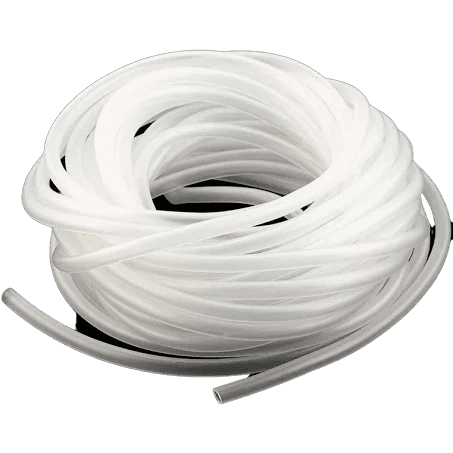

Components

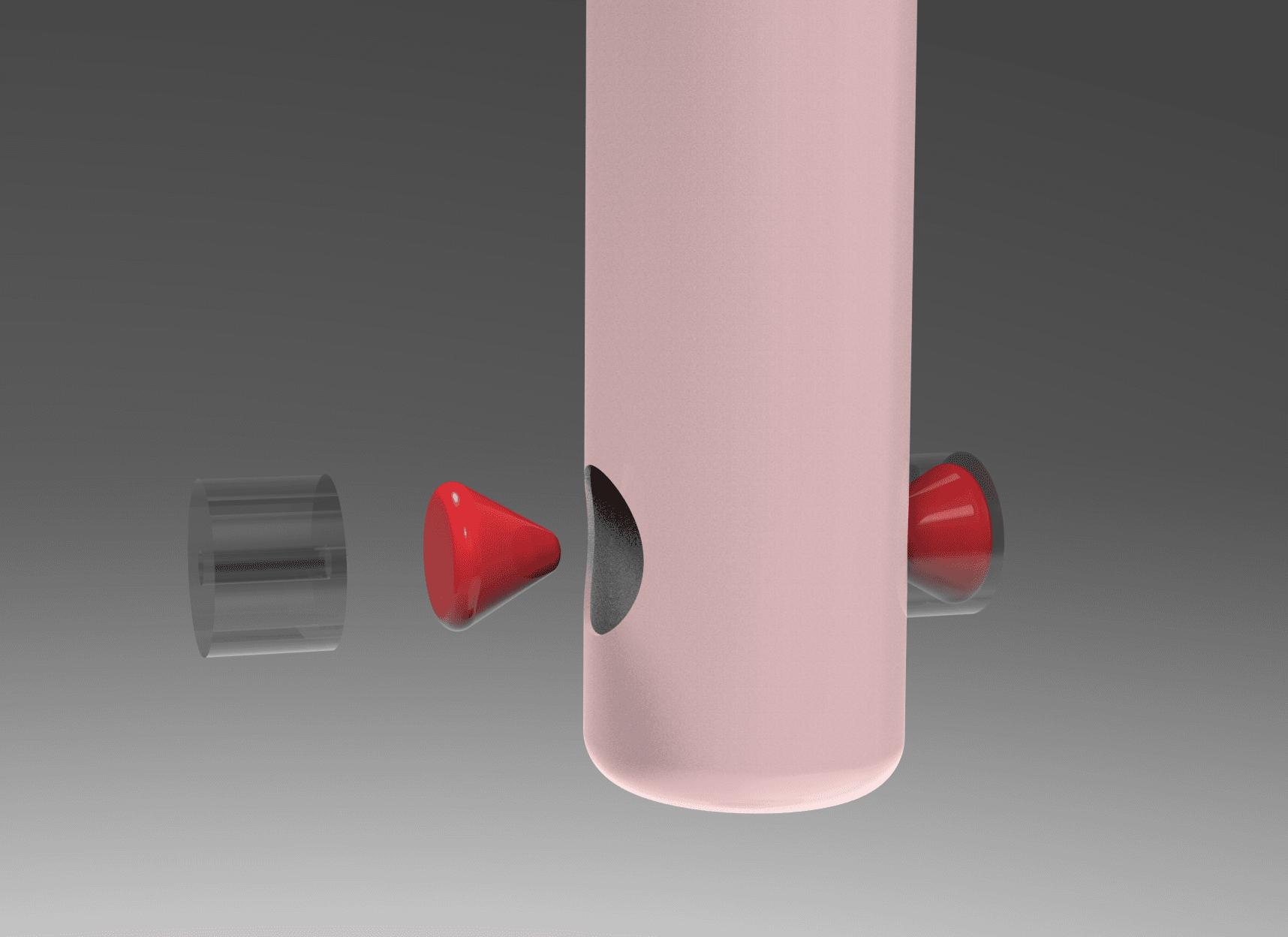

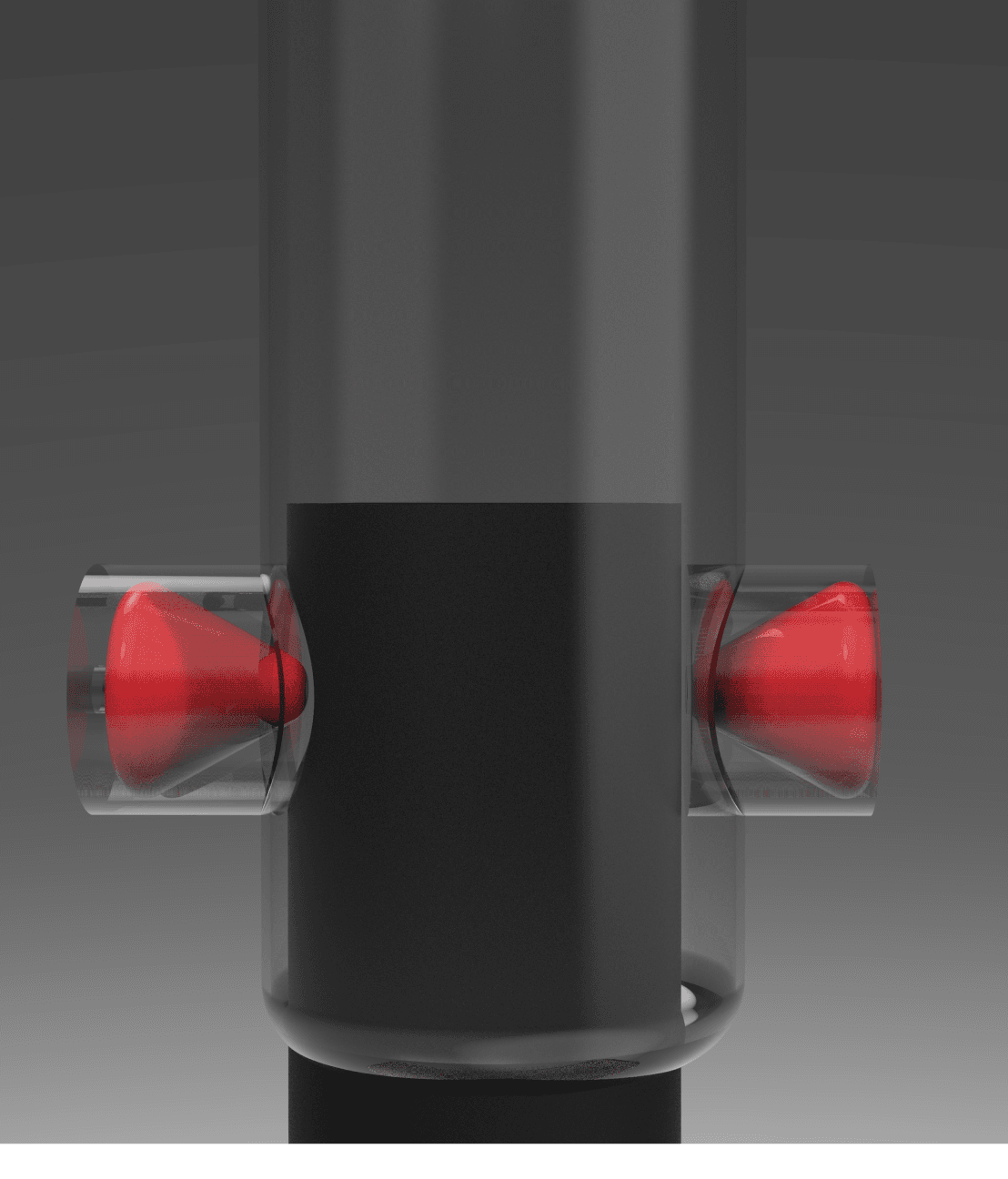

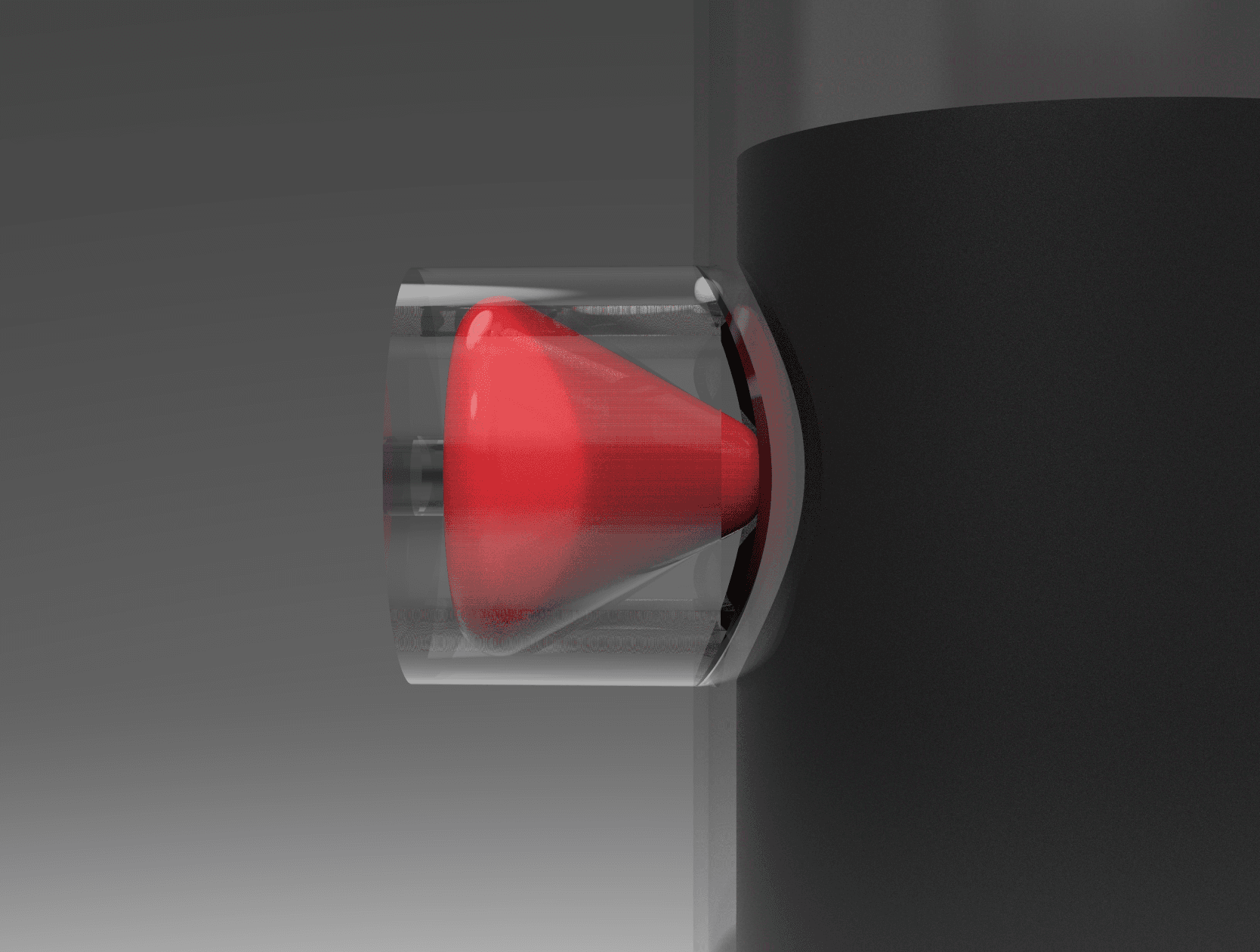

No return valves
No return valves
Air pressure control valve

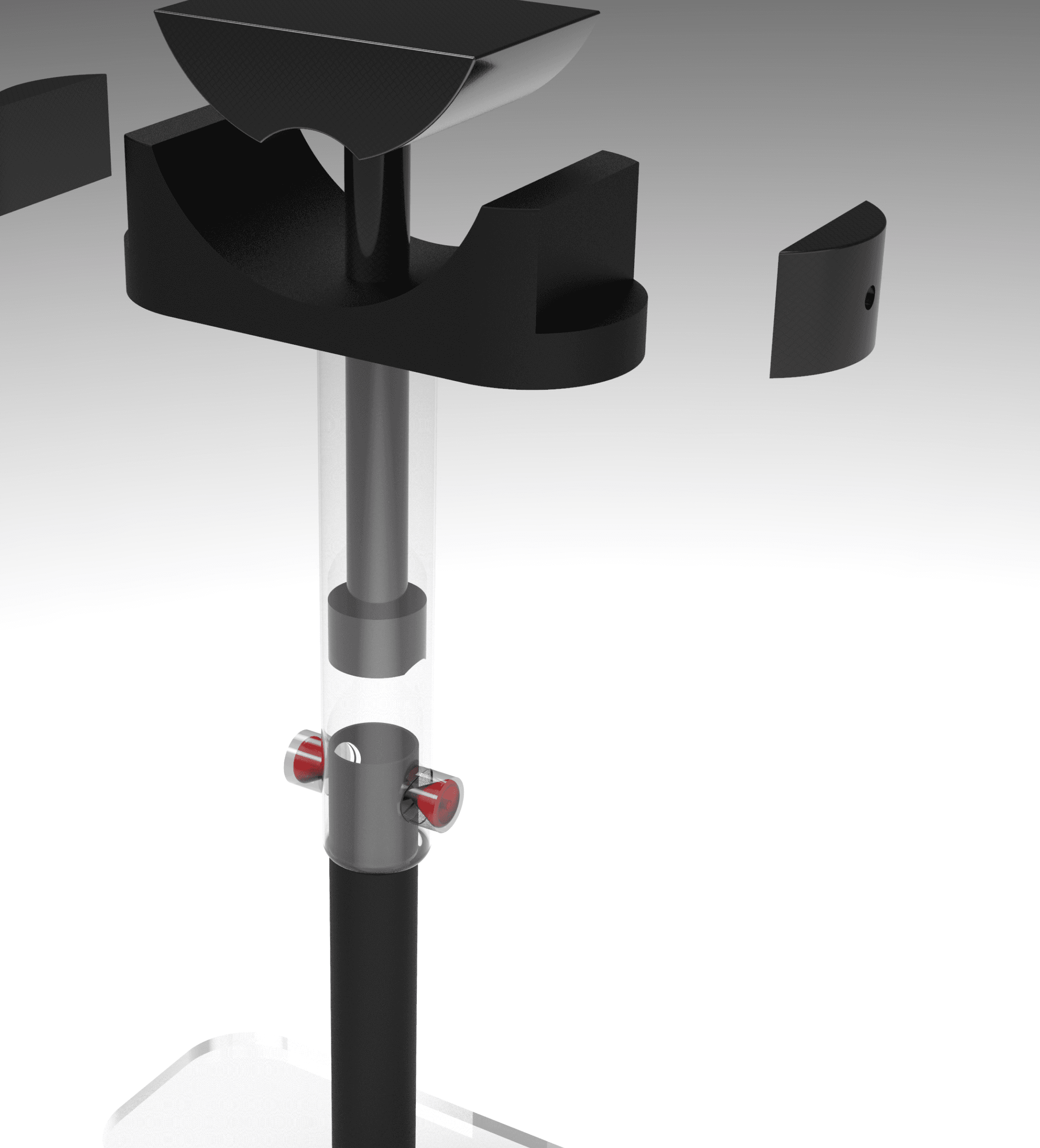

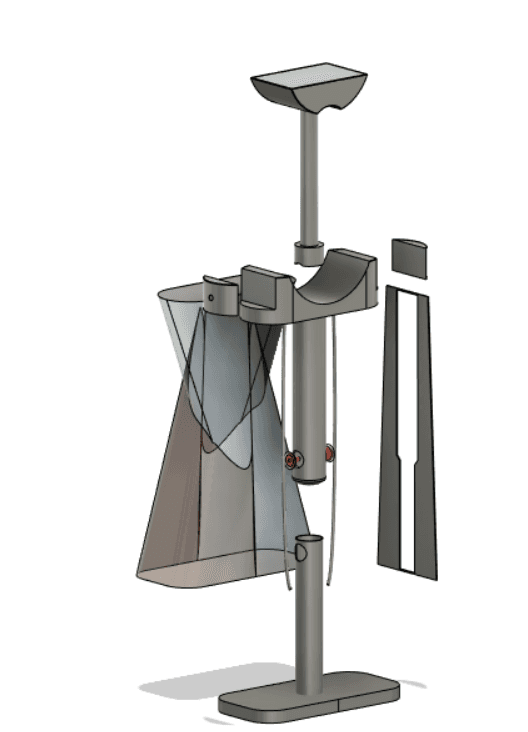

Assembly
Hand pump
Immersion
Ideation
Solution
Industrial Design
Everyday science
Applied science
Personal Project | 3 weeks | Sem 6
Design Brief:
Develop a user-friendly, portable makeup applicator tailored for frequent self-application, emphasizing ease of use and convenience. The design should accommodate the preferences of users who regularly apply makeup on the go, ensuring a seamless and efficient application experience
A Portable pump pressurized spray
Infiritz
Inconvenience of air brush makeup?
Solution?
Heavy
Enlarged
Expensive
Scattered
Inconvenient
Hard to clean
Makeup for frequent performing artists?
Messy
Unprofessional
Wasteful
Space consuming
Expensive
Time consuming
Portable pressurized spray.
Portable Air brush.
Professional results.
2 compartments.
Supports all liquids.
Wide application.
Cost effective.
How will it work?
Final mechanism

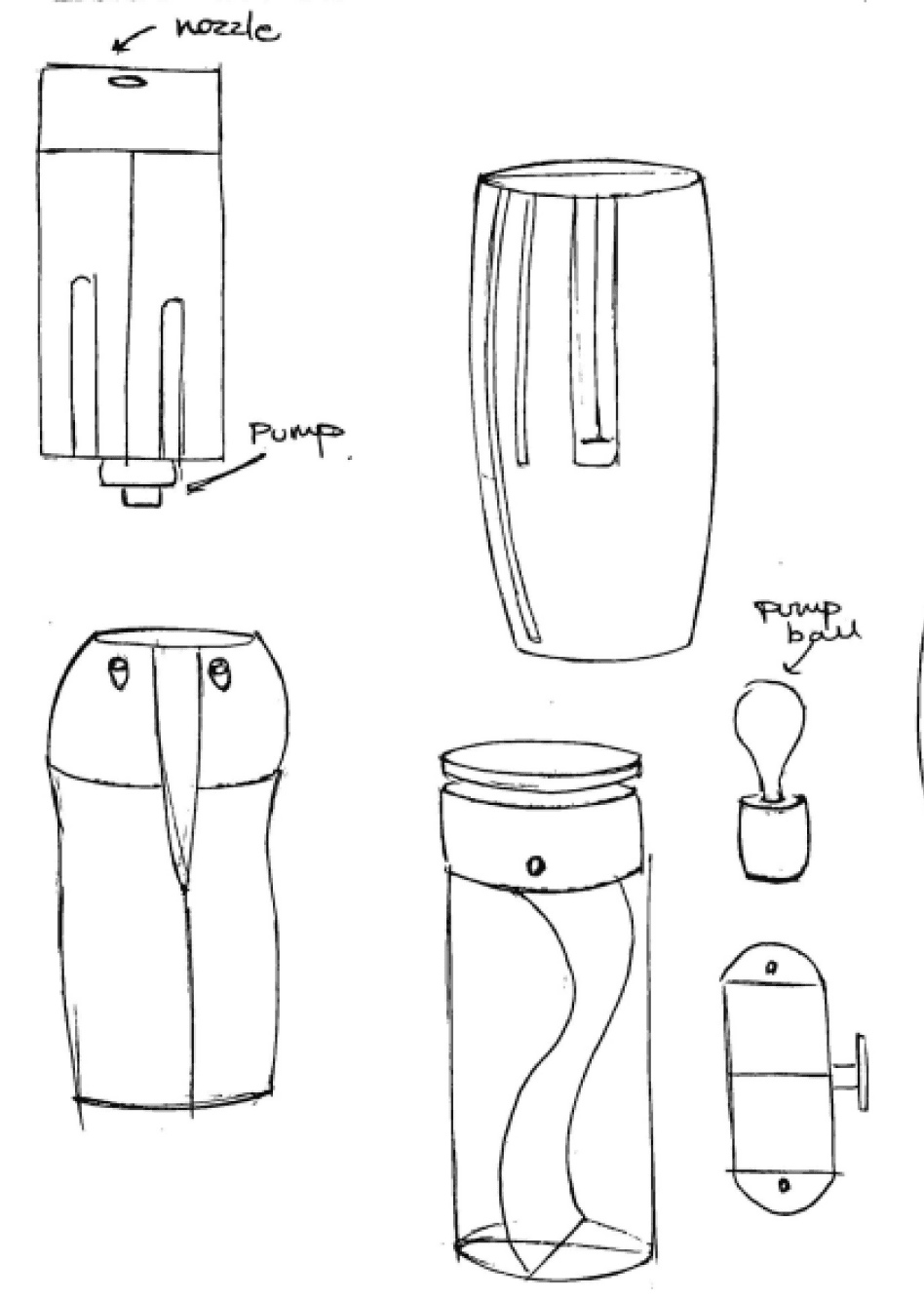

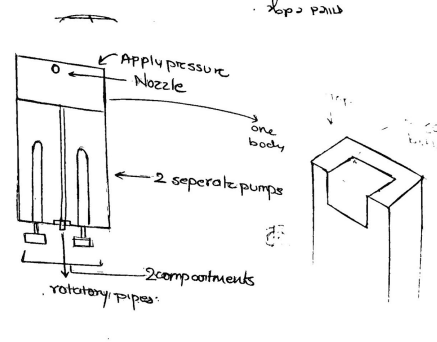

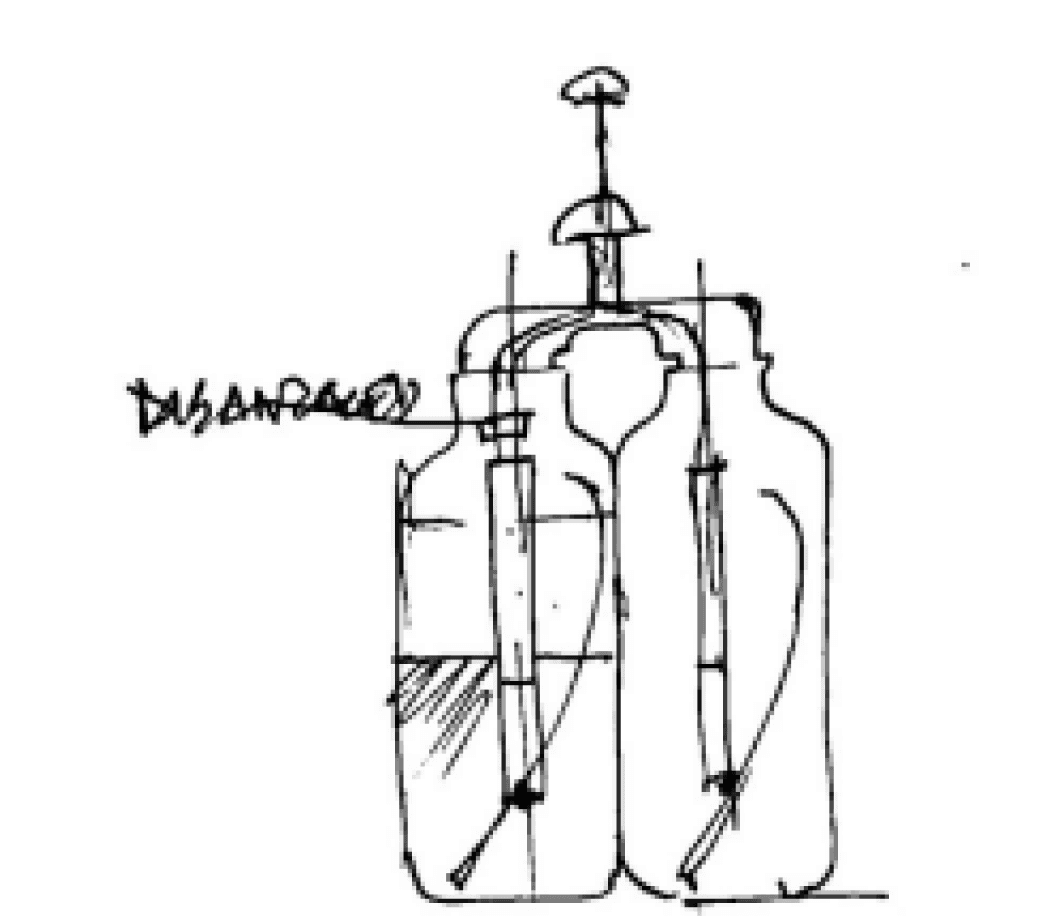

Ideating Arrangements
Container 1
Container 2
Out put nozzle
Out put nozzle
No return valve
No return valve
Air pressure control valve
Air pump

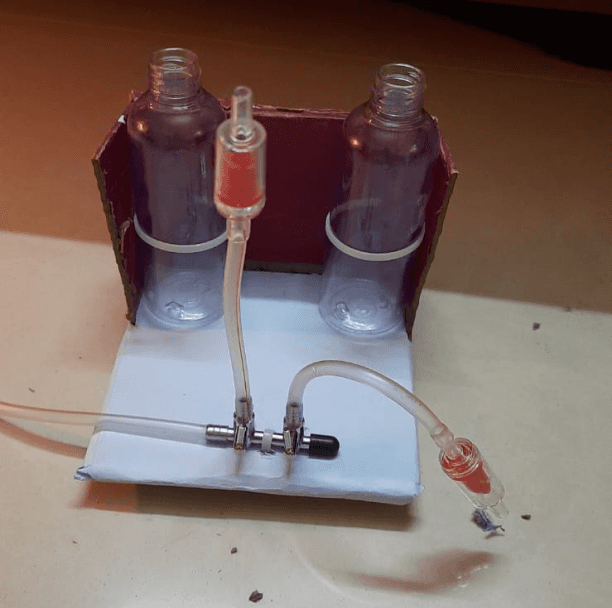

Final mechanism

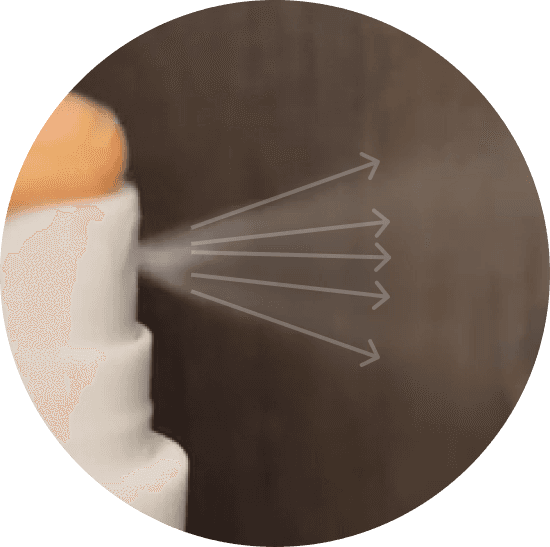

Spray from pressurized container is more powerful and is even.
Amount of pressure helps control the range and amount of spray.
The product will not work without no return valves.

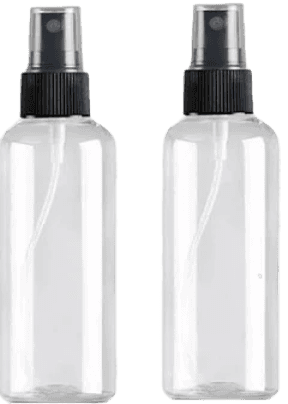

The spray of the normal container is un even and inconsistent.
It has smaller range.
Control is needed where air pressure goes , this is because different fluids have different density.

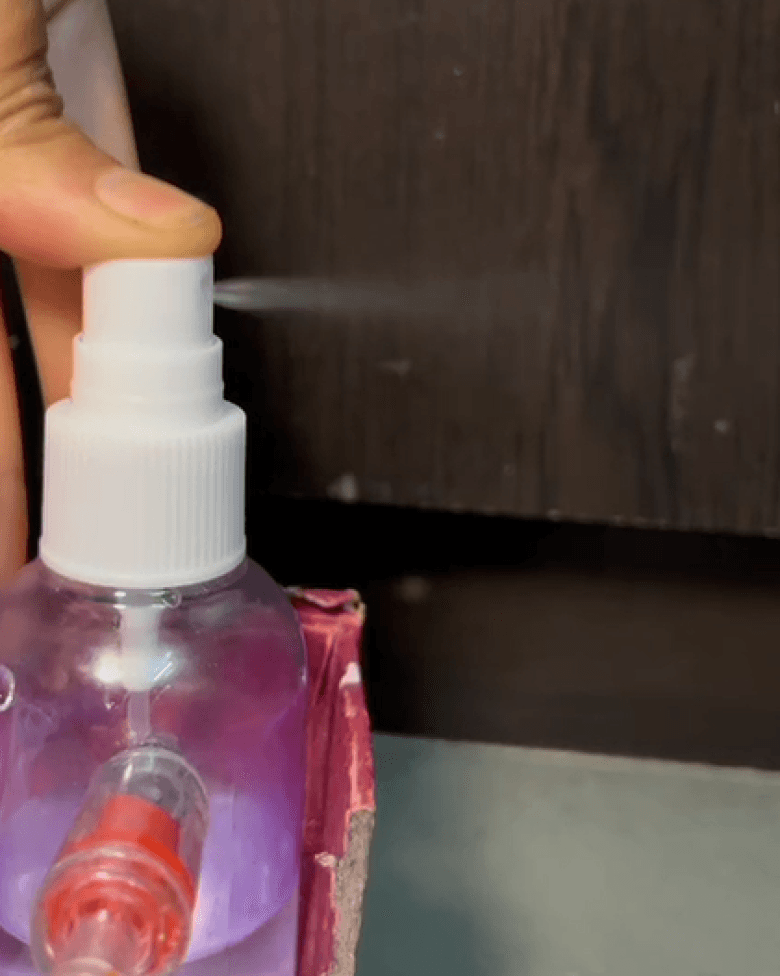

Container without pressure
Container with pressure

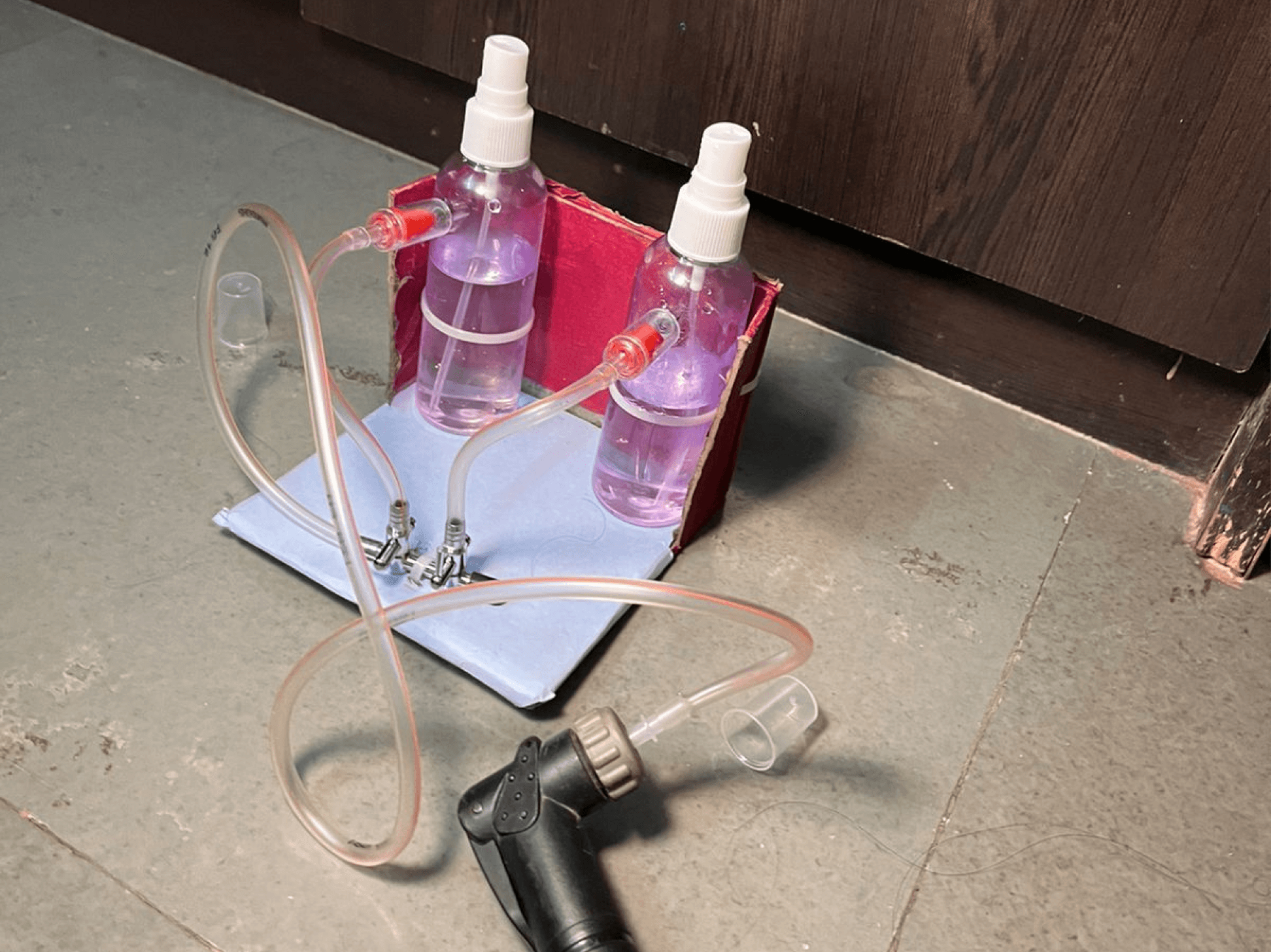

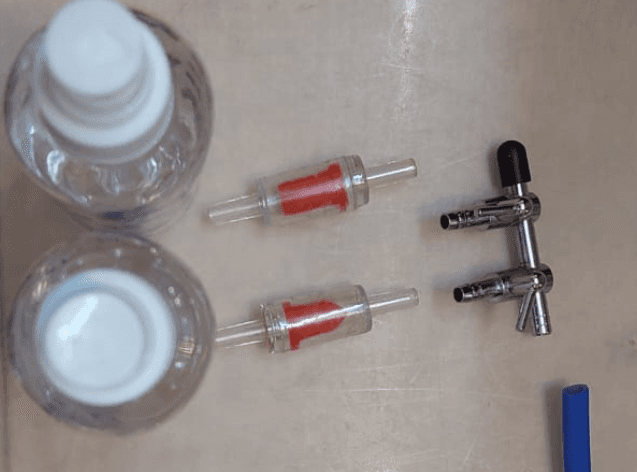

Proof of concept!

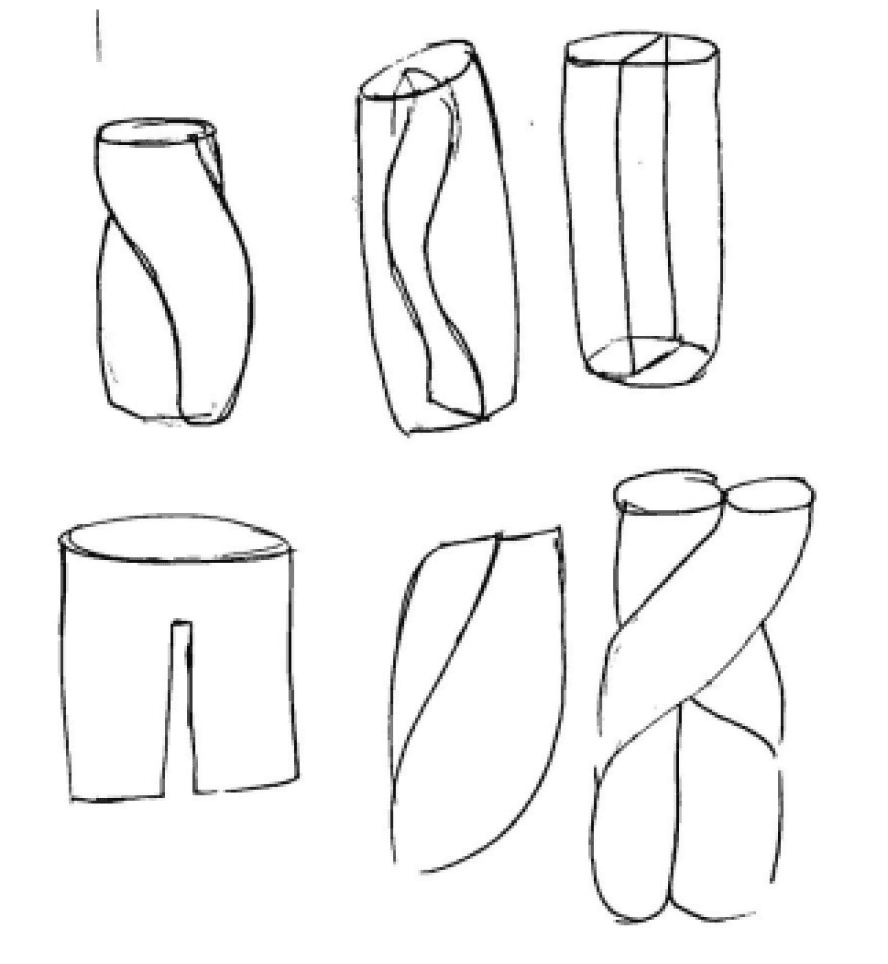

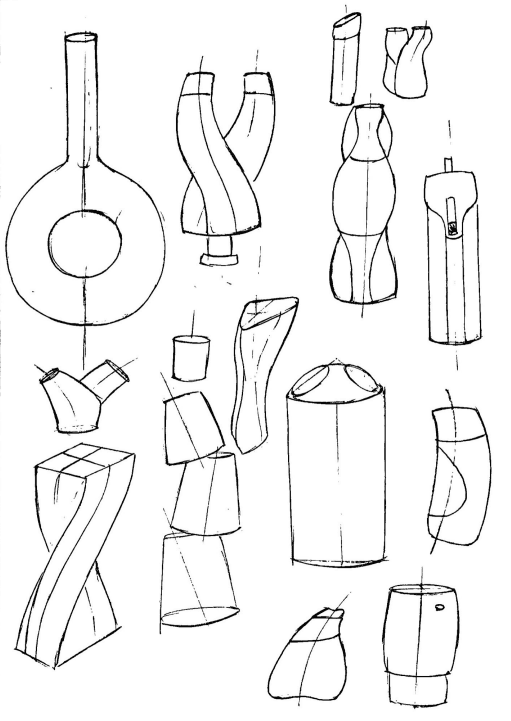

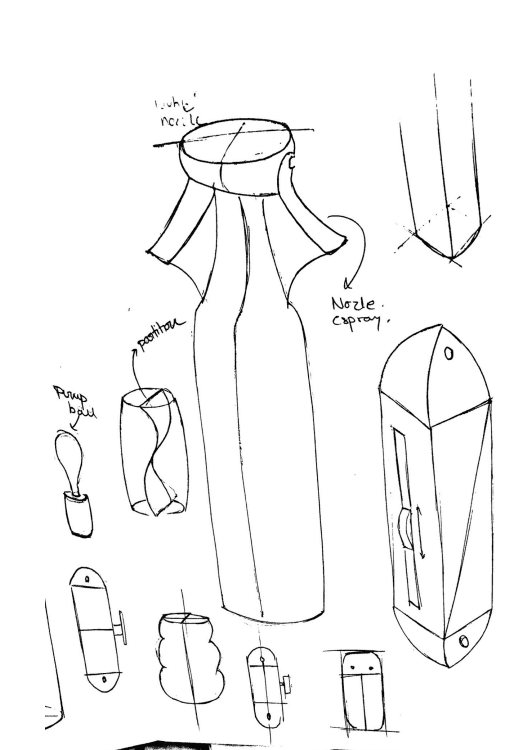

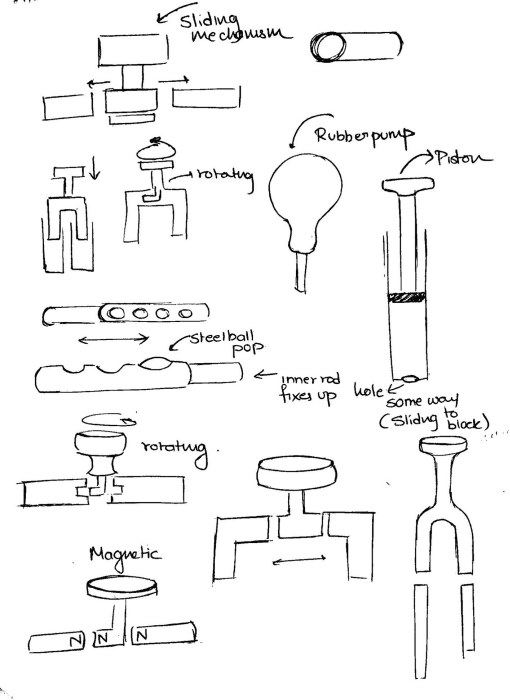

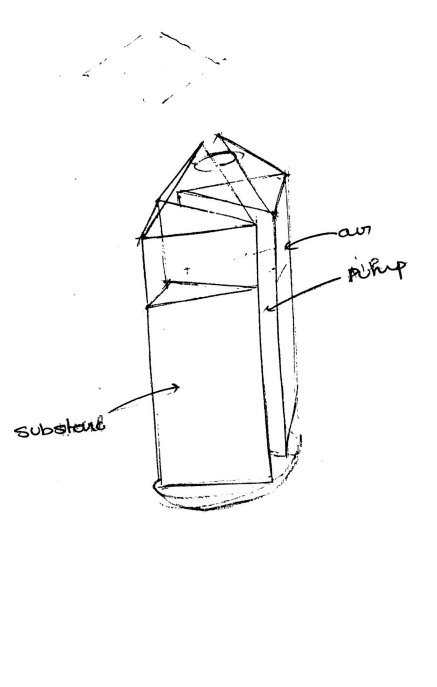

Structure and form exploration

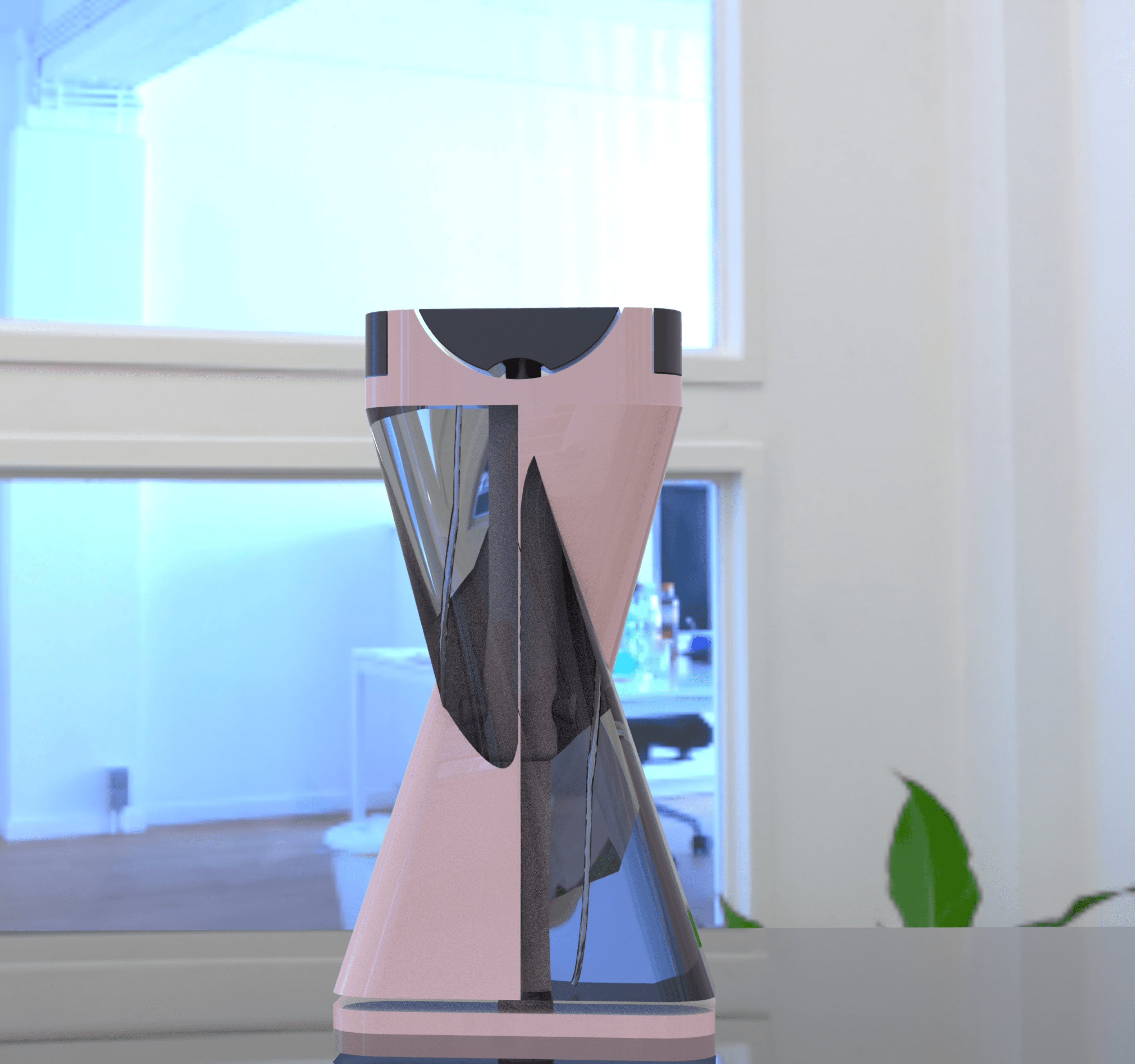

How will it look?
Helps with even application of make up with the help of pressurized system.
Open up snap fit cap
Pour in required fluid
Rotate pressure valve to where pressure is increased
Press nozzle for even pressurized spray

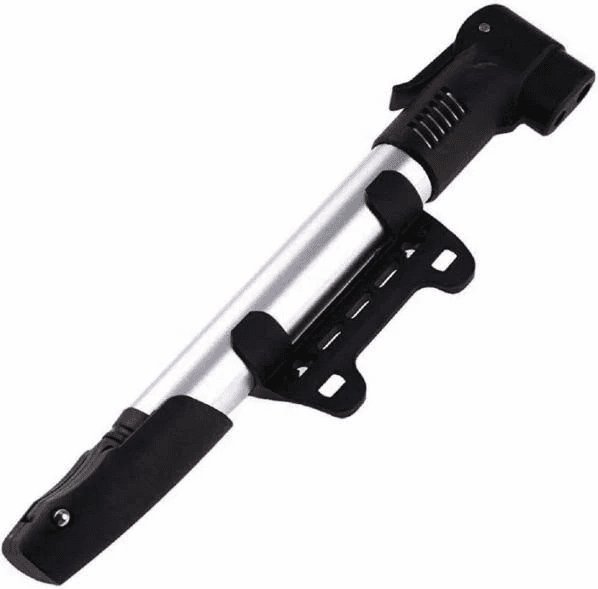

Use hand pump to increase pressure
How will it work?
